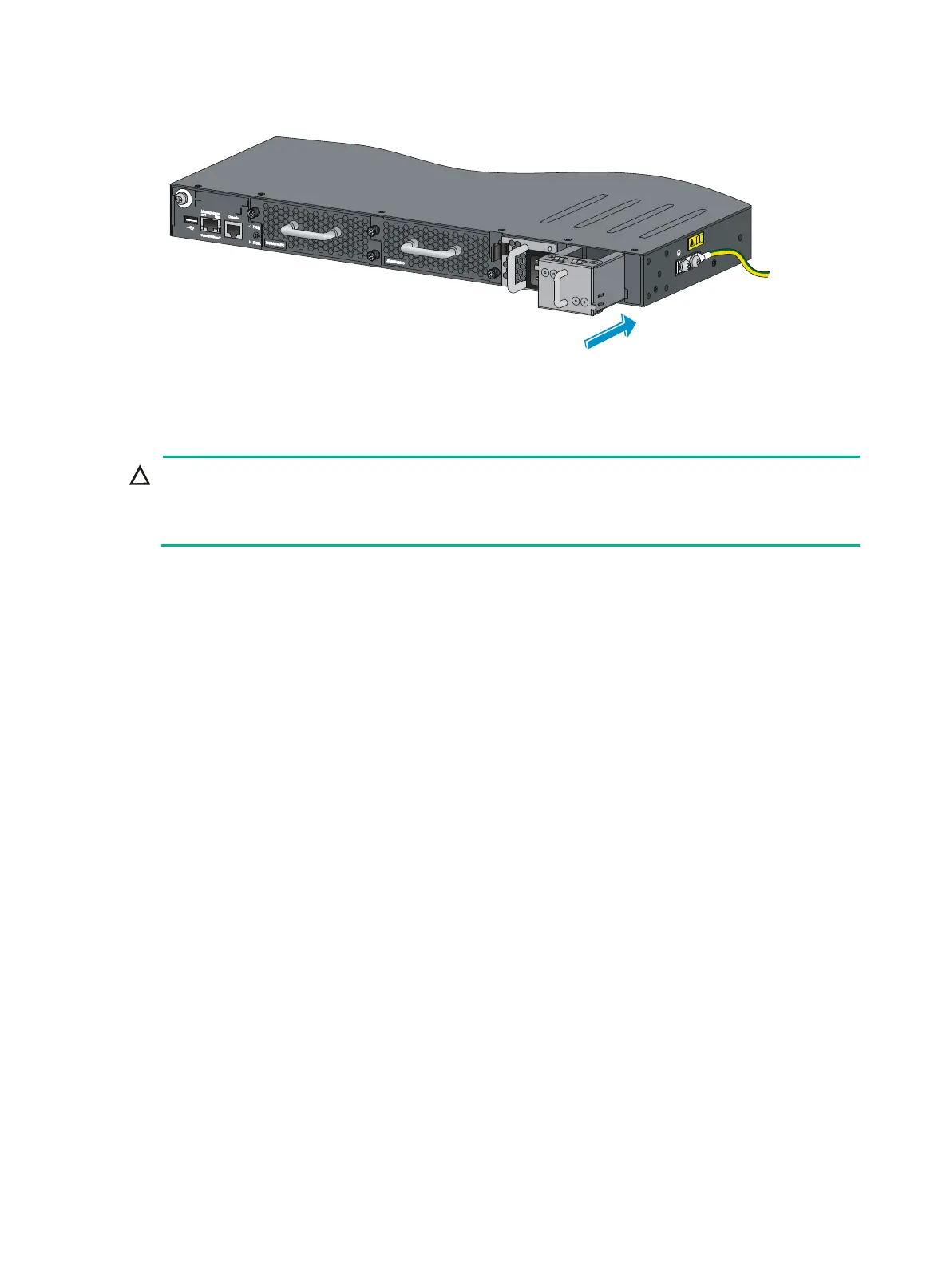

Figure 20 Installing a power filler module
Removing a power module
CAUTION:
If the switch has two power modules, removing one power module does not affect the operation of
the switch. If the switch has only one power module, removing the power module powers off the
switch.
To remove an LSVM1AC650, LSVM1DC650, LSVM1AC300, or LSVM1DC300 power module from
the switch:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Squeeze the tabs on the power cord connector with your thumb and forefinger, and pull the
connector out to remove the power cord, as shown in Figure 21.
3. Hold th
e handle on the power module with one hand, pivot the latch on the power module to the
right with your thumb, and pull the power module part way out of the slot, as shown in Figure 22.
4. Suppo
rting the power module bottom with one hand, slowly pull the power module out with the
other hand.
5. Put away the removed power module in an antistatic bag for future use.
