S5820V2-52QF-U

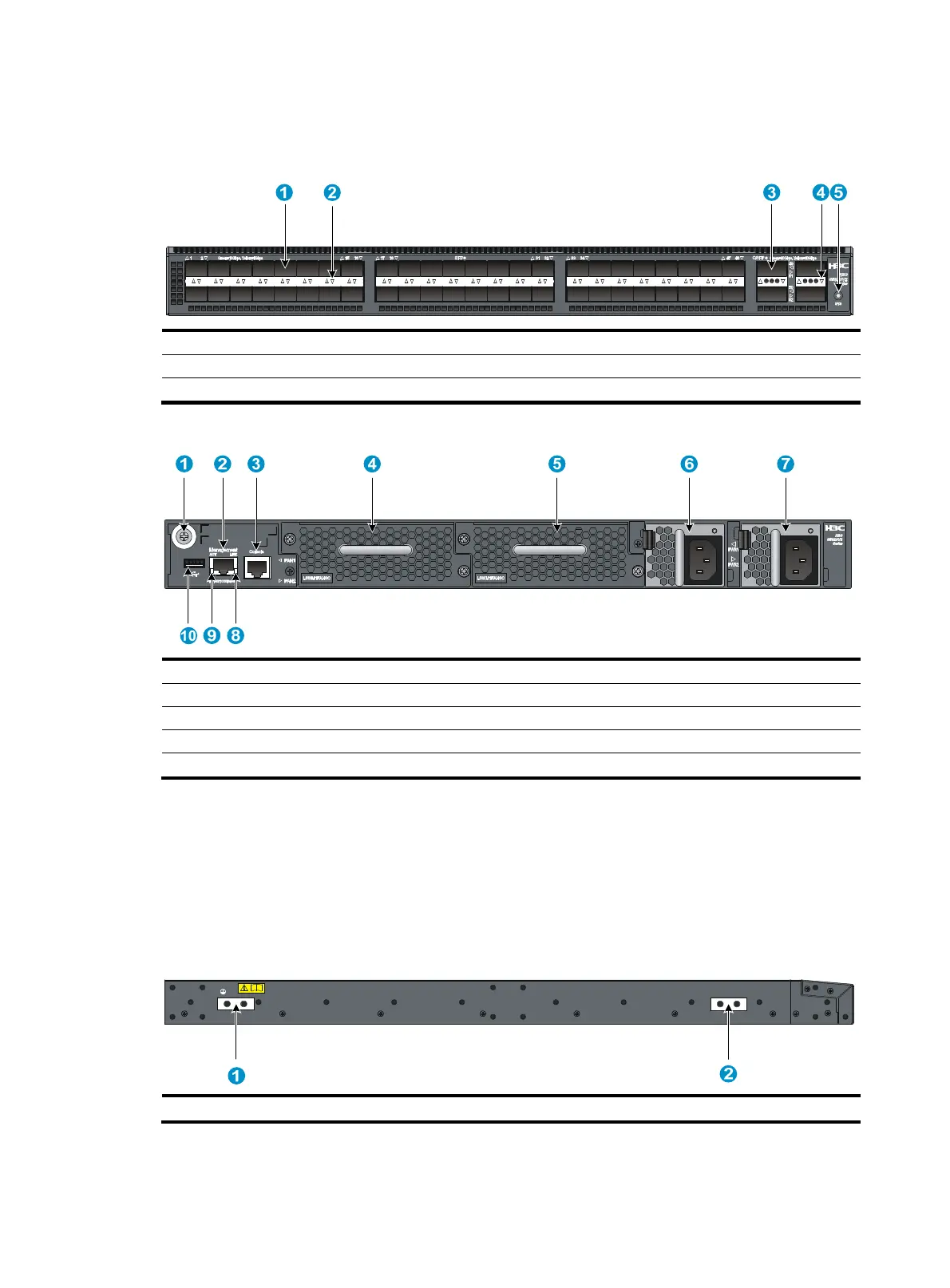

Figure 44 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) QSFP+ port (4) QSFP+ port LED
(5) System status LED (SYS)
Figure 45 Rear panel
(1) Grounding screw (Auxiliary grounding point 2) (2) Management Ethernet port
(3) Console port (4) Fan tray slot 1
(5) Fan tray slot 2 (6) Power module slot 1
(7) Power module slot 2 (8) LINK LED for the management Ethernet port
(9) ACT LED for the management Ethernet port (10) USB port
The S5820V2-52QF-U switch comes with the power module slots empty and the filler modules for
the slots as accessories. You can install one or two power modules for the switch as needed.
In Figure 45,
two LSVM1AC650 power modules are installed. For more information about installing
and removing a power module, see "Installing/removing a power module."
The S5820V2-52QF switch also comes with the fan tray slots empty. You must install two fan trays of
the same model for the switch. In Figure 45, two LS
WM1FANSC fan trays are installed. For more
information about installing and removing a fan tray, see "Installing/removing a fan tray."
Figure 46
Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1
