The S5820V2-48S switch comes with the power module slots empty and the filler modules for the
slots as accessories. You can install one or two power modules for the switch as needed. In Figure
37, two LSV
M1AC300 power modules are installed. For more information about installing and
removing a power module, see "Installing/removing a power module."
The S582
0V2-48S switch also comes with the fan tray slots empty. You must install two fan trays of
the same model for the switch. In Figure 37, two LS
WM1FANSC fan trays are installed. For more
information about installing and removing a fan tray, see "Installing/removing a fan tray."

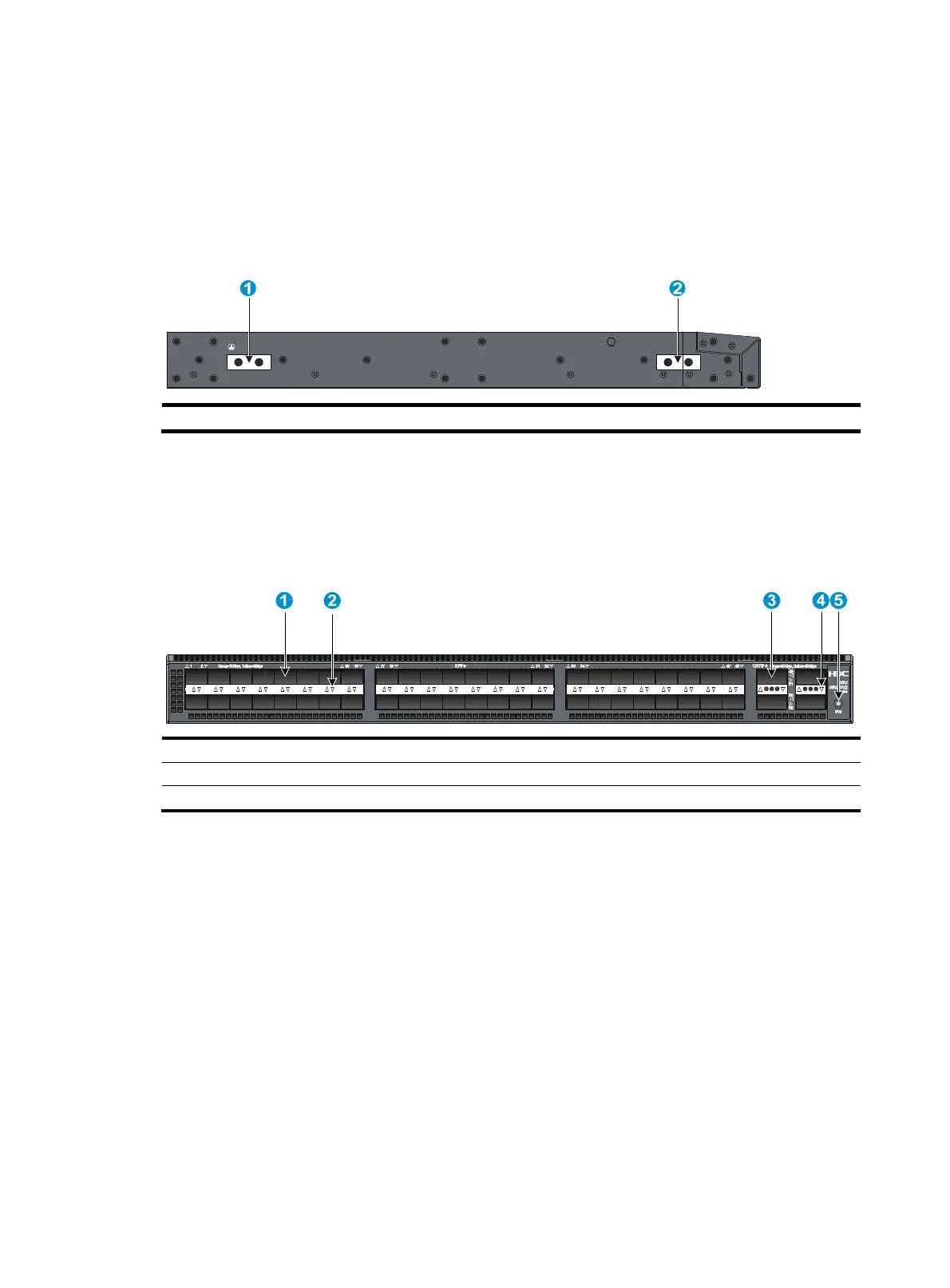

Figure 38
Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1
S5820V2-52QF
The S5820V2-52QF switch has three models: LS-5820V2-52QF, LS-5820V2-52QF-H3, and
LS-5820V2-52QF-H5.
Figure 39 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) QSFP+ port (4) QSFP+ port LED
(5) System status LED (SYS)
