6
NOTE:
For the
Intel® Virtual RAID on CPU option to appear on the screen shown in Figure 6
, make
sure the VMD controllers have been enabled.

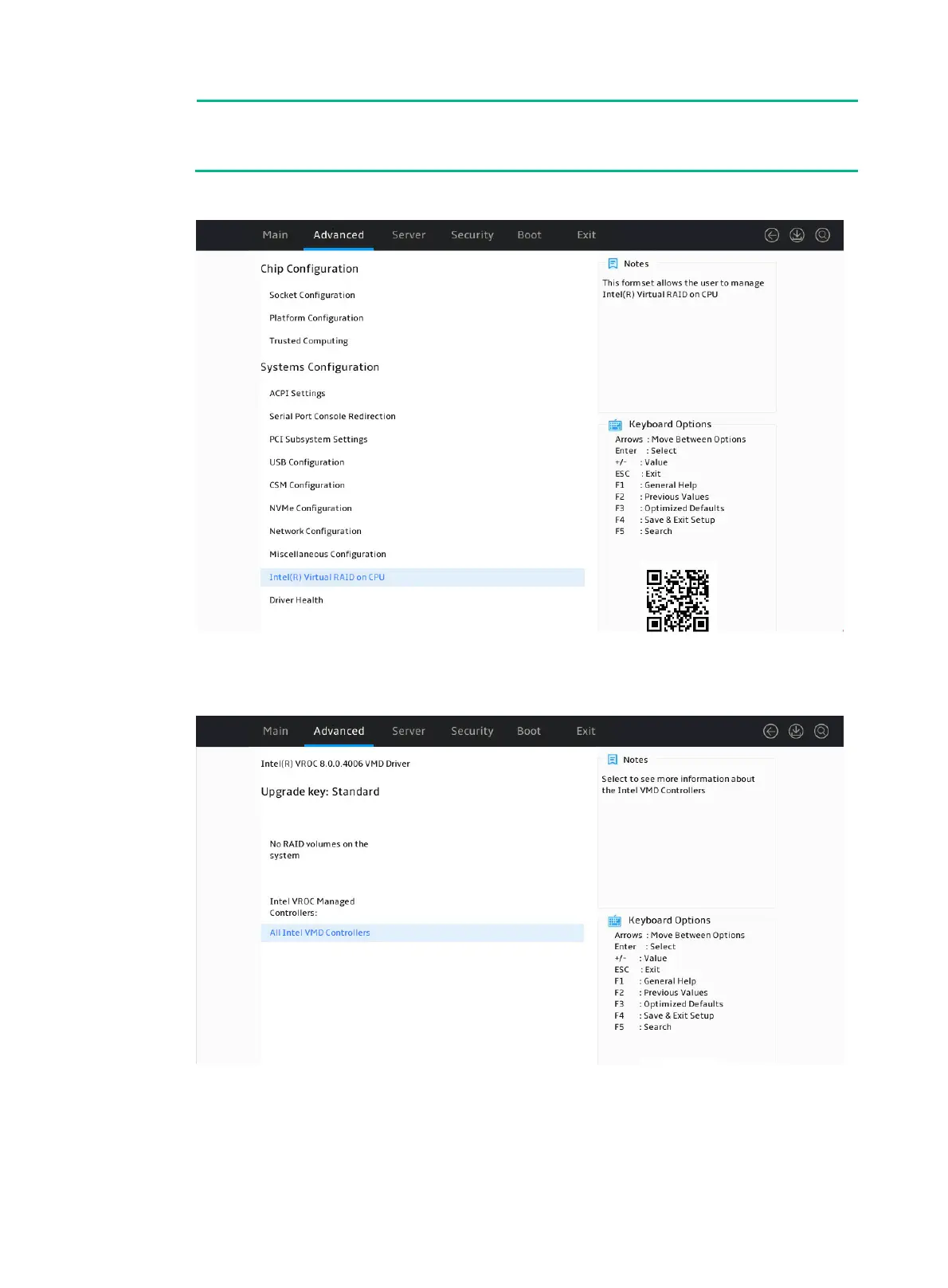

Figure 6 Advanced screen
3. On the screen as shown in Figure 7, select All Intel VMD Controllers, and then press Enter.
Figure 7 RAID summary screen
The RAID configuration screen as shown in Figure 8 opens.
