15
DIMM slots
The system board and processor mezzanine board each provide eight DIMM channels per
processor, and 16 channels in total, as shown in Figure 10. Each channel contains two DIMM slots.

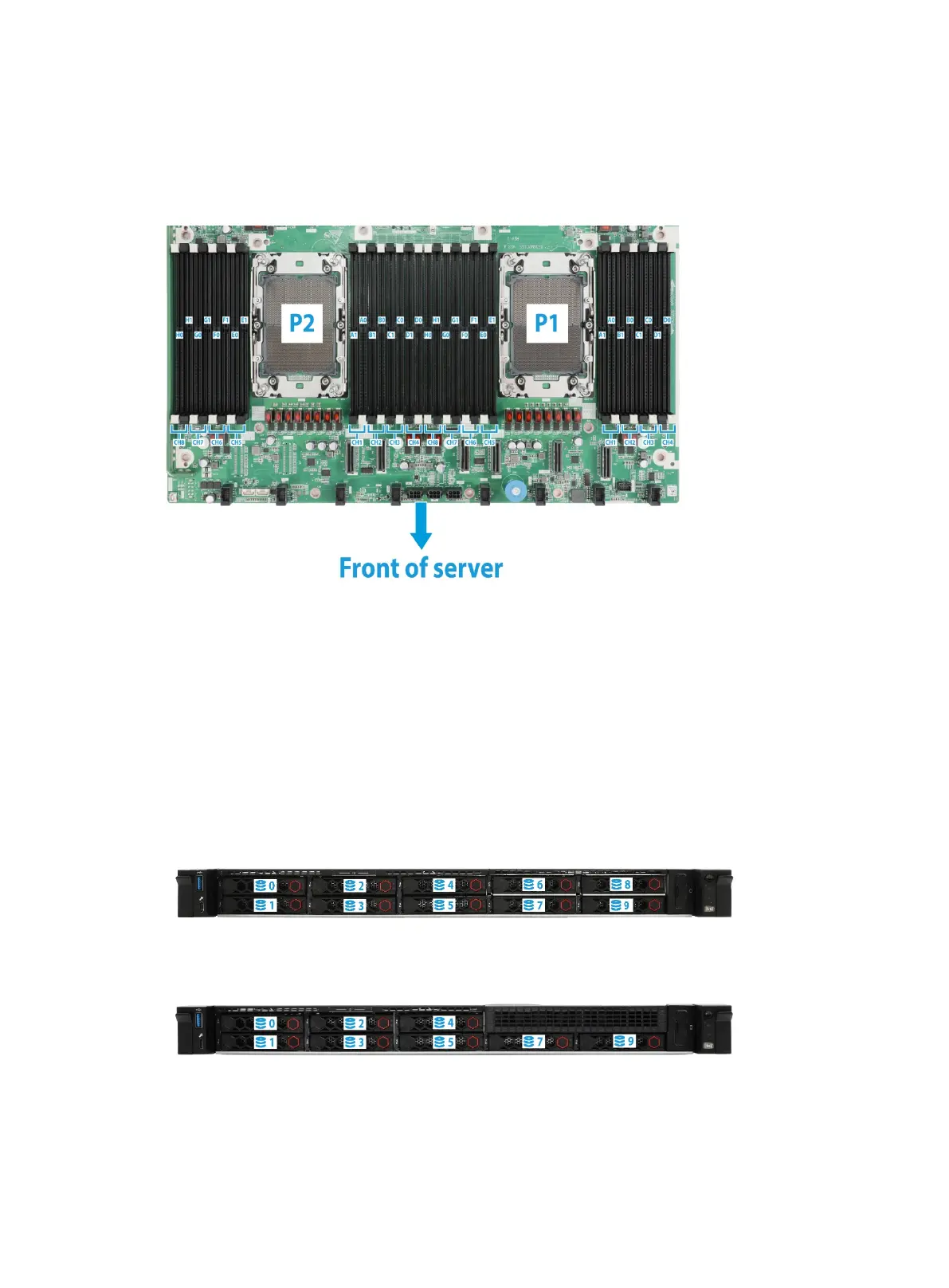

Figure 10 System board DIMM slot layout
HDDs and SSDs
Drive numbering
The server provides different drive numbering schemes for different drive configurations at the
server front and rear, as shown in Figure 11 through Figure 15.
For the correspondence between the drive numbering of physical drives on the server and the dirve
numbering on HDM or BIOS, see the server user guide.
Figure 11 Drive numbering for front 10SFF drive configurations
Figure 12 Drive numbering for front 8SFF drive configurations
