H3C UniServer R4700 G6 User Manual

21

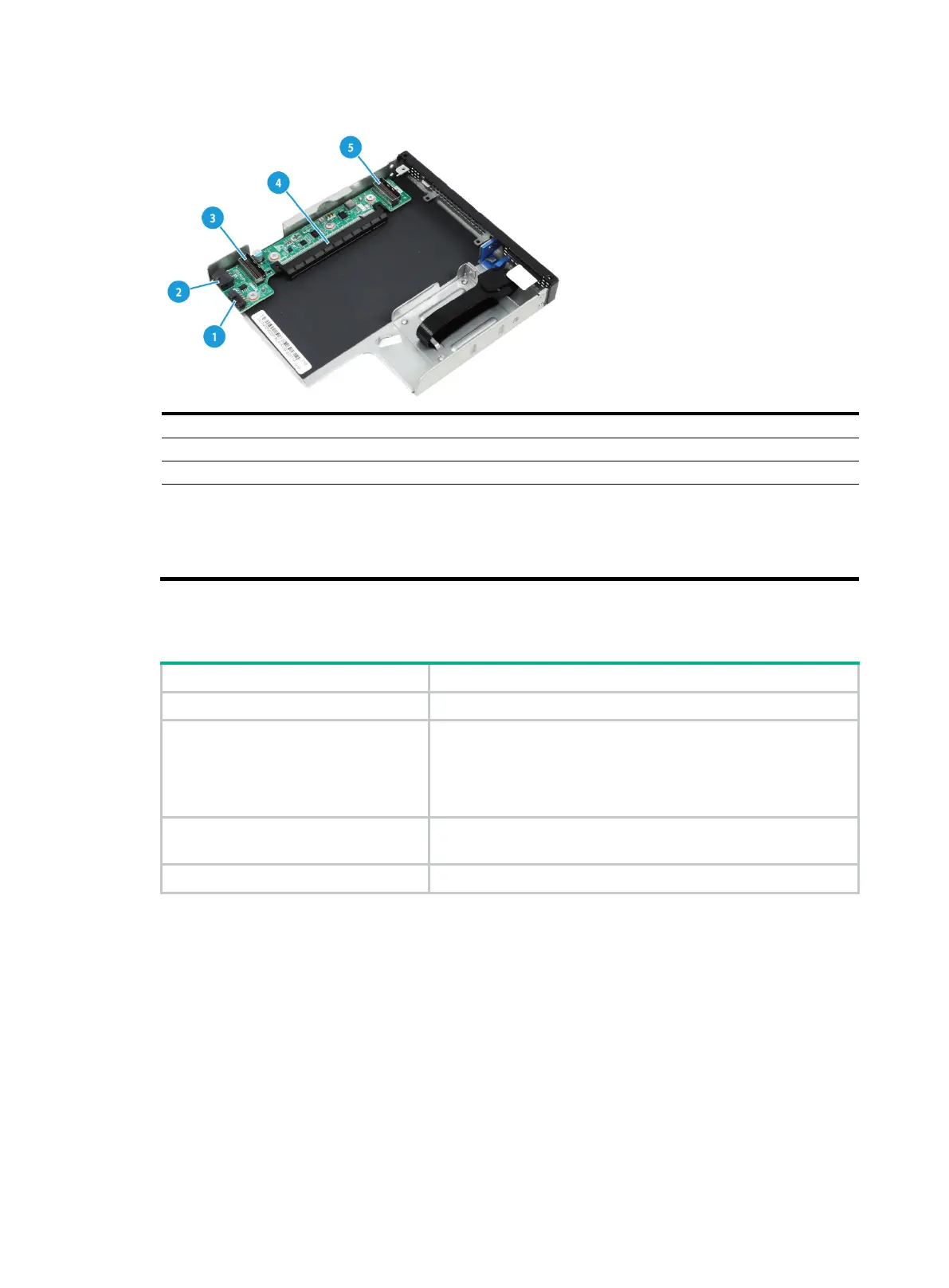

Figure 23 RC-1HHHL-R4-1U-X16-G5 riser card
(1) GPU module power connector
(2) AUX connector
(3) SlimSAS connector 1
(4) PCIe slot 4
(5) SlimSAS connector 2
PCIe4.0 x16 (16,8,4,2,1) description:
• PCIe4.0: Fourth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
RC-2FHFL-1U-SW-G6
Item
Specifications
PCIe riser connector Connector 1
PCIe slots
Slot 1: PCIe5.0 ×16 (16, 8, 4, 2, 1) for processor 1
Slot 2: PCIe5.0 ×16 (16, 8, 4, 2, 1) for processor 1
NOTE:
The numbers in parentheses represent supported link widths.
Form factors of PCIe modules
• LP
• FHFL
Maximum power supplied per PCIe slot 75 W
