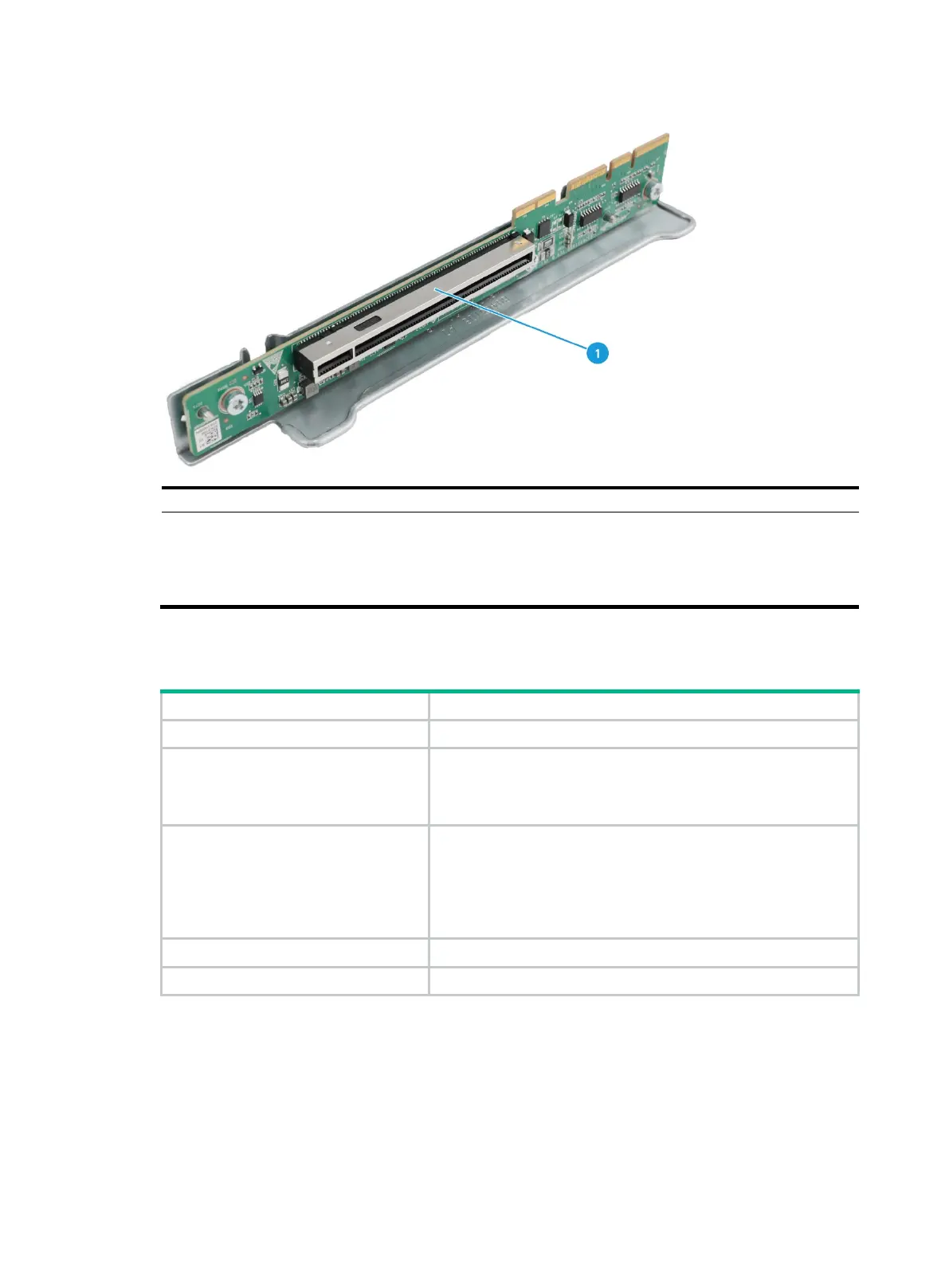

Figure 22 RC-1HHHL-R3-1U-SW-G6
(1) PCIe slot 3
PCIe5.0 x16 (16,8,4,2,1) description:
PCIe5.0: Fifth-generation signal speed.
x16: Connector bandwidth.
(16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
RC-1HHHL-R4-1U-X16-G5
Item
Specifications
PCIe riser connector Connector 4 at the front
PCIe slots
Slot 4: PCIe4.0 ×16 (8, 4, 2, 1) for processor 1
NOTE:
The numbers in parentheses represent supported link widths.
SlimSAS connectors
SlimSAS port 1 (x8 SlimSAS port, connected to MCIO
connector C1-P3A on the system board) for processor 1,
providing an x16 PCIe link for slot 4
SlimSAS port 2 (x8 SlimSAS port, connected to MCIO
connector C1-P3C on the system board) for processor 1,
providing an x16 PCIe link for slot 4
Form factors of PCIe modules HHHL
Maximum power supplied per PCIe slot N/A
