System board
System board components

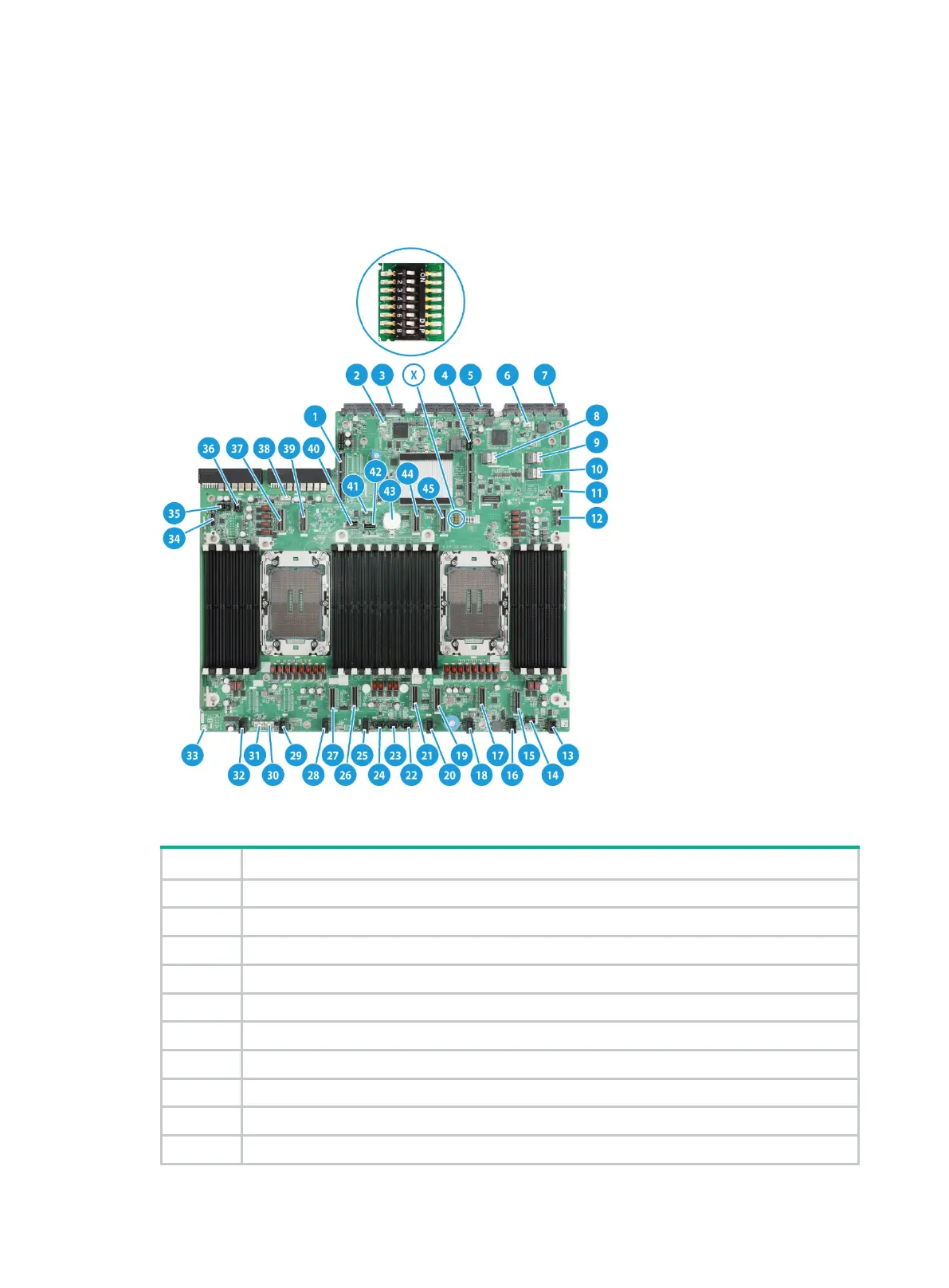

Figure 8 System board components
Table 9 System board components
No.
Description
1 PCIe riser connector 3 (for processor 2)(RISER3 PCIe X16)
2 Fan connector 2 for the OCP 3.0 network adapter
3 OCP 3.0 network adapter slot 2/Serial & DSD module slot (OCP2&DSD&UART CARD)
4 PCIe riser connector 1 (for processor 1)(RISER1 PCIe X16)
5 Server management module slot (BMC)
6 Fan connector 1 for the OCP 3.0 network adapter (OCP1 FAN)
7
OCP 3.0 network adapter slot 1 (OCP1)
8 SlimSAS connector 3 (x4 SATA)(SATA PORT3)
9 SlimSAS connector 2 (x4 SATA)(SATA PORT2)
10 SlimSAS connector 1 (x4 SATA or M.2 SSD)(M.2&SATA PORT1)
