H3C UniServer R4700 G6 User Manual

7
Front panel

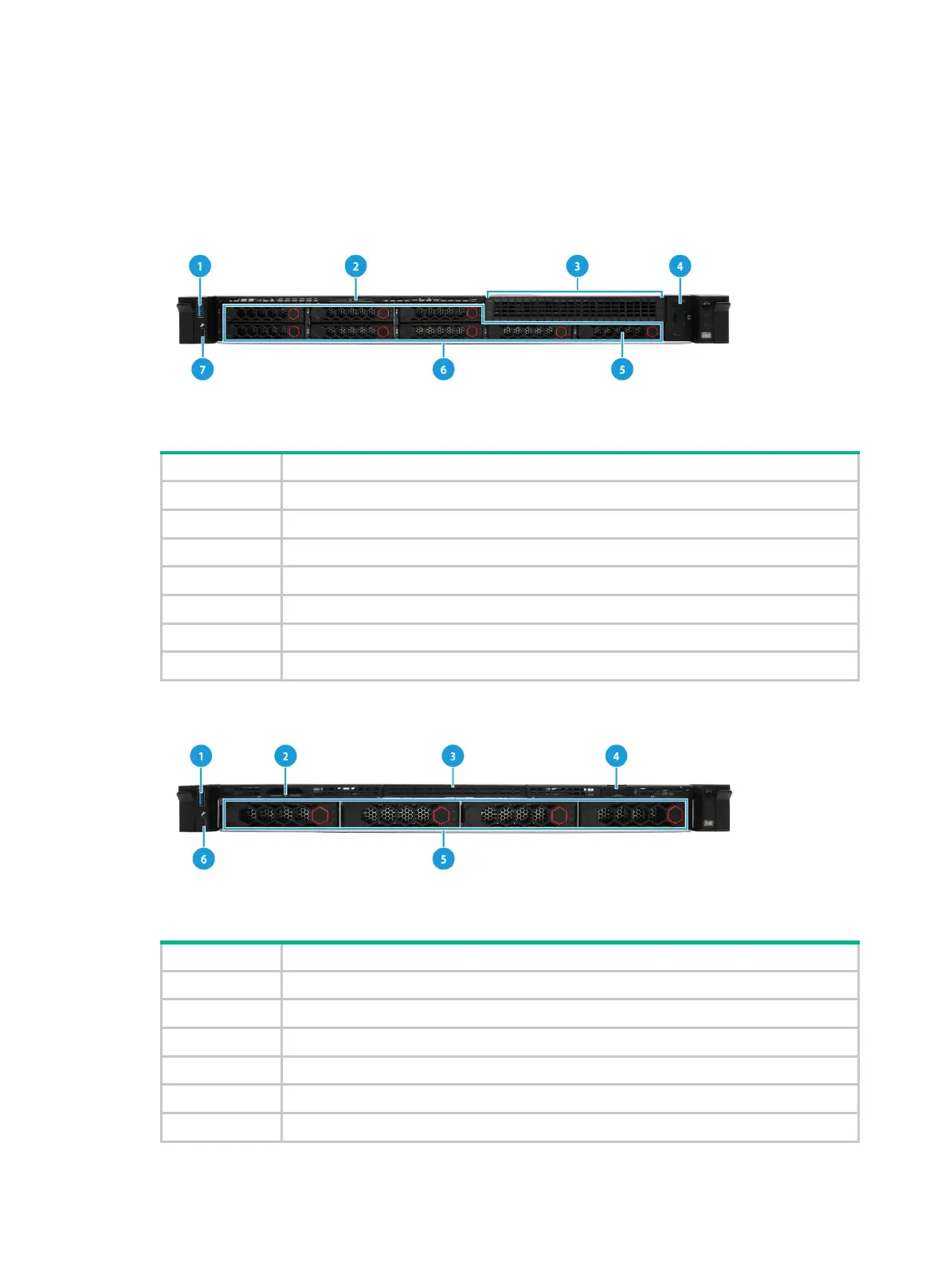

Front panel view of the server
Figure 2 8SFF front panel
Table 1 8SFF front panel description
Item
Description
1 USB 2.0 connector
2
Serial label pull tab
3 2SFF drives or PCIe modules and a riser card on PCIe riser connector 4 (optional)
4 VGA module (supports one VGA connector) (optional)
5 Drives or LCD smart management module (optional)
6 8SFF drives
7 Dedicated management connector
Figure 3 4LFF front panel
Table 2 4LFF front panel description
Item
Description
1 USB 2.0 connector
2 Serial label pull tab
3 ODD blank
4 VGA module (supports one VGA connector)(optional)
5 4LFF drives
6 Dedicated management connector
