19
(1) SlimSAS connector A1/A2 (PCIe4.0 x8)(NVME-A1/A2)
(2) x4 Mini-SAS-HD connector (SAS PORT)
x8: Bus bandwidth.
Rear 2SFF UniBay drive backplane
The HDDCage-2UniBay-R-1U-G6 drive backplane can be installed at the server front to support
two 3.5-inch SAS/SATA/NVMe drives.

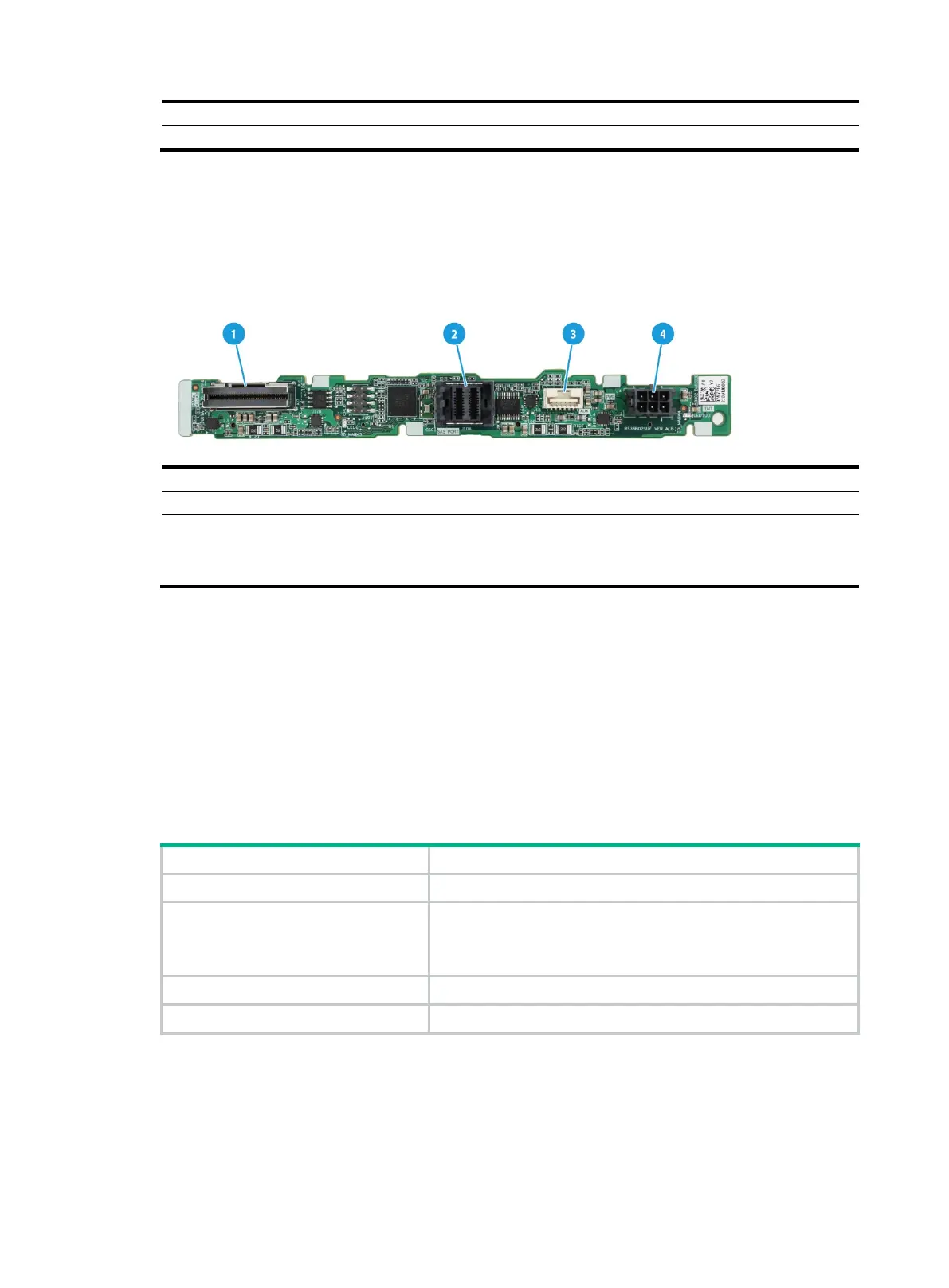

Figure 21 2SFF UniBay drive backplane
(1) SlimSAS connector A1/A2 (PCIe4.0 x8)(NVME-A1/A2)
(2) x4 Mini-SAS-HD connector (SAS PORT)
(3) AUX connector (AUX)
(4) Power connector (PWR)
PCIe4.0 x8 description:
PCIe4.0: Fourth-generation signal speed.
x8: Bus bandwidth.
Riser cards
The R4700 G6 supports the following riser card models:
RC-1HHHL-R3-1U-SW-G6
RC-1HHHL-R4-1U-X16-G5
RC-2FHFL-1U-SW-G6
RC-1HHHL-R3-1U-SW-G6
Item
Specifications
PCIe riser connector Connector 3
PCIe slots
Slot 3: PCIe5.0 ×16 (16, 8, 4, 2, 1) for processor 2
NOTE:
The numbers in parentheses represent supported link widths.
Form factors of PCIe modules HHHL
Maximum power supplied per PCIe slot 75 W
