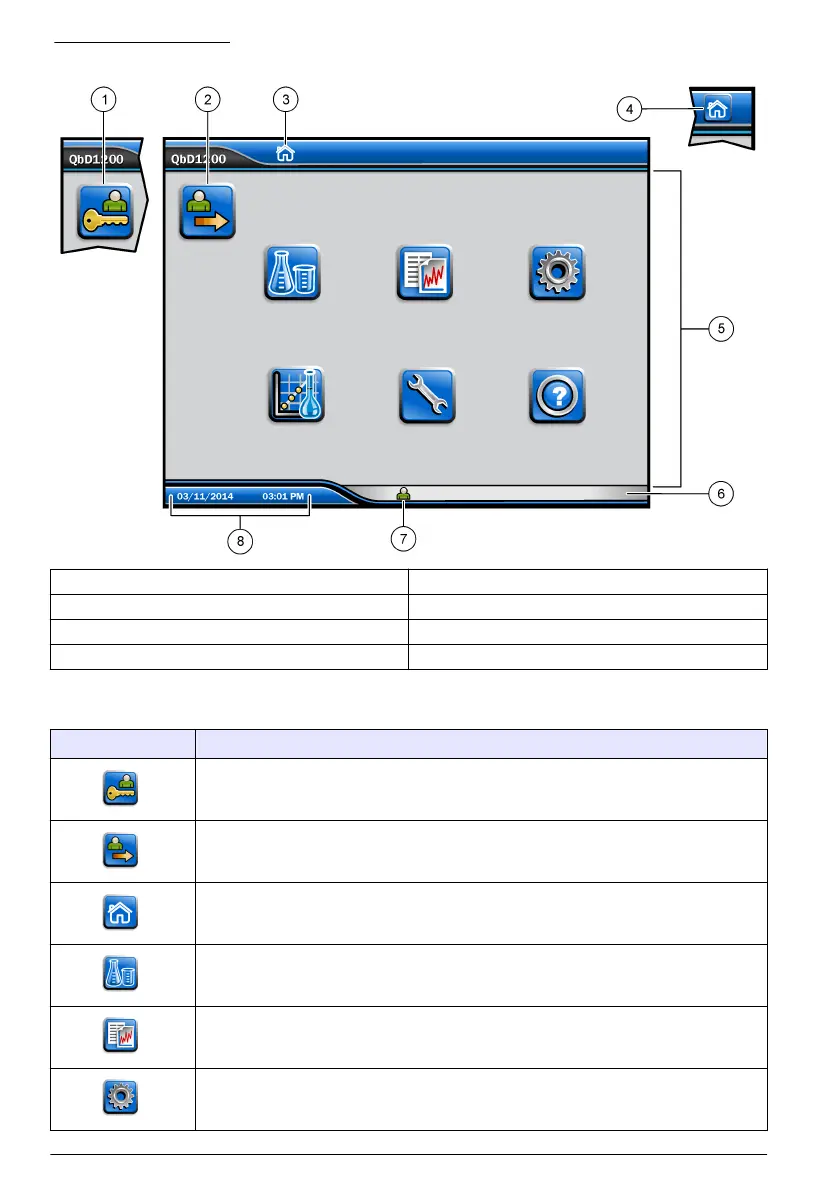

Figure 4 Home screen
1 Log in icon 5 Menu icons
2 Log out icon 6 System status bar
3 Menu identification icon
1
7 User status
4 Home icon 8 Date and time
1
The menu identification icon shows the current menu selection.
Table 1 Icon description
Icon Description
Goes to the log in screen.
Logs the user out of the system.
Goes to the home screen when the button is in the upper-right corner. The home icon
shows near the left side of the display when the home screen is on the display.
Makes a new tray, imports a tray from a USB flash drive, starts a pre-configured tray or
does a manual measurement.
Shows, selects and sends reports and instrument data.
Configures the instrument settings.
12 English
