Hach TU5400 - 3.2 Install the service bracket; 3.3 Install the automatic cleaning module

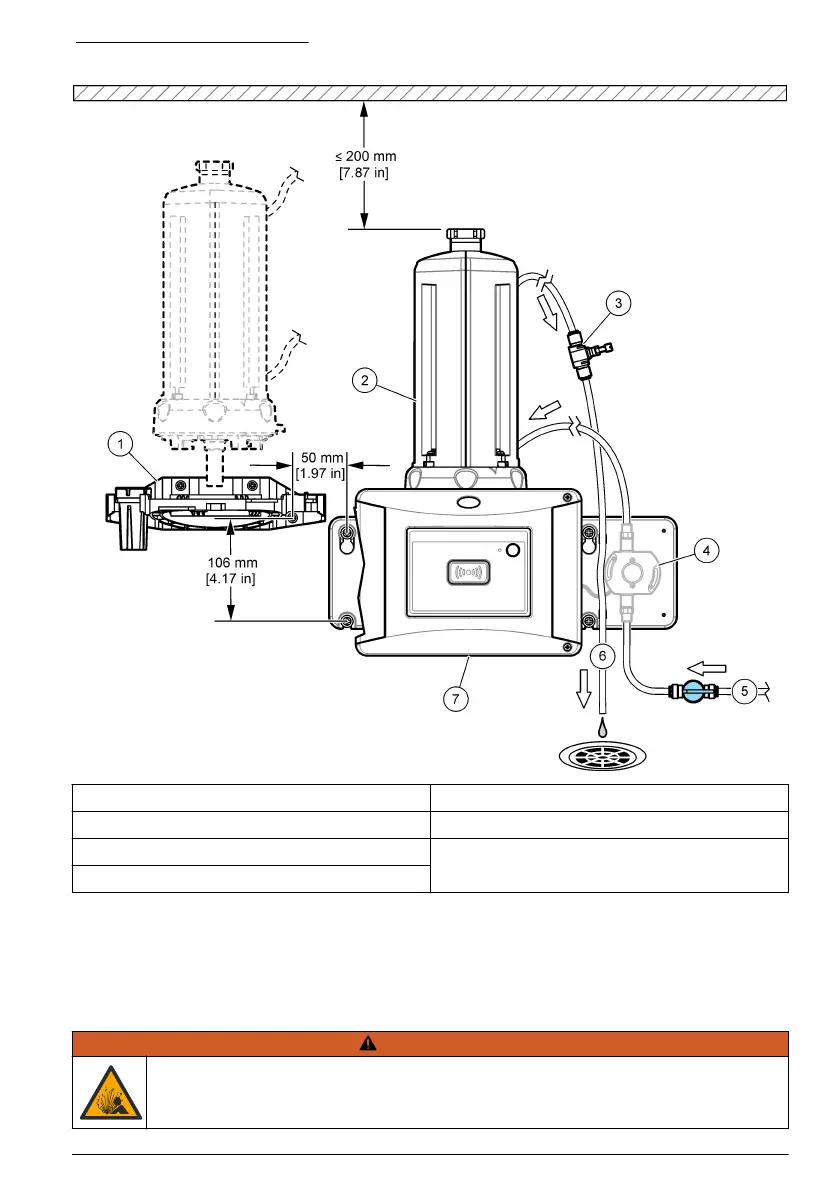

Figure 3 Installation overview
1 Service bracket 5 Sample inlet
2 Automatic cleaning module 6 Sample outlet
3 Flow regulator 7 TU5300 sc or TU5400 sc
4 Flow sensor (optional)
3.2 Install the service bracket
Refer to the TU5300 sc/TU5400 sc documentation to install the service bracket. The service bracket
is supplied with the turbidimeter.
3.3 Install the automatic cleaning module
W A R N I N G
Explosion hazard. Make sure that the drain tube is free of all obstructions. If the drain
tube has a blockage or is pinched or bent, high pressure can build up in the instrument.
