Chapter 4, Getting Started 43
Haemonetics
®
TEG
®
6s User Manual P/N 115191-IE, Manual revision: AB

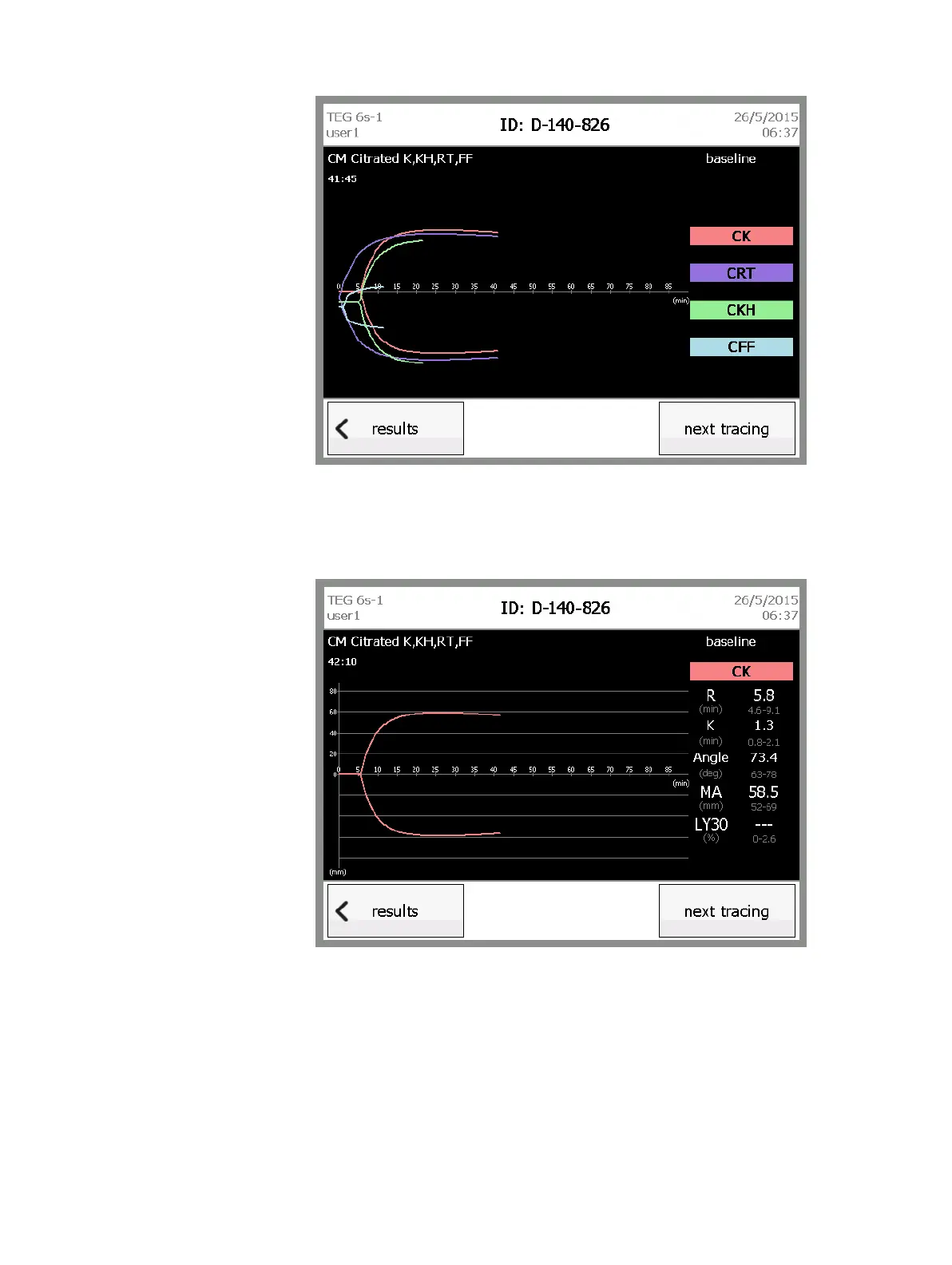

Figure 4-10, Offset tracings
On the right side of the superimposed and offset tracing screens, a legend
displays each test name and corresponding color for the tracing. You can touch
the test name in the legend to display the individual-channel tracing for the test.
Figure 4-11, Individual-channel tracing
On the right side of each individual-channel tracing, the test name is displayed,
along with the parameter names, units, parameter values, and ranges.
