hager XEV1K11T2 User Manual

43
15 s
15 s
Wait 60 seconds before cutting it off.
60 s
• Save the configuration
After configuring the parameters, save the text file under: B1280 global.cfg.
B1280 diagnose - Bloc - notes
Edition Format Achage Aide
Fichier
[Config]
Access control = # 0->Stand Alone-Home
# 3->Key-Switch
[Manager]
Name = "" # Charge Point Name
Wh_per_impulse = 1 # 1->SAIA BURGESS AAD1, AAE1, ALD1, ALE3
# 10->SAIA BURGESS AAE3
# 100->HAGER ECO51, EC352, ECP140D, ECP3800
Phase_number = 1 # 1->single phase
# 3->three phase
CHP_mode = 3 # 0->CHP active
# 1->CHP load shedding 7A/13A (mono/tri)
# 2->CHP load shedding BA
# 3->CHP unused
DN_mode = 0 # 0->DN active
# 1->DN load shedding 7A/13A (mono/tri)
# 2->DN load shedding eA
# 3->DN unused
Current_Selector = 4 # 1->10
# 2->13
# 3->16
# 4->20
# 5->25
# 6->32
Deferred = 1 # 0->Immediate
# 1->Deferred inclusive
# 2->Deferred exclusive
DN Delay = 0 # Day night delay in minute (up to 1440)
Phase napping = 0 # 0->L1-L2-L3
# 1->L1-L3-L2
# 2->L2-L1-L3
# 3->L2-L3-L1
# 4->L3-L1-L2
# 5->L3-L2-L1
Led_Pwr = 100 # 30% - 100%
[Tic]
Tic_management = 1 # 0->TIC active
# 1->TIC unused
Tariff_1 = 0 # 0->No charge
# 1->Charge
Tariff_2 = 0 # 0->No charge
# 1->Charge
Tariff_3 = 0 # 0->No charge
# 1->Charge
Tariff_4 = 0 # 0->No charge
# 1->Charge
Tariff_5 = 0 # 0->No charge
# 1->Charge
Tariff_6 = 0 # 0->No charge
# 1->Charge
Tariff_7 = 0 # 1->Charge
# 0->No charge
Tariff_8 = 0 # 1->Charge
# 0->No charge
Tariff_9 = 0 # 1->Charge
# 0->No charge
Tariff_10 = 0 # 1->Charge
# 0->No charge
[Diagnose]
Nouveau Ctrl + N
Ctrl + O
Ctrl + S
Ctrl + P
Ouvrir
Enregistrer
Enregistrer sous ...
Mise en page ...
Imprimer ...
Quitter
>
>
> USB (E:)
> USB (E:)
Enregistrer sous
B1280 diagnose.txt
Nom du chier :
Type :
B1280 global.cfg
Fichiers texte (*.txt)
Enregistrer
Annuler
>
Nom du chier :
Type :
B1280 global.cfg
Fichiers texte (*.txt)
Enregistrer
Annuler
B1280 diagnose.cfg
Fichiers texte (*.txt)
Enregistrer

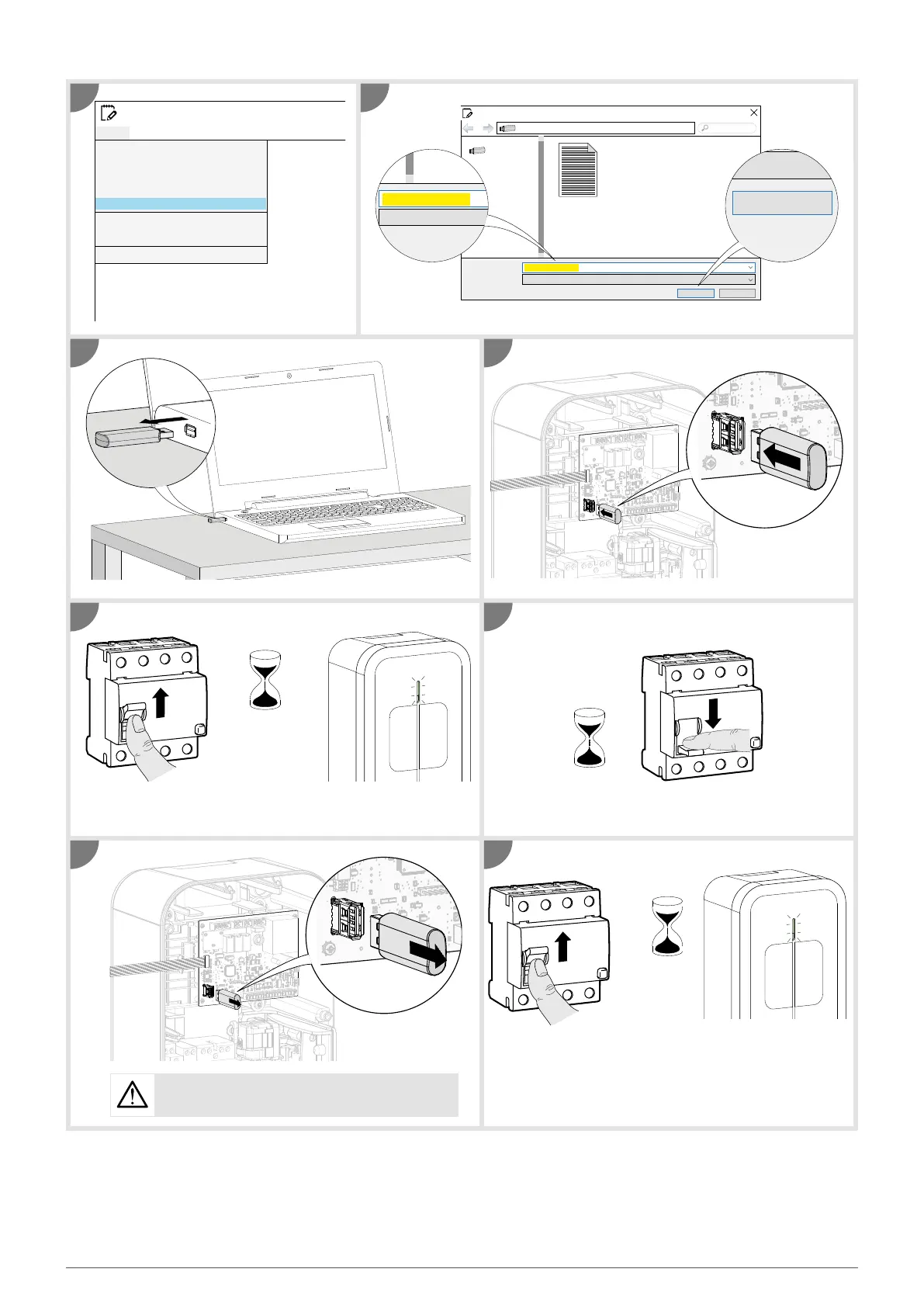

1 2
1
3
5
7
4
6
8
2
steady green
steady green
Read the key again to check that all of the
parameters have been taken into account.
