30/64 CMp | Technical data

Bosch Rexroth AB, RE 15409 Version 08.2022,

42584

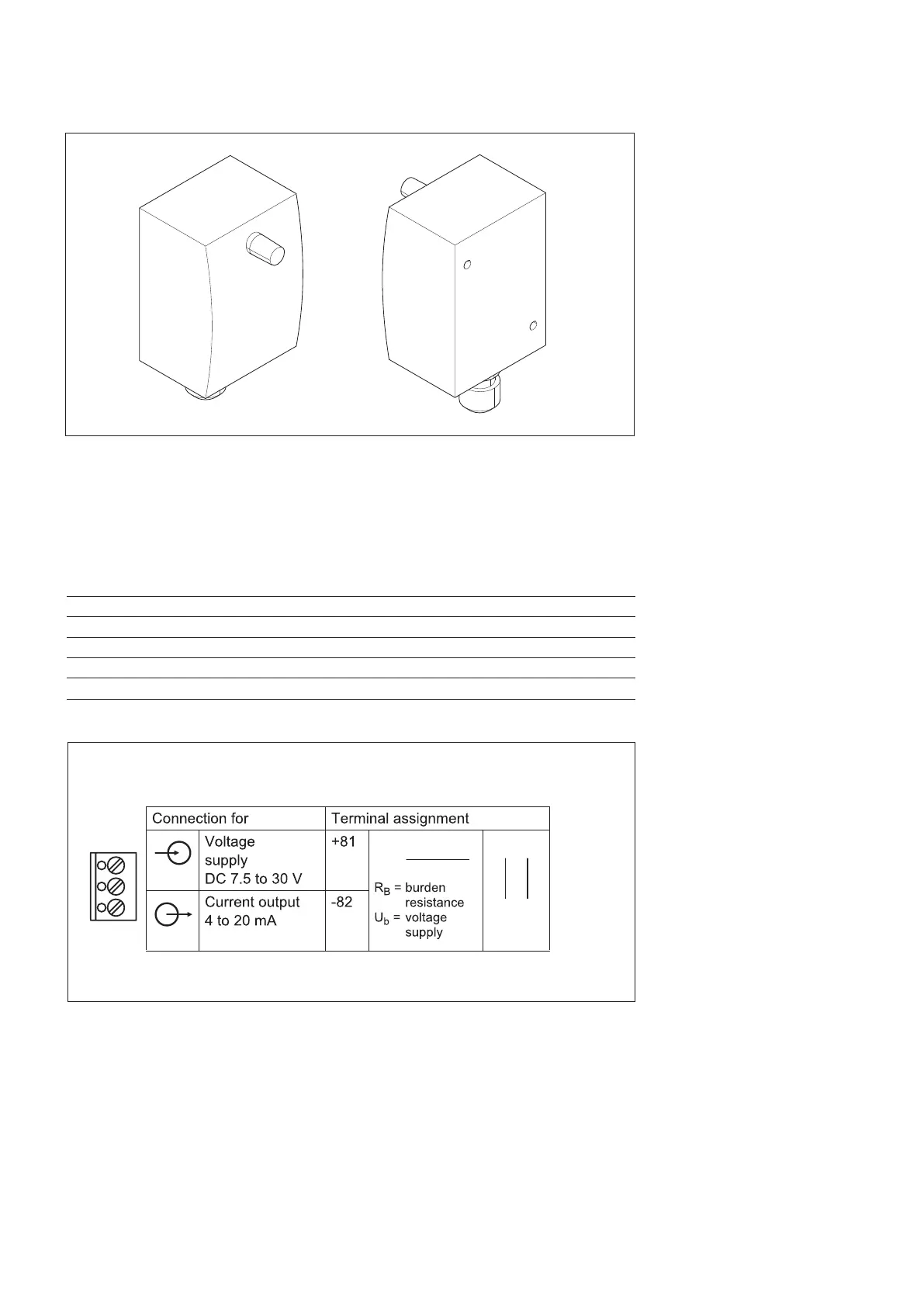

Fig. 25: Ambient temperature sensor, type 15

Function

Sensor package (SLSP15) is used for meassuering ambient temperature.

Table 16: lectrical data ambient temperature sensor

Supply voltage 7,5 to 30 V

Output signal 4 to 20 mA

Meassuering range -40 C to +80 C

Sensor type Pt100 class B

Protection class (cable gland downwards,

see Fig. 25)

IP 65

81 8382

R =

U - 7,5 V

22 mA

81 82

Output 4 to 20 mA

Fig. 26: Connection diagram

42586
