RE 15409, Version 08.2022, Bosch Rexroth AB
Technical data | CMp 29/64
Table 14: Mechanical data
type 11 type 12 type 13 type 14
Connection (sensor) G 1/4 G 1/4 G 1/4 G 1/2
Connection (adaptor) G 3/4
Sensor element length 30 mm 60 mm 30 mm 510 mm
42582

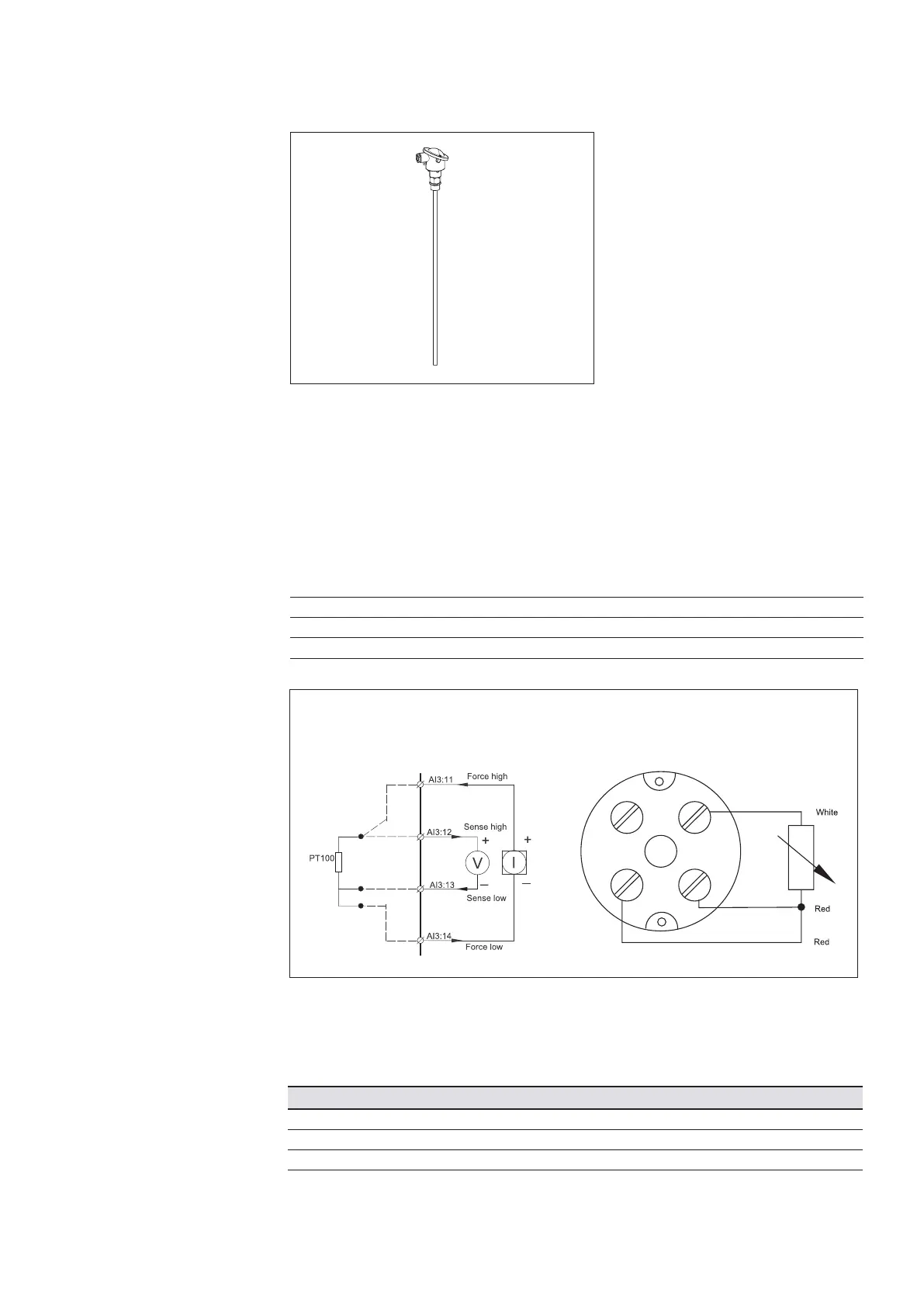

Fig. 23: Temperature sensor, type 14
Function
Sensor type 14 purpose is to replace temperature switch in the tank.
Important to check the interface of the switch towards the tank. If it is a G ½” you
can replace it easily.
Remember to connect the sensor to the control system. If it is a Spider system,
use the PT100 port.
Table 15: Electrical data
Sensor type 3-wire PT100 class A
Output signal PT100
Protection class IP65
Fig. 24: Connection to Spider 2 and sensor connections
Spider 2 connections
white cable
red cables
If the control system is a Spider 2, connection as Fig. 24 (left side)
Sensor connections
42578
