Installation | CMp 41/64
X 2
X 4
X 4

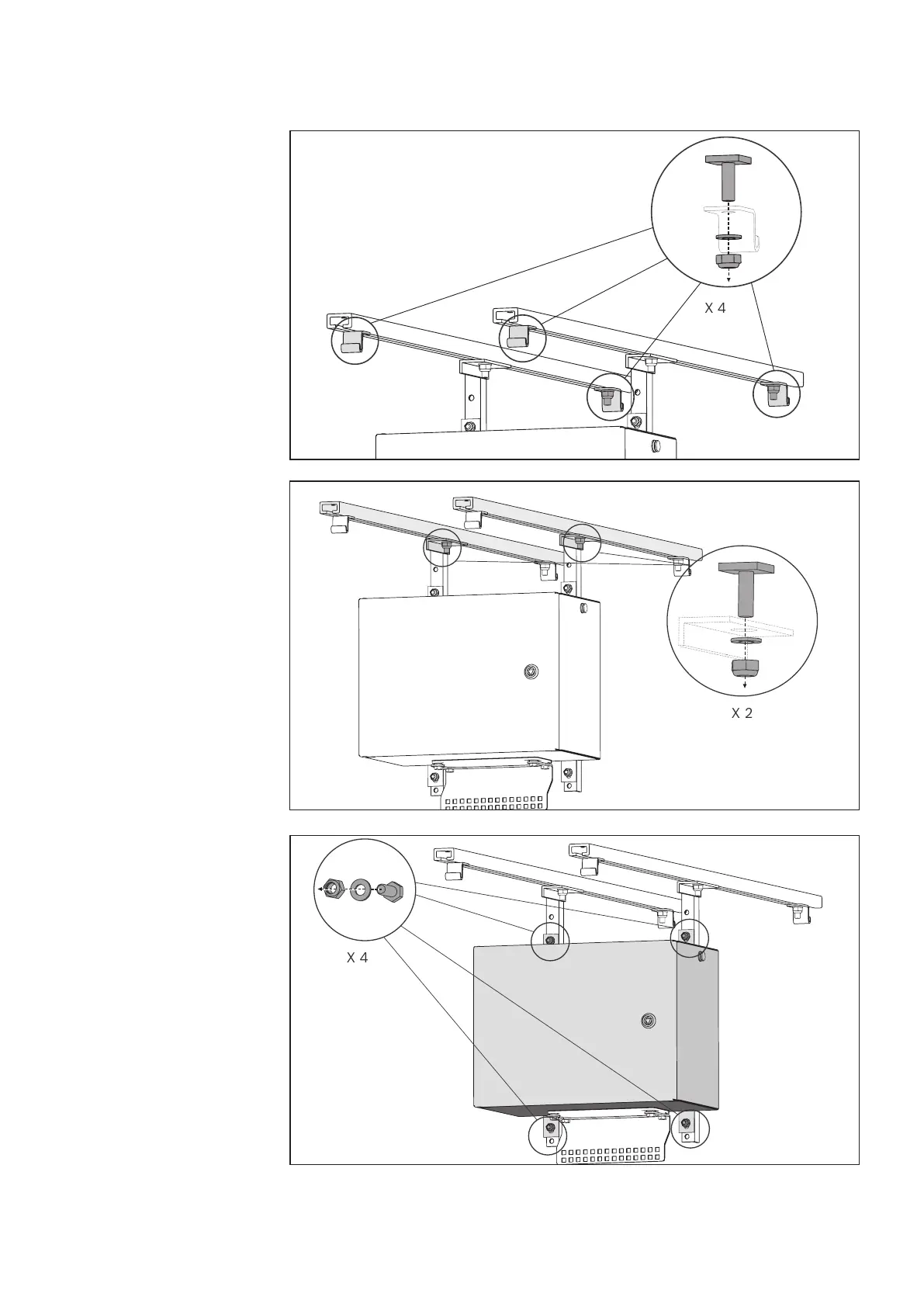

4. Mount the brackets to
the rails with Hexagon
screw M8X20
5. Mount the rails to the
PEC frame with 25X25
screws M10X30.
6. Mount the box to the
brackets with Hexagon
screw M8X20
DD00078037
DD00078041
DD00078043
