RE 15409, Version 08.2022, Bosch Rexroth AB
Installation | CMp 51/64
7.3.2 Flow sensors
Recommended mounting of the sensor
It's important to avoid disturbance in the ow that pass the sensor. Follow the
information in Fig. 55.

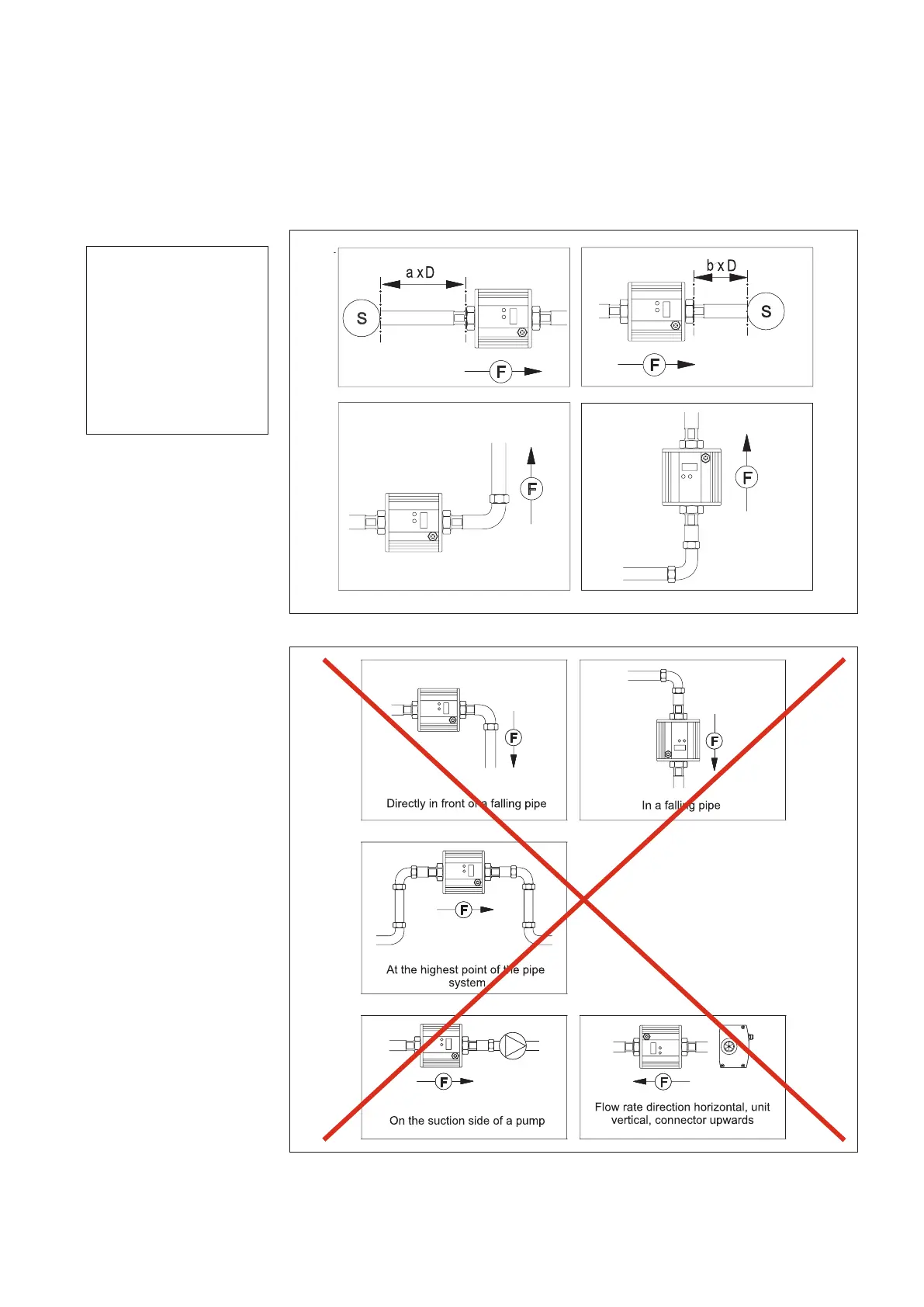

Fig. 55: Recommended mounting position
Fig. 56: Not recommended mounting position
S = disturbance
D = pipe diameter
F = flow
SU7000, SU8000 a = 5
b = 2
SU9000 a = 8
b = 3
F= flow direction
42604
42606
