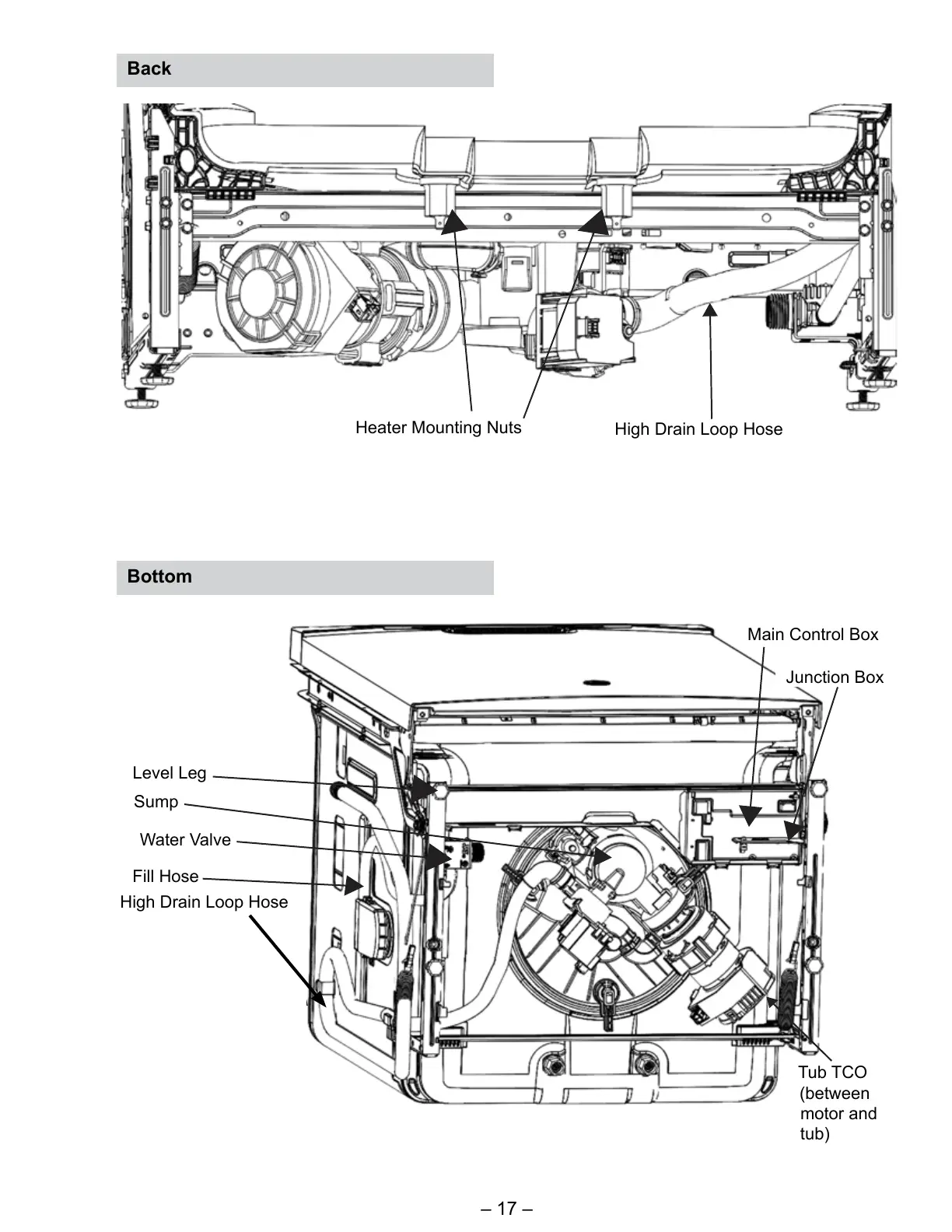

– 17 –
Heater Mounting Nuts
High Drain Loop Hose
Back
Bottom
Level Leg
Sump
Water Valve
Fill Hose
Main Control Box
Junction Box
Tub TCO
(between
motor and
tub)
High Drain Loop Hose
