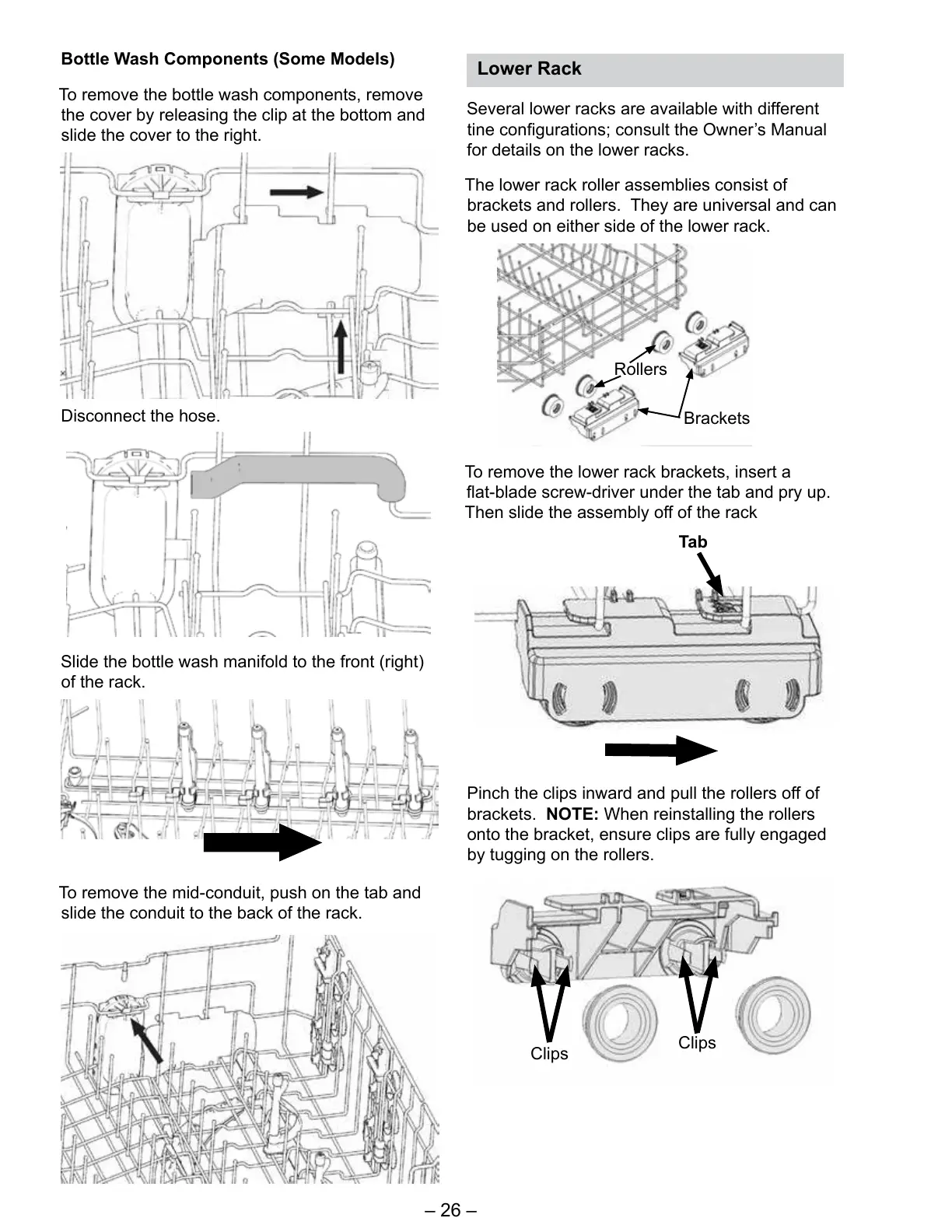

– 26 –
Several lower racks are available with different
tine congurations; consult the Owner’s Manual
for details on the lower racks.
The lower rack roller assemblies consist of
brackets and rollers. They are universal and can
be used on either side of the lower rack.
To remove the lower rack brackets, insert a
at-blade screw-driver under the tab and pry up.
Then slide the assembly off of the rack
Pinch the clips inward and pull the rollers off of
brackets. NOTE: When reinstalling the rollers
onto the bracket, ensure clips are fully engaged
by tugging on the rollers.
Bottle Wash Components (Some Models)
To remove the bottle wash components, remove
the cover by releasing the clip at the bottom and
slide the cover to the right.
Disconnect the hose.
Slide the bottle wash manifold to the front (right)
of the rack.
To remove the mid-conduit, push on the tab and
slide the conduit to the back of the rack.
Lower Rack
Brackets
Rollers
Tab
Clips
Clips
To Next Page
