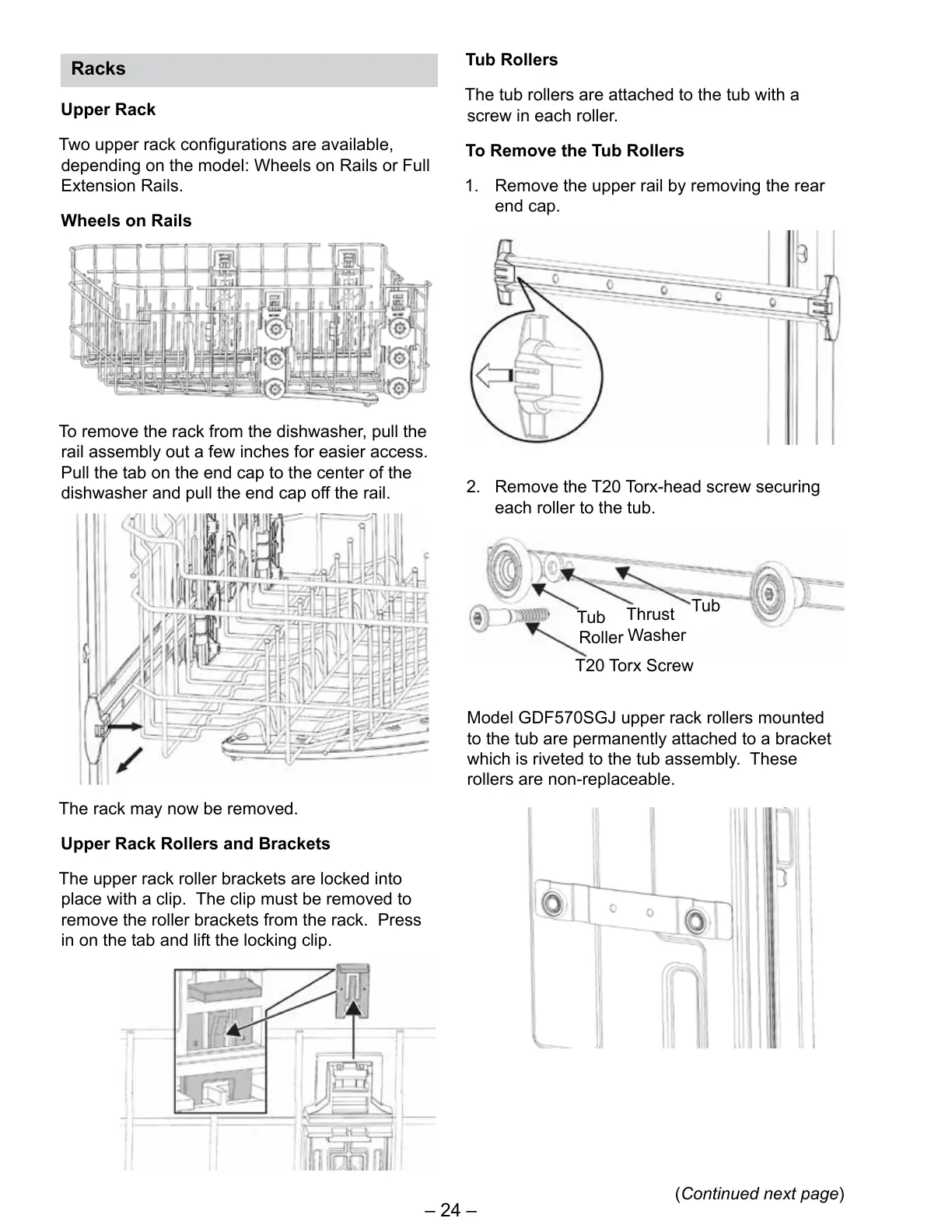

Tub Rollers
The tub rollers are attached to the tub with a
screw in each roller.
To Remove the Tub Rollers
1. Remove the upper rail by removing the rear
end cap.
2. Remove the T20 Torx-head screw securing
each roller to the tub.
Model GDF570SGJ upper rack rollers mounted
to the tub are permanently attached to a bracket
which is riveted to the tub assembly. These
rollers are non-replaceable.
Upper Rack
Two upper rack congurations are available,
depending on the model: Wheels on Rails or Full
Extension Rails.
Wheels on Rails
To remove the rack from the dishwasher, pull the
rail assembly out a few inches for easier access.
Pull the tab on the end cap to the center of the
dishwasher and pull the end cap off the rail.
The rack may now be removed.
Upper Rack Rollers and Brackets
The upper rack roller brackets are locked into
place with a clip. The clip must be removed to
remove the roller brackets from the rack. Press
in on the tab and lift the locking clip.
(Continued next page)
Tub
Thrust
Washer
Tub
Roller
T20 Torx Screw
Racks
To Next Page
