– 54 –

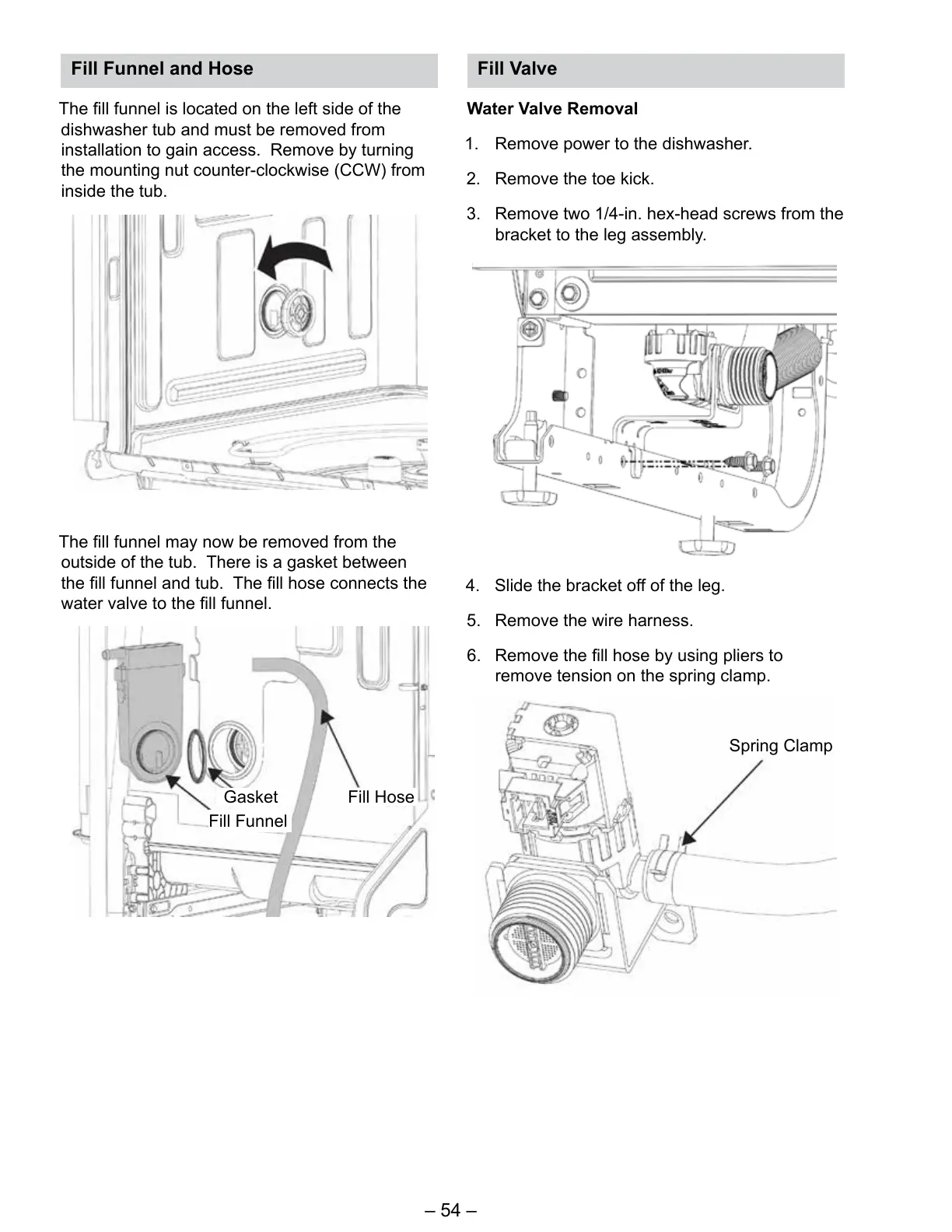

Water Valve Removal
1. Remove power to the dishwasher.
2. Remove the toe kick.
3. Remove two 1/4-in. hex-head screws from the
bracket to the leg assembly.
4. Slide the bracket off of the leg.
5. Remove the wire harness.
6. Remove the ll hose by using pliers to
remove tension on the spring clamp.
Spring Clamp
The ll funnel is located on the left side of the
dishwasher tub and must be removed from
installation to gain access. Remove by turning
the mounting nut counter-clockwise (CCW) from
inside the tub.
The ll funnel may now be removed from the
outside of the tub. There is a gasket between
the ll funnel and tub. The ll hose connects the
water valve to the ll funnel.
Fill HoseGasket
Fill Funnel
Fill Funnel and Hose Fill Valve
