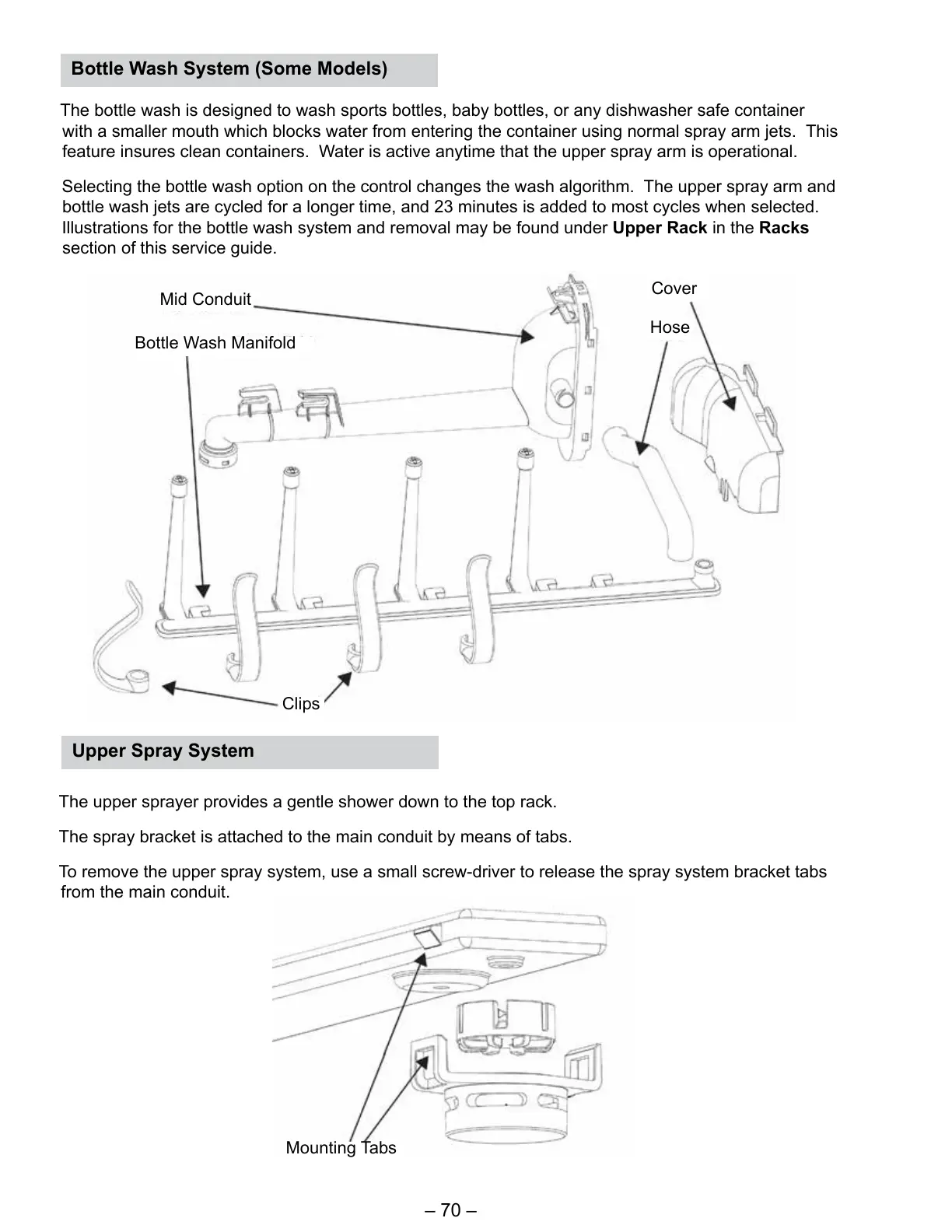

– 70 –
Mounting Tabs
The upper sprayer provides a gentle shower down to the top rack.
The spray bracket is attached to the main conduit by means of tabs.
To remove the upper spray system, use a small screw-driver to release the spray system bracket tabs
from the main conduit.
The bottle wash is designed to wash sports bottles, baby bottles, or any dishwasher safe container
with a smaller mouth which blocks water from entering the container using normal spray arm jets. This
feature insures clean containers. Water is active anytime that the upper spray arm is operational.
Selecting the bottle wash option on the control changes the wash algorithm. The upper spray arm and
bottle wash jets are cycled for a longer time, and 23 minutes is added to most cycles when selected.
Illustrations for the bottle wash system and removal may be found under Upper Rack in the Racks
section of this service guide.
Cover
Hose
Mid Conduit
Bottle Wash Manifold
Clips
Bottle Wash System (Some Models)
Upper Spray System
To Next Page
