– 35 –

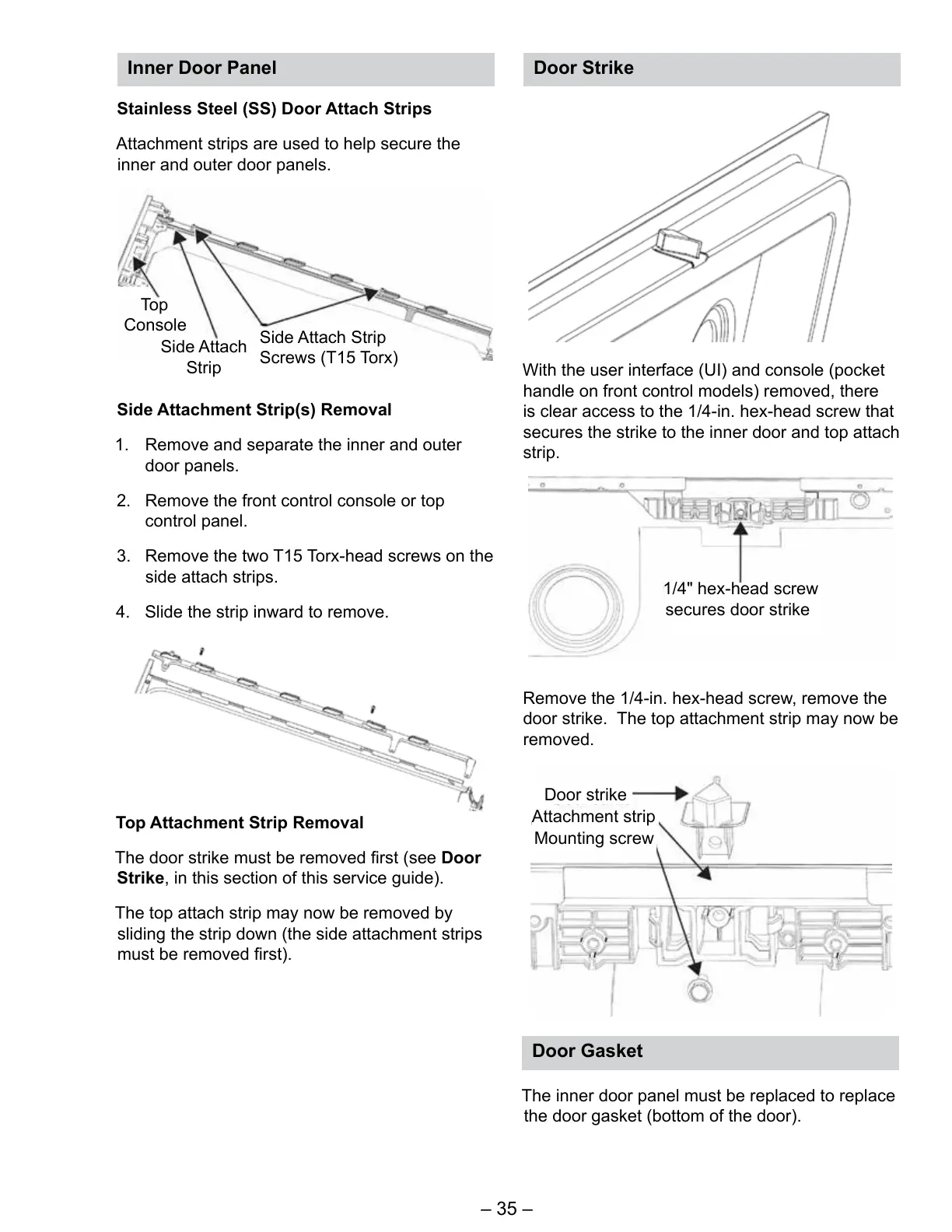

Stainless Steel (SS) Door Attach Strips
Attachment strips are used to help secure the
inner and outer door panels.
Side Attachment Strip(s) Removal
1. Remove and separate the inner and outer
door panels.
2. Remove the front control console or top
control panel.
3. Remove the two T15 Torx-head screws on the
side attach strips.
4. Slide the strip inward to remove.
Top Attachment Strip Removal
The door strike must be removed rst (see Door
Strike, in this section of this service guide).
The top attach strip may now be removed by
sliding the strip down (the side attachment strips
must be removed rst).
With the user interface (UI) and console (pocket
handle on front control models) removed, there
is clear access to the 1/4-in. hex-head screw that
secures the strike to the inner door and top attach
strip.
Remove the 1/4-in. hex-head screw, remove the
door strike. The top attachment strip may now be
removed.
Side Attach
Strip
Side Attach Strip
Screws (T15 Torx)
Top
Console
The inner door panel must be replaced to replace
the door gasket (bottom of the door).
1/4" hex-head screw
secures door strike
Door strike
Attachment strip
Mounting screw
Inner Door Panel Door Strike
Door Gasket
