– 33 –

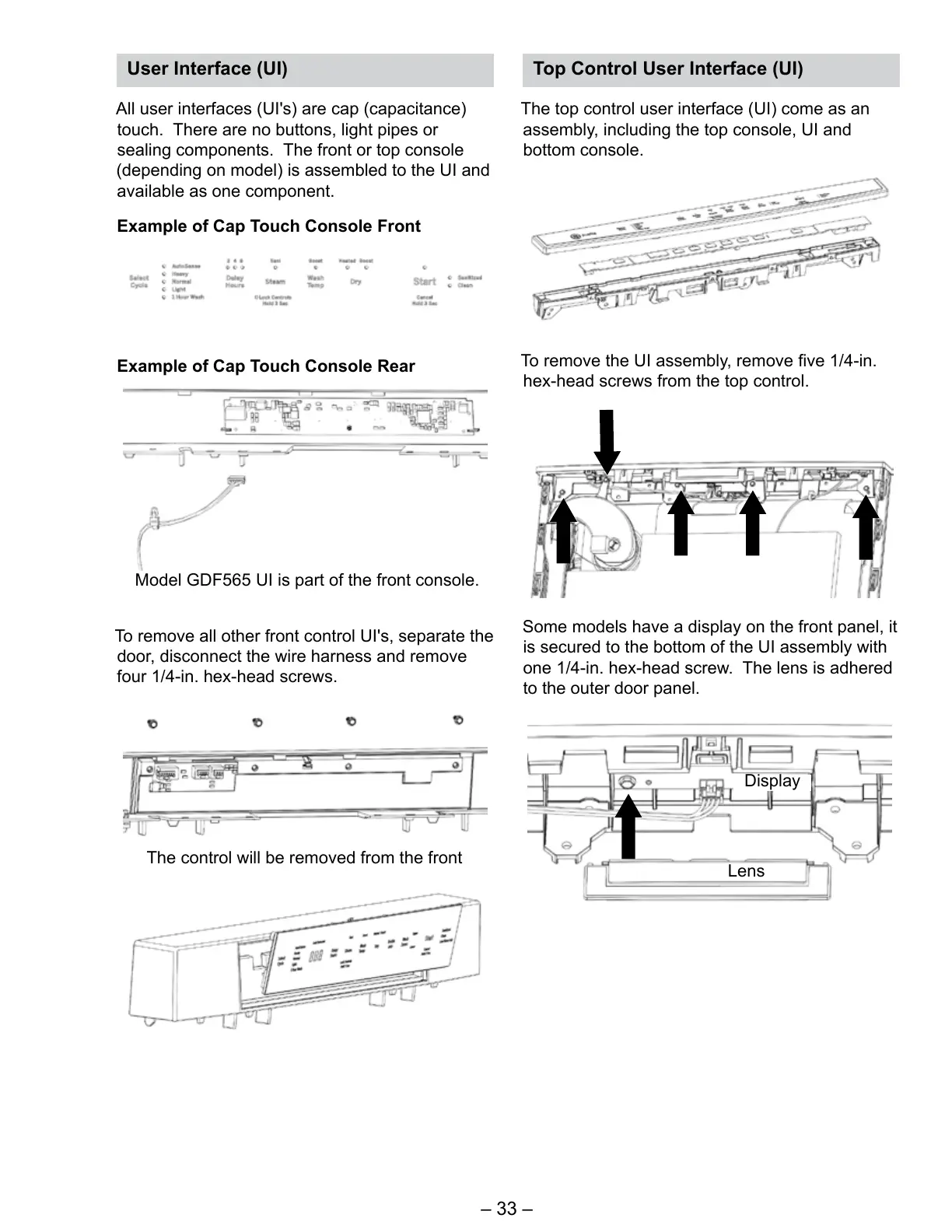

All user interfaces (UI's) are cap (capacitance)
touch. There are no buttons, light pipes or
sealing components. The front or top console
(depending on model) is assembled to the UI and
available as one component.
Example of Cap Touch Console Front
Example of Cap Touch Console Rear
To remove all other front control UI's, separate the
door, disconnect the wire harness and remove
four 1/4-in. hex-head screws.
The top control user interface (UI) come as an
assembly, including the top console, UI and
bottom console.
To remove the UI assembly, remove ve 1/4-in.
hex-head screws from the top control.
Some models have a display on the front panel, it
is secured to the bottom of the UI assembly with
one 1/4-in. hex-head screw. The lens is adhered
to the outer door panel.
Lens
Display
User Interface (UI)
Top Control User Interface (UI)
Model GDF565 UI is part of the front console.
The control will be removed from the front
