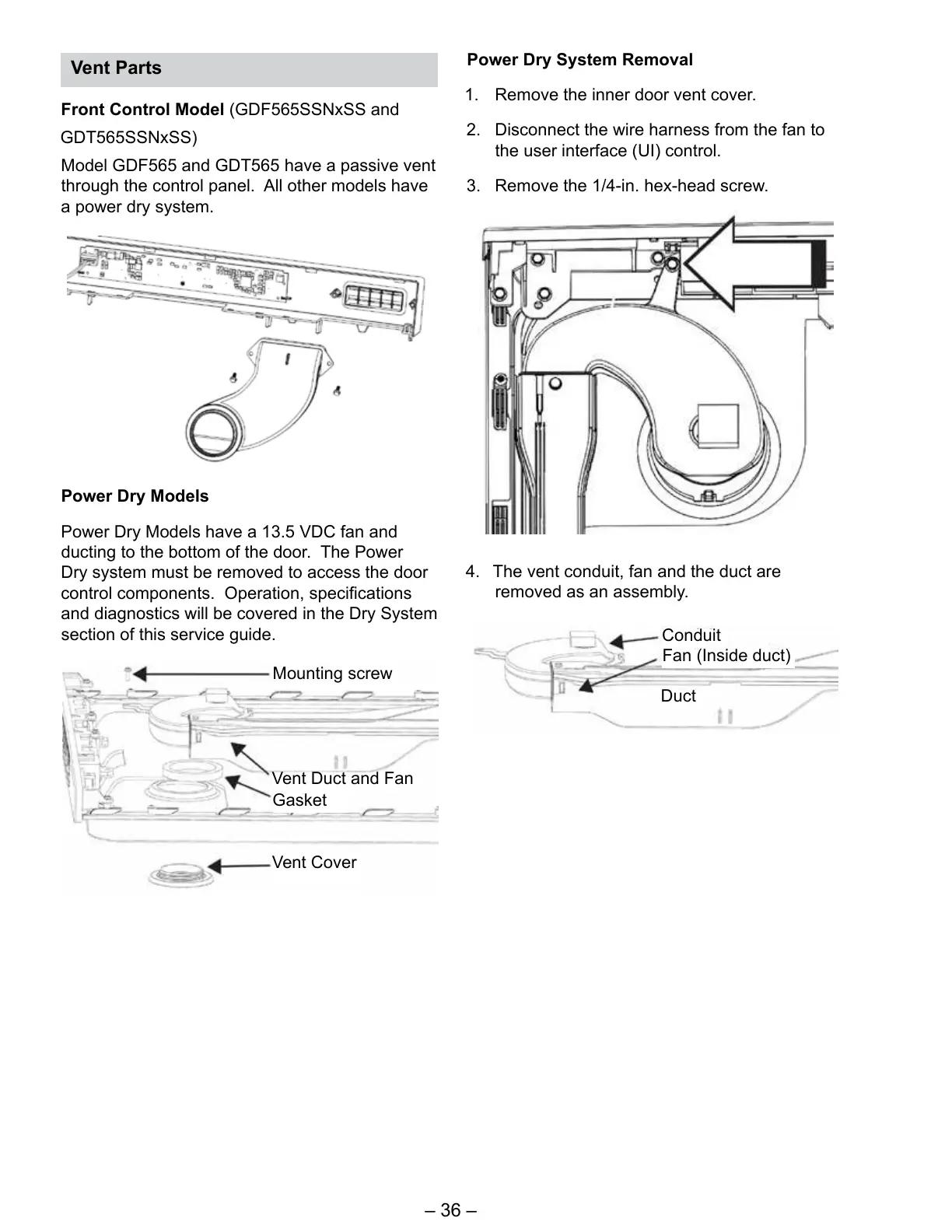

– 36 –
Front Control Model (GDF565SSNxSS and
GDT565SSNxSS)
Model GDF565 and GDT565 have a passive vent
through the control panel. All other models have
a power dry system.
Power Dry Models
Power Dry Models have a 13.5 VDC fan and
ducting to the bottom of the door. The Power
Dry system must be removed to access the door
control components. Operation, specications
and diagnostics will be covered in the Dry System
section of this service guide.
Power Dry System Removal
1. Remove the inner door vent cover.
2. Disconnect the wire harness from the fan to
the user interface (UI) control.
3. Remove the 1/4-in. hex-head screw.
4. The vent conduit, fan and the duct are
removed as an assembly.
Mounting screw
Vent Duct and Fan
Gasket
Vent Cover
Conduit
Fan (Inside duct)
Duct
Vent Parts
