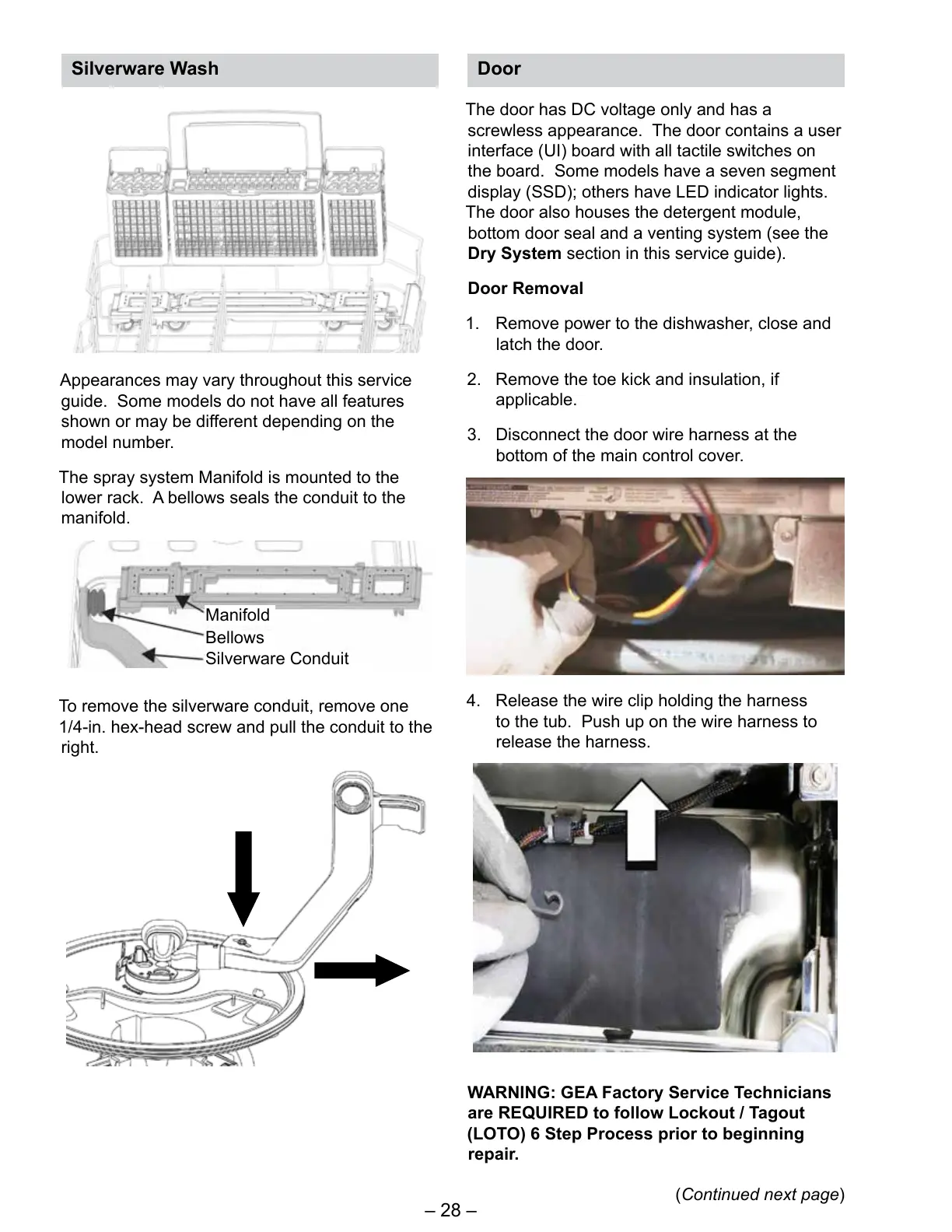

– 28 –
The door has DC voltage only and has a
screwless appearance. The door contains a user
interface (UI) board with all tactile switches on
the board. Some models have a seven segment
display (SSD); others have LED indicator lights.
The door also houses the detergent module,
bottom door seal and a venting system (see the
Dry System section in this service guide).
Door Removal
1. Remove power to the dishwasher, close and
latch the door.
2. Remove the toe kick and insulation, if
applicable.
3. Disconnect the door wire harness at the
bottom of the main control cover.
4. Release the wire clip holding the harness
to the tub. Push up on the wire harness to
release the harness.
WARNING: GEA Factory Service Technicians
are REQUIRED to follow Lockout / Tagout
(LOTO) 6 Step Process prior to beginning
repair.
Appearances may vary throughout this service
guide. Some models do not have all features
shown or may be different depending on the
model number.
The spray system Manifold is mounted to the
lower rack. A bellows seals the conduit to the
manifold.
To remove the silverware conduit, remove one
1/4-in. hex-head screw and pull the conduit to the
right.
Silverware Wash Door
Manifold
Bellows
Silverware Conduit
(Continued next page)
