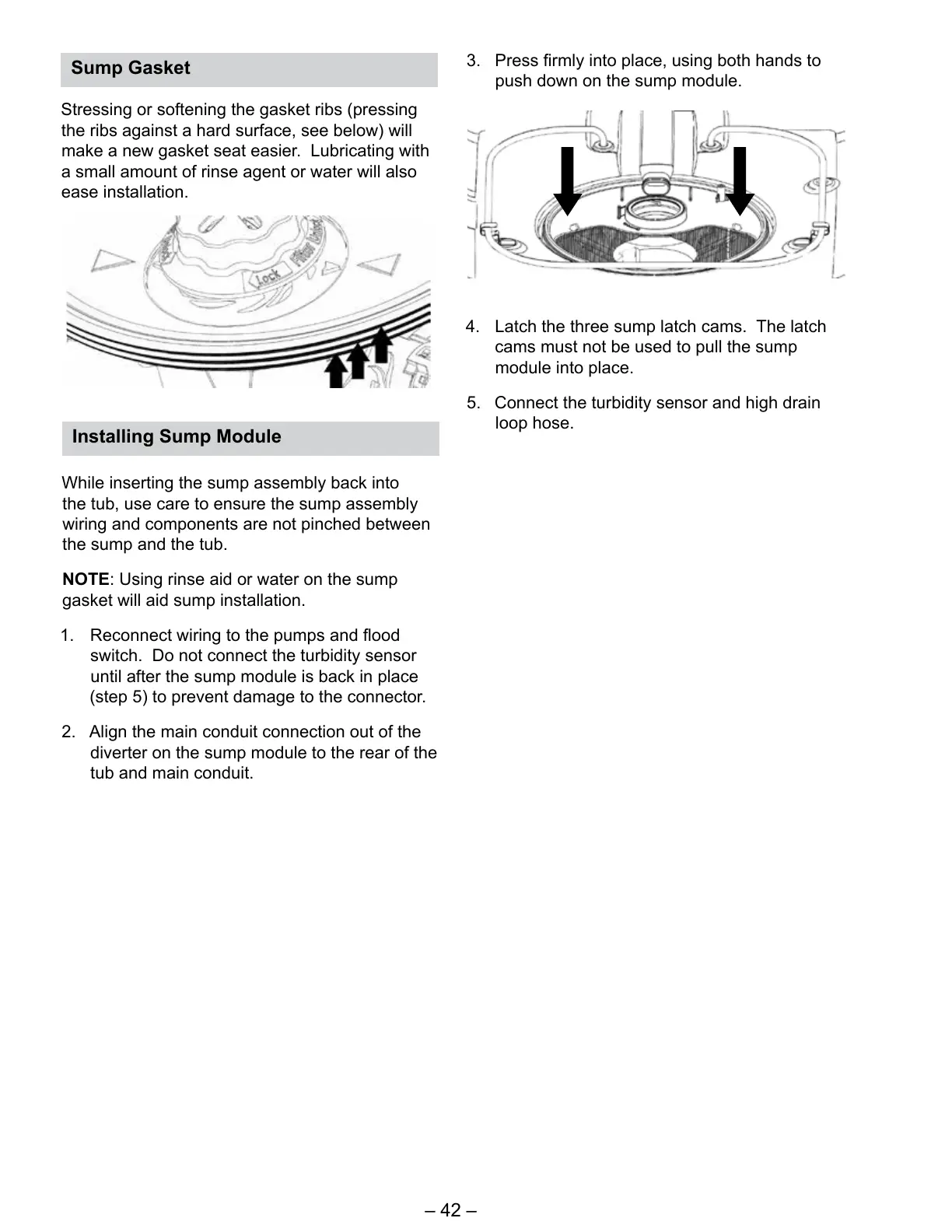

– 42 –
3. Press rmly into place, using both hands to
push down on the sump module.
4. Latch the three sump latch cams. The latch
cams must not be used to pull the sump
module into place.
5. Connect the turbidity sensor and high drain
loop hose.
Stressing or softening the gasket ribs (pressing
the ribs against a hard surface, see below) will
make a new gasket seat easier. Lubricating with
a small amount of rinse agent or water will also
ease installation.
While inserting the sump assembly back into
the tub, use care to ensure the sump assembly
wiring and components are not pinched between
the sump and the tub.
NOTE: Using rinse aid or water on the sump
gasket will aid sump installation.
1. Reconnect wiring to the pumps and ood
switch. Do not connect the turbidity sensor
until after the sump module is back in place
(step 5) to prevent damage to the connector.
2. Align the main conduit connection out of the
diverter on the sump module to the rear of the
tub and main conduit.
Sump Gasket
Installing Sump Module
