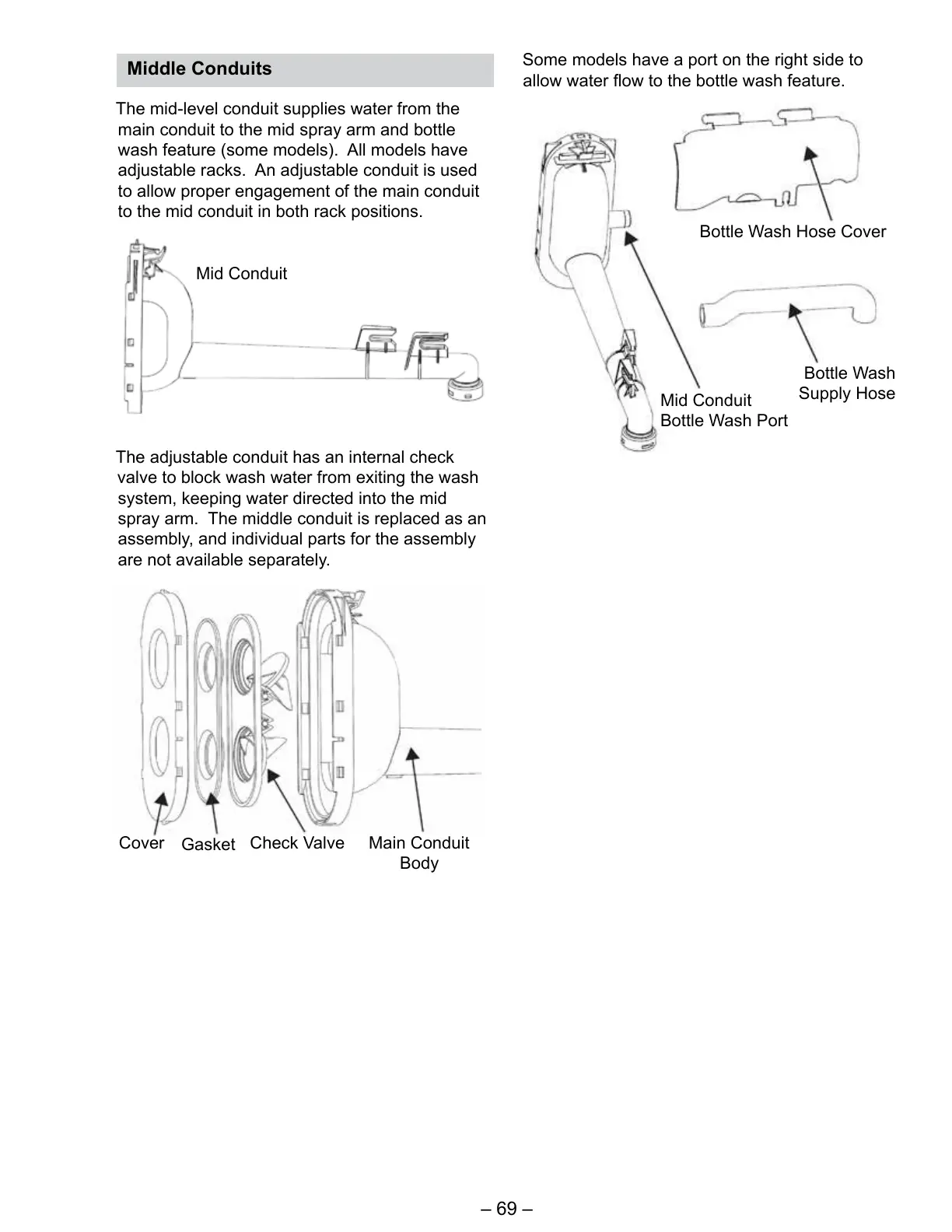

The mid-level conduit supplies water from the
main conduit to the mid spray arm and bottle
wash feature (some models). All models have
adjustable racks. An adjustable conduit is used
to allow proper engagement of the main conduit
to the mid conduit in both rack positions.
The adjustable conduit has an internal check
valve to block wash water from exiting the wash
system, keeping water directed into the mid
spray arm. The middle conduit is replaced as an
assembly, and individual parts for the assembly
are not available separately.
Some models have a port on the right side to
allow water ow to the bottle wash feature.
Mid Conduit
Cover
Gasket
Check Valve Main Conduit
Body
Bottle Wash Hose Cover
Bottle Wash
Supply Hose
Mid Conduit
Bottle Wash Port
Middle Conduits
