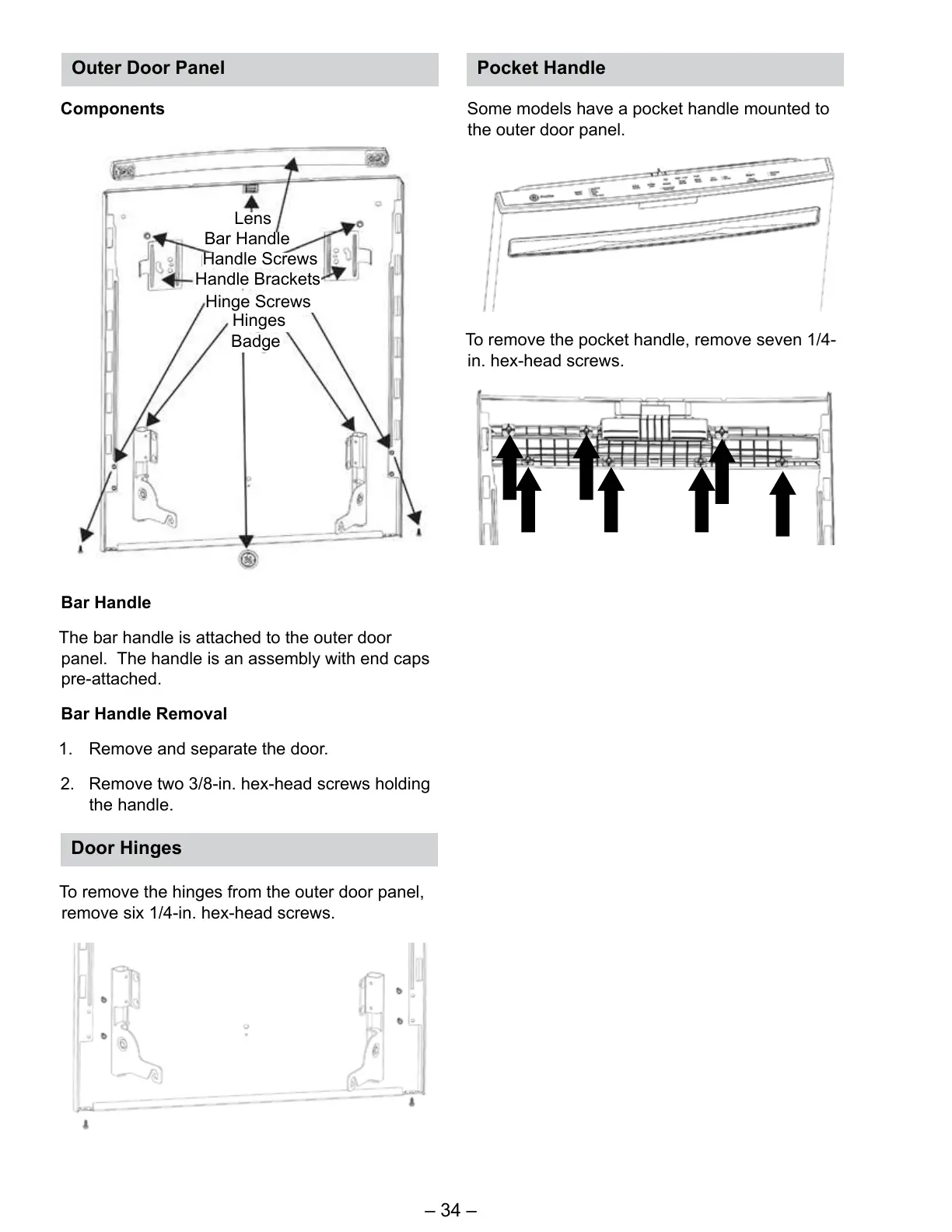

– 34 –
Components
Bar Handle
The bar handle is attached to the outer door
panel. The handle is an assembly with end caps
pre-attached.
Bar Handle Removal
1. Remove and separate the door.
2. Remove two 3/8-in. hex-head screws holding
the handle.
To remove the hinges from the outer door panel,
remove six 1/4-in. hex-head screws.
Lens
Bar Handle
Handle Screws
Handle Brackets
Hinge Screws
Hinges
Badge
Some models have a pocket handle mounted to
the outer door panel.
To remove the pocket handle, remove seven 1/4-
in. hex-head screws.
Outer Door Panel Pocket Handle
Door Hinges
