– 25 –
Pull out 1/2-in. and slide the rail toward the front
of the rack, releasing the rail from the rear tab.
Adjustable Bracket: To remove the adjustable
rack bracket from the rack bracket:
1. Remove the rack and rail.
2. Place the rack on a protective surface, upside
down.
3. Push in on the adjusting lever to slide it all the
way down.
4. Use a at-blade screw-driver to release two
tabs and allow the adjustable bracket to slide
off the rack bracket.
Stationary Bracket: The bracket is snapped onto
the rack, and can be removed by pressing in on
four tabs to release, then sliding the bracket to
the front of the rack and pivoting off of the rack.
1
2

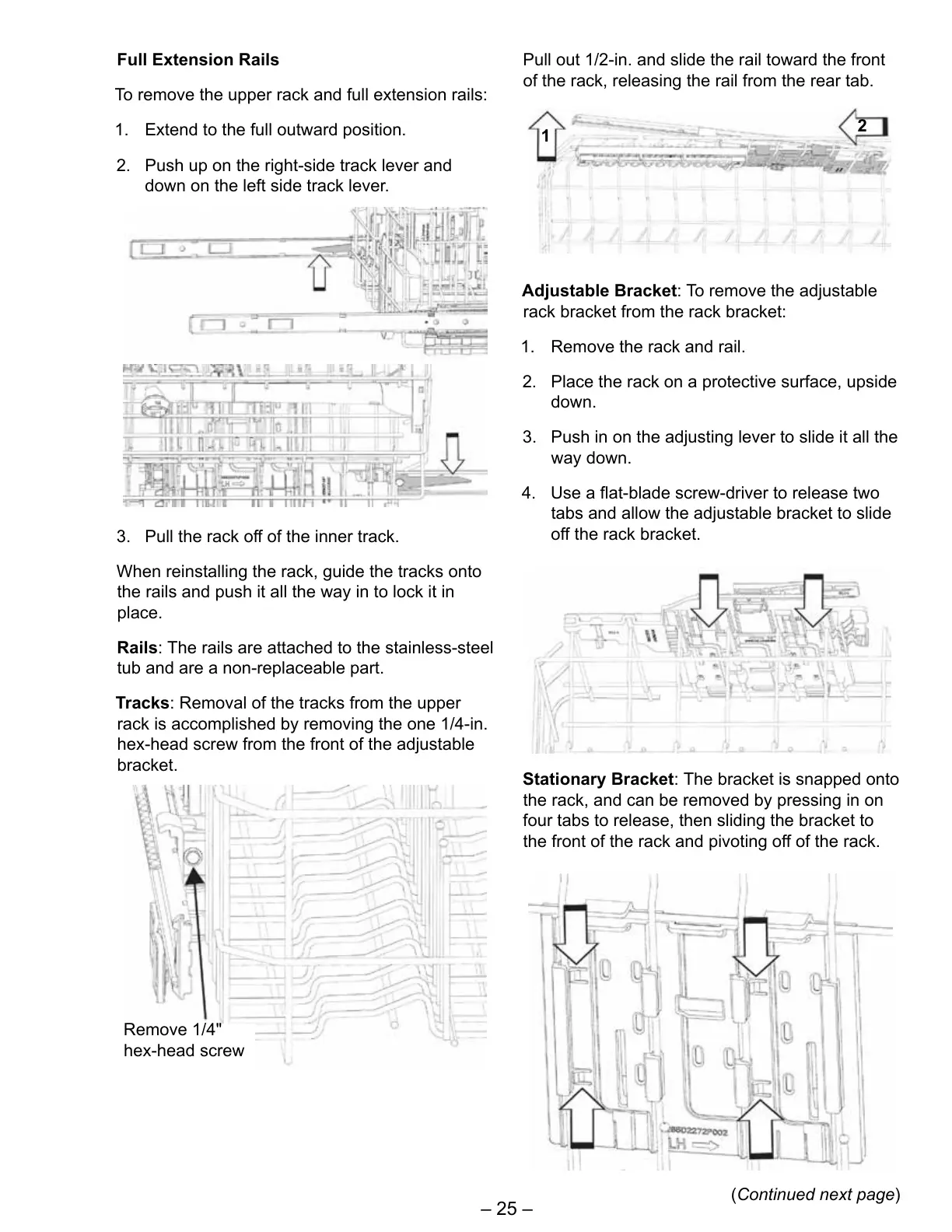

Full Extension Rails
To remove the upper rack and full extension rails:
1. Extend to the full outward position.
2. Push up on the right-side track lever and
down on the left side track lever.
3. Pull the rack off of the inner track.
When reinstalling the rack, guide the tracks onto
the rails and push it all the way in to lock it in
place.
Rails: The rails are attached to the stainless-steel
tub and are a non-replaceable part.
Tracks: Removal of the tracks from the upper
rack is accomplished by removing the one 1/4-in.
hex-head screw from the front of the adjustable
bracket.
Remove 1/4"
hex-head screw
(Continued next page)
