– 50 –

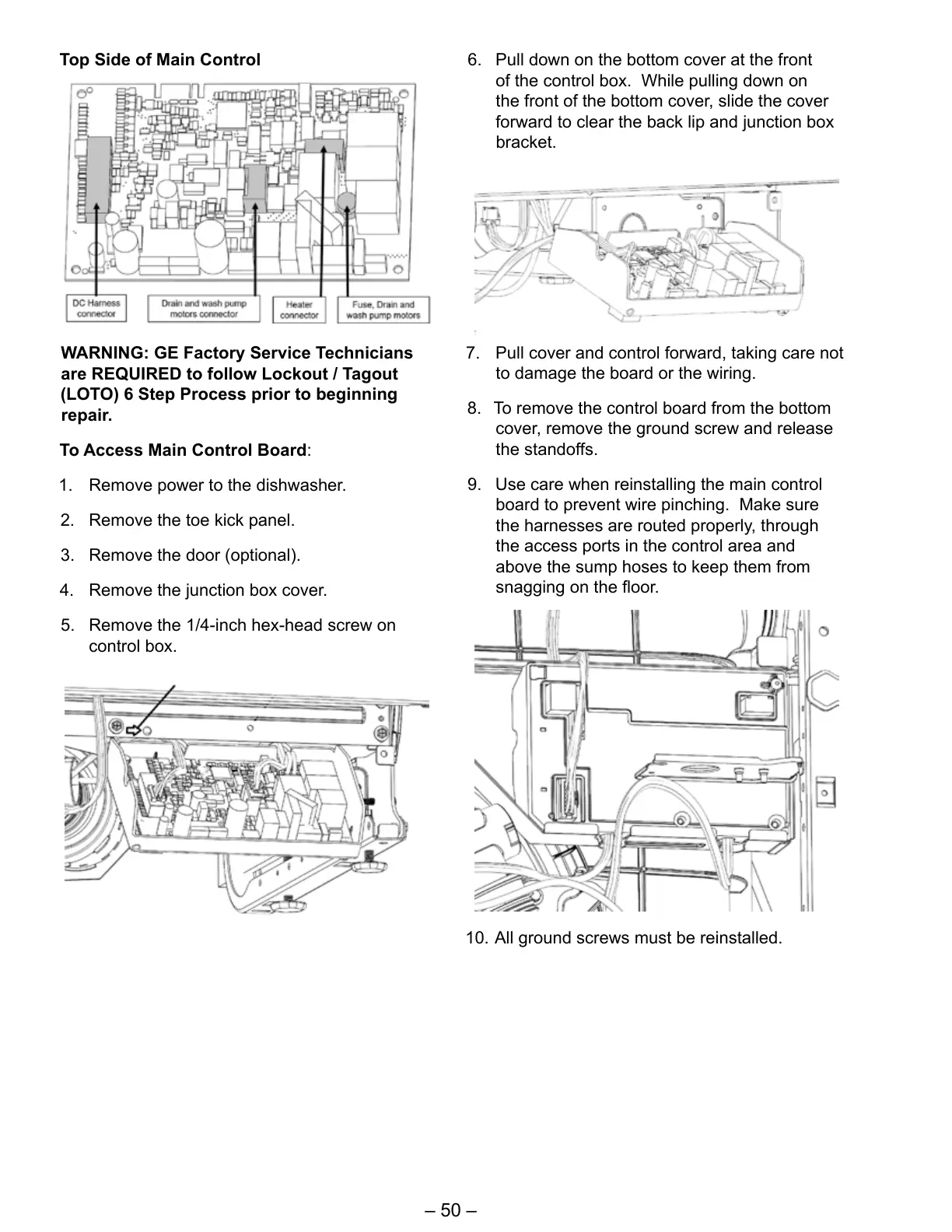

Top Side of Main Control
WARNING: GE Factory Service Technicians
are REQUIRED to follow Lockout / Tagout
(LOTO) 6 Step Process prior to beginning
repair.
To Access Main Control Board:
1. Remove power to the dishwasher.
2. Remove the toe kick panel.
3. Remove the door (optional).
4. Remove the junction box cover.
5. Remove the 1/4-inch hex-head screw on
control box.
6. Pull down on the bottom cover at the front
of the control box. While pulling down on
the front of the bottom cover, slide the cover
forward to clear the back lip and junction box
bracket.
7. Pull cover and control forward, taking care not
to damage the board or the wiring.
8. To remove the control board from the bottom
cover, remove the ground screw and release
the standoffs.
9. Use care when reinstalling the main control
board to prevent wire pinching. Make sure
the harnesses are routed properly, through
the access ports in the control area and
above the sump hoses to keep them from
snagging on the oor.
10. All ground screws must be reinstalled.
