Extension cable location
The sensor extension cable is used to increase the length of the cable from the EB+ Soft Docking ECU to the
ultrasonic sensor.
The sensor extension cable can be used anywhere and in any combination within the sensor loom to ensure the
cable is long enough to reach the mounted sensor on the trailer.
Where indicated, if necessary use the appropriate length of sensor extension cable (364 622 xxx) to reach the
sensor location.
=

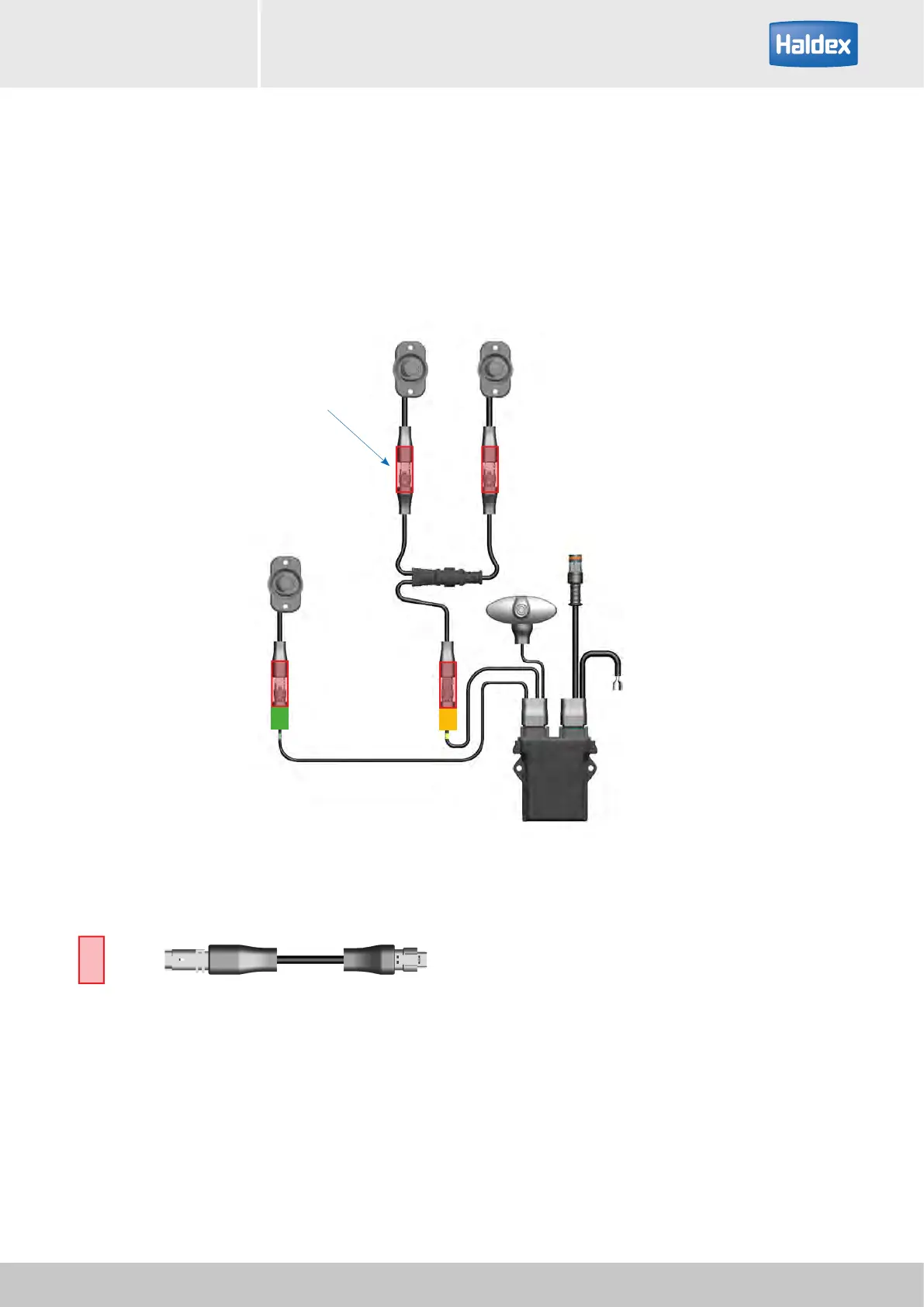

Sensor extension cable
position
