EB+ Soft Docking Installation guide
16
Innovative Vehicle Solutions 2020

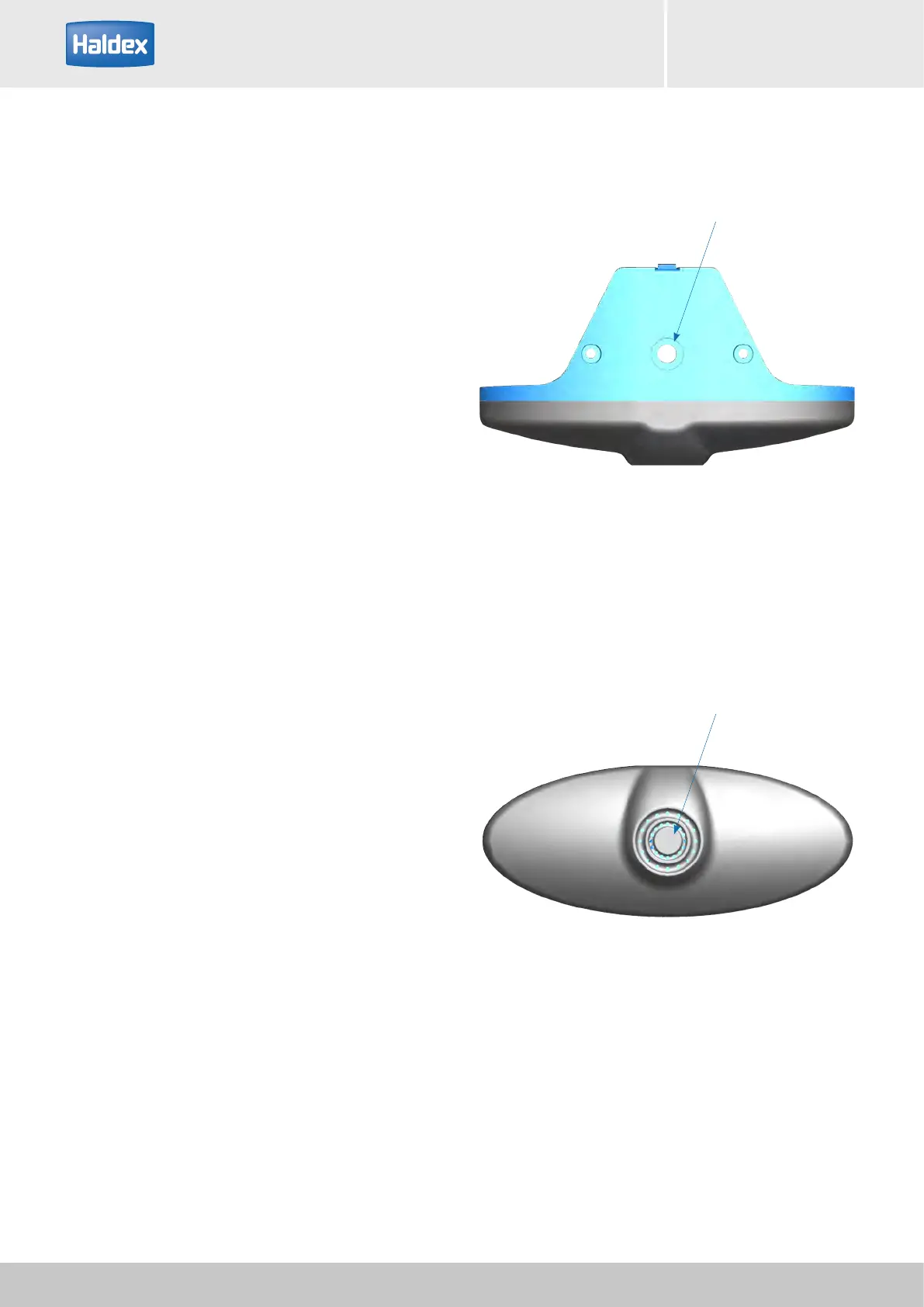

Ø 5 mm Fixing hole
Do not cover or block
Top
Bottom
Fit the audio beeper in a protected position which
is not susceptible to vibration. Normally on the rear
light panel or near the rear axle. Put the sound exit
downward with sufficient area around it not to block
the sound downward and backward. The use of a
sound screen near the sound exit is not allowed. When
assembling, pay attention to the location of the alarm,
the cable entry must be at the top and the drain hole
at the bottom (to let water flow).
The audio beeper connector should be plugged into
the EB+ Soft Docking cable part number 364 605 0xx.
In case of accidental liquid projection inside the beeper,
the beeper sound could be reduced momentarily. It
will return to normal after liquid removal, without any
beeper degradation.
Any product opening or any product change cancels
the product warranty.
Use M3.5 screw.
Screwing torque = 1.3 Nm max.
Fit the alarm on a flat surface.
Sound level (24 V): 108 +/- 5 dB (A) at 30 cm
Sound level (12V): 93 +/- 5 dB (A) at 30cm
Installation of audio beeper
