Haldex EB+ Soft Docking - Sensor Cables; Sensor Extension Cable; Sensor Splitter Cable

EB+ Soft Docking Installation guide
12
Innovative Vehicle Solutions 2020
Sensor splitter cable A B C
364 607 001 0.5 m 0.5 m 0.5 m
Sensor splitter cable A
364 622 001 1.0 m
364 622 011 3.0 m
364 622 021 6.0 m
A
B
C

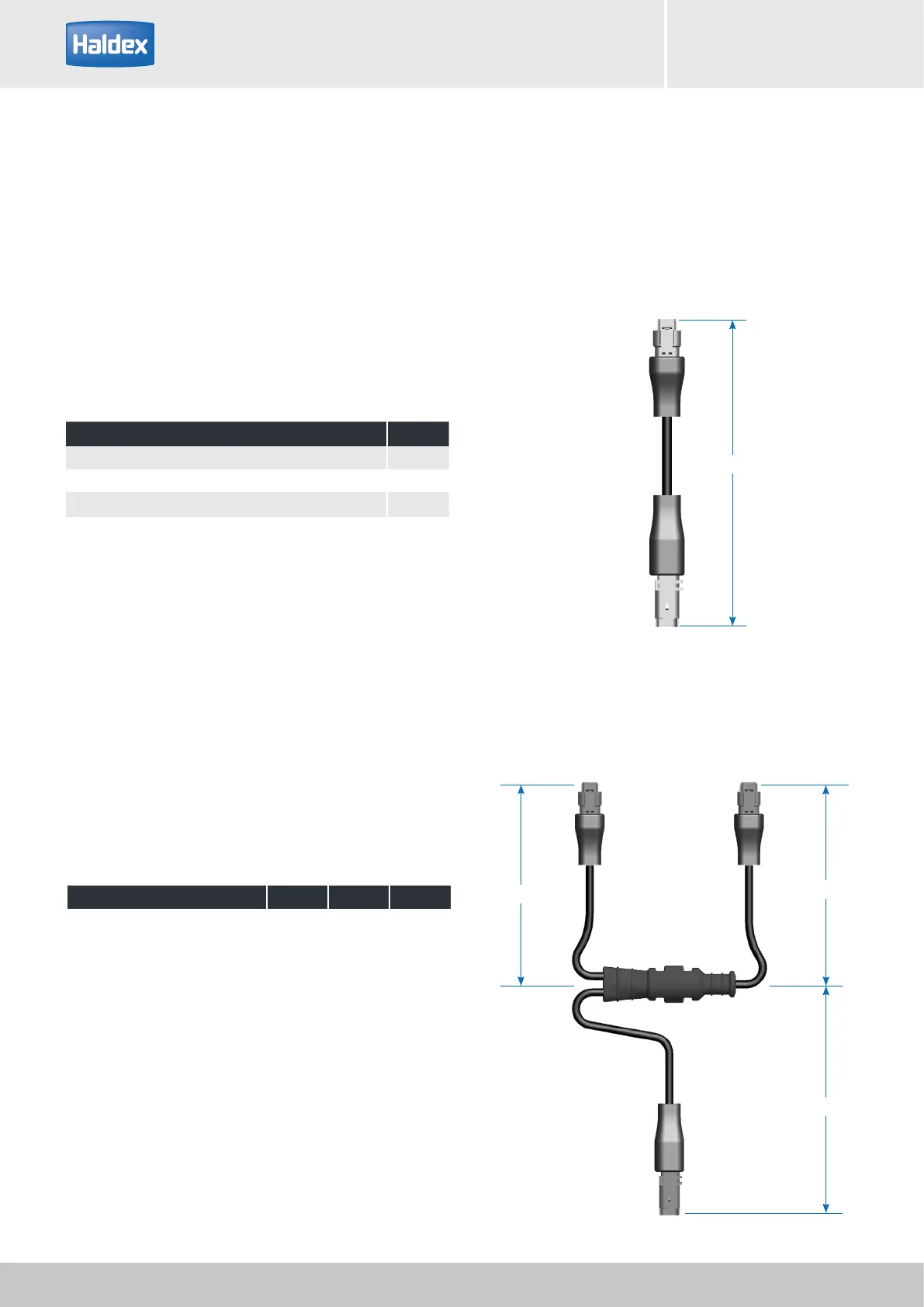

Sensor splitter cable
Y cable to add additional sensors
Sensor extension cable
Cable to increase the sensor distance from the ECU
A
Sensor cables
The EB+ Soft Docking ultrasonic sensor cables can be extended by using a combination of extension and splitter
cables.
Top marking
