EB+ Soft DockingInstallation guide
45
2020 Innovative Vehicle Solutions
Note: during the function test, the test sample will always be moved perpendicular to the respective sensor axis.
The maximum detectable distance is 2.5 metre from the sensor.

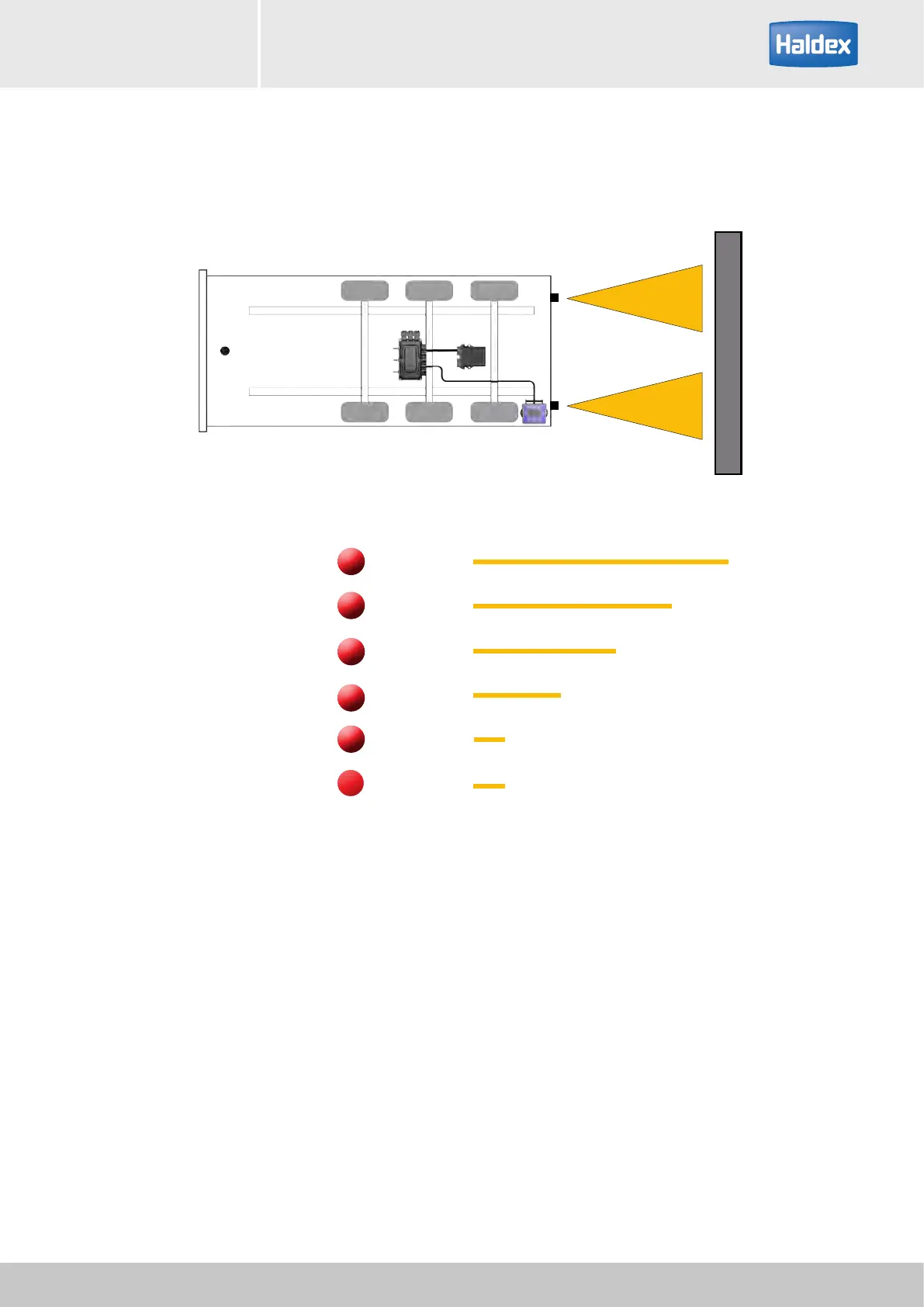

EB+ Soft Docking indication modes
No beep / flashes
3 Beeps per sec (3 Hz) / flashes
5 Beeps per sec (5 Hz) / flashes
EBS applies brakes for 2 seconds
8 Beeps per sec (8 Hz) / flashes
Permanent tone / lamp
> 2.5 metre
2.0 - 2.5 metre
1.0 - 2.0 metre
1.0 metre
0.5 - 1.0 metre
< 0.5 metre
Operating instructions
The complete system is installed into the last third of the trailer. Thus the EB+ Soft Docking is independent of
the truck and also very well suited for changes of the truck and trailer combination. Engage the reverse gear to
activate the system.
Sensors indicate the minimum distance to an obstacle to the system electronics. Depending on the distance to an
object, the system electronics will give out a warning signal (from the reversing alarm and LED outline marker),
which varies dependent to the object distance.
At a 2.5 metre distance, the driver receives optical and audio warnings. If the rear of the vehicle comes within
1 metre, the system applies the brakes with a force automatically adjusted for the speed of the vehicle and the
weight of the load.
