Haldex EB+ Soft Docking - Chassis Components

EB+ Soft DockingInstallation guide
5
2020 Innovative Vehicle Solutions

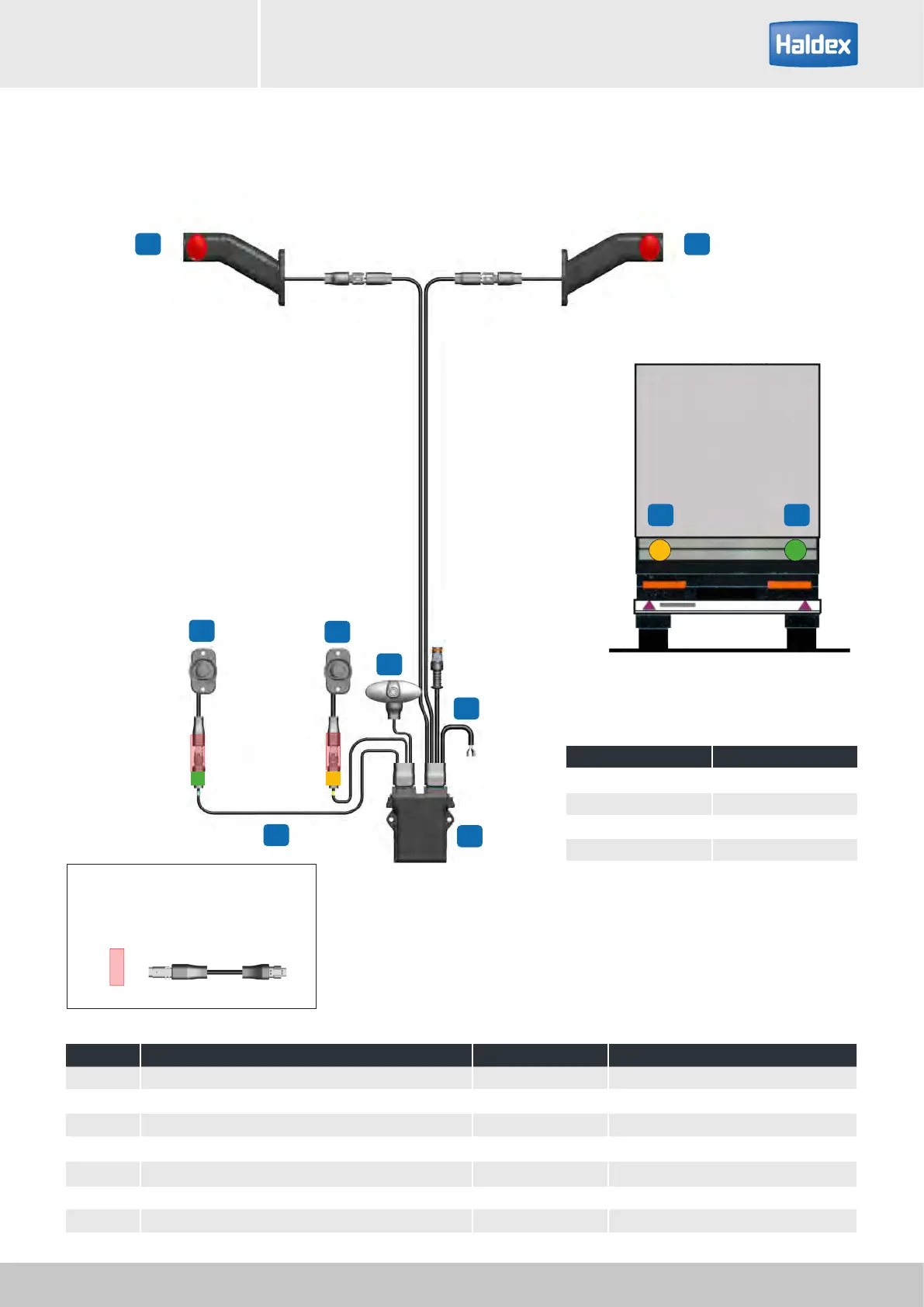

Chassis components
2 sensors (1 plane, 1 offset)
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6 Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
3 4
5
1
2
6
7-2
7-1
Yellow sensor
channel
Green sensor
channel
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=
7-1 7-2
Cables colour Function
Grey Reverse light
White Earth / common
Black Left tail light
Brown Right tail light
Cable connections for item no.2
