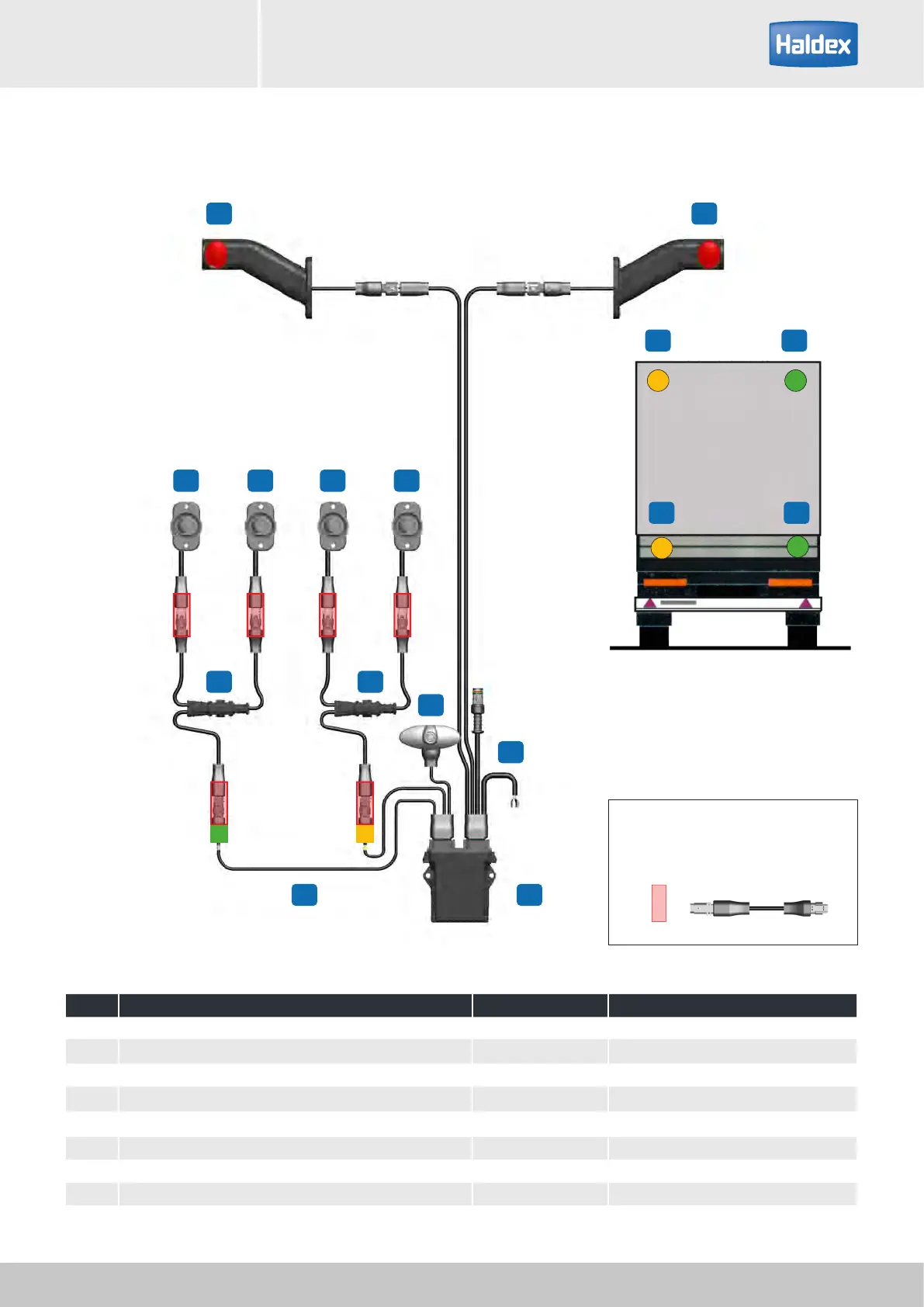

Haldex EB+ Soft Docking - Component Layout: 4 Sensors (2 Planes, 1 Offset)

EB+ Soft DockingInstallation guide
9
2020 Innovative Vehicle Solutions
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6 Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8 Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
3 4
7-37-4
7-1
7-1
6
2
7-4
8
7-2
5 1
7-3
8
7-2
Yellow sensor
channel
Green sensor
channel
4 sensors (2 planes, 1 offset)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=
