E4 - Repair C-450/C-625 Charger Contact Strips
Use extreme caution when performing internal servicing on the lift.
Ensure that the battery has been disconnected before starting.
1. Ensure that the RED battery lead has been disconnected.
2. Remove 4x 4-40 screws in charger block on trolley to detach the charger strips.

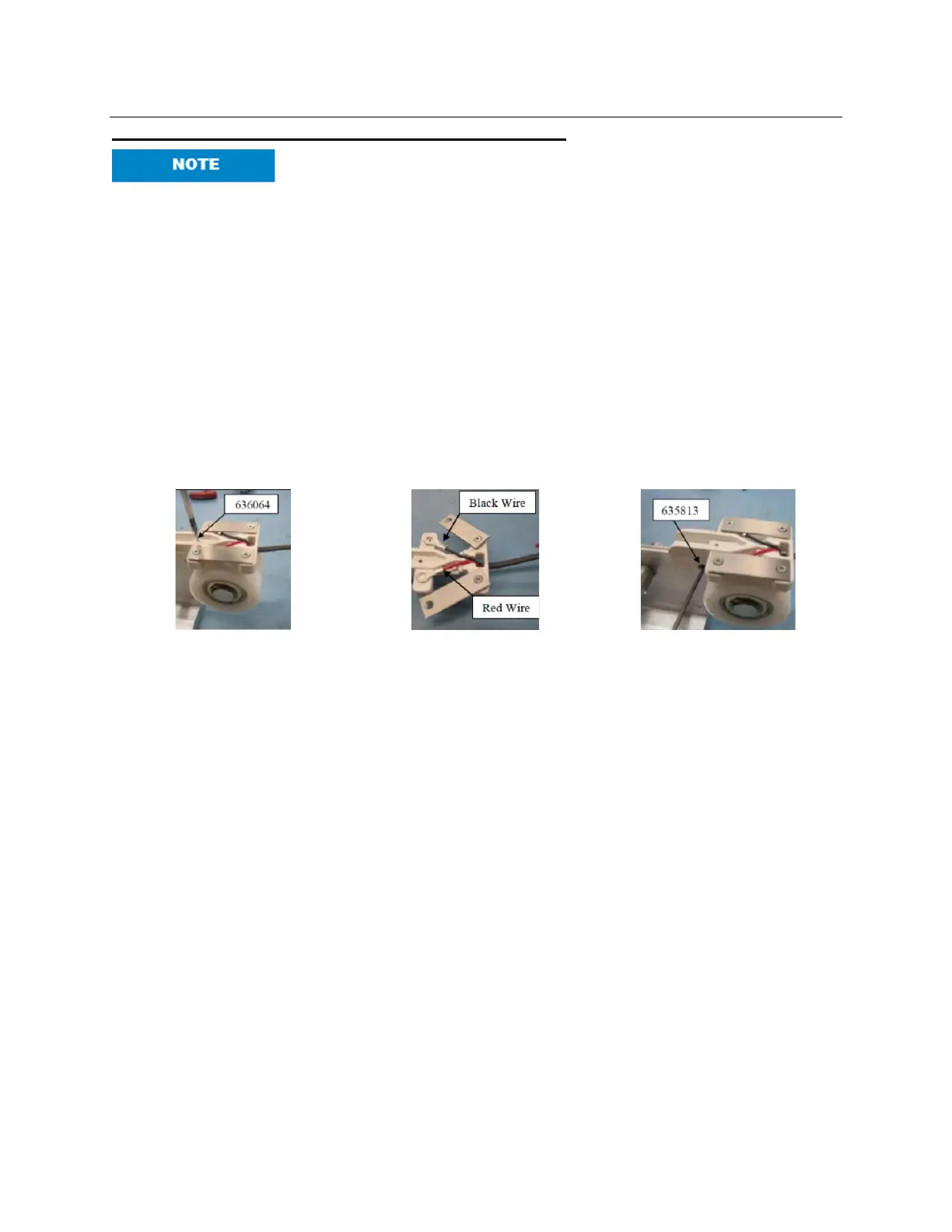

3. Attach the stainless-steel strips. Ensure that the ring terminals on the wire harness are
centered under the screw holes. The polarity of the RED and BLACK wires is critical.
4. If the Wire Harness requires replacement, cut cable tie and remove.
5. Disconnect the charger harness from the PCB and replace with new harness.
6. Reconnect the cable tie and ensure harness does not conflict with movement along the
track.
7. Test system to ensure that charging is occurring.
8. When attaching screws take care not to over tighten screws as you may strip the plastic
thread.
