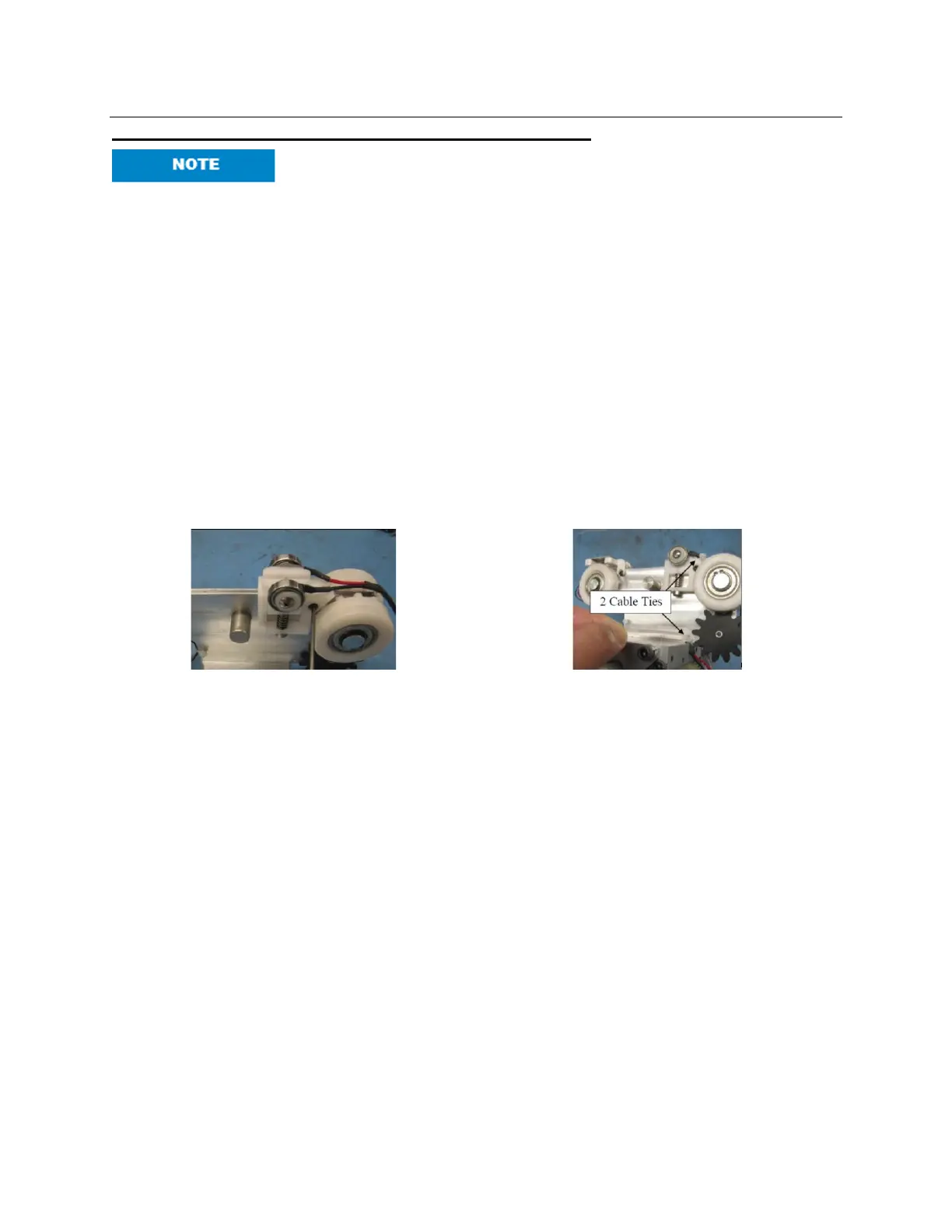

E5 - Repair C800/C1000 Constant Charger System
Use extreme caution when performing internal servicing on the lift.
Ensure that the battery has been disconnected before starting.
1. The bearings and contact strips can become dirty, oily, and corrode in very humid and
acidic environments. The first step to repairing a faulty connection is to wipe the
bearings and contact strip in the track with a clean rag. If problems persist, the following
steps outline how to replace the constant charger system.
2. Ensure that the RED battery lead has been disconnected.
3. Remove the charger block screw and nut that holds the constant charger to the trolley
base.
4. Cut the cable tie that holds the constant charger wire to the trolley base.
5. Unplug the constant charger cable to the circuit board.
6. Remove the constant charger unit and replace with a new unit.
7. Reconnect the charger block screw, cable tie, and cable to the circuit board. Ensure that
the wire does not conflict with the wheels or any movement along the track.
8. Test system to ensure that charging is occurring.
