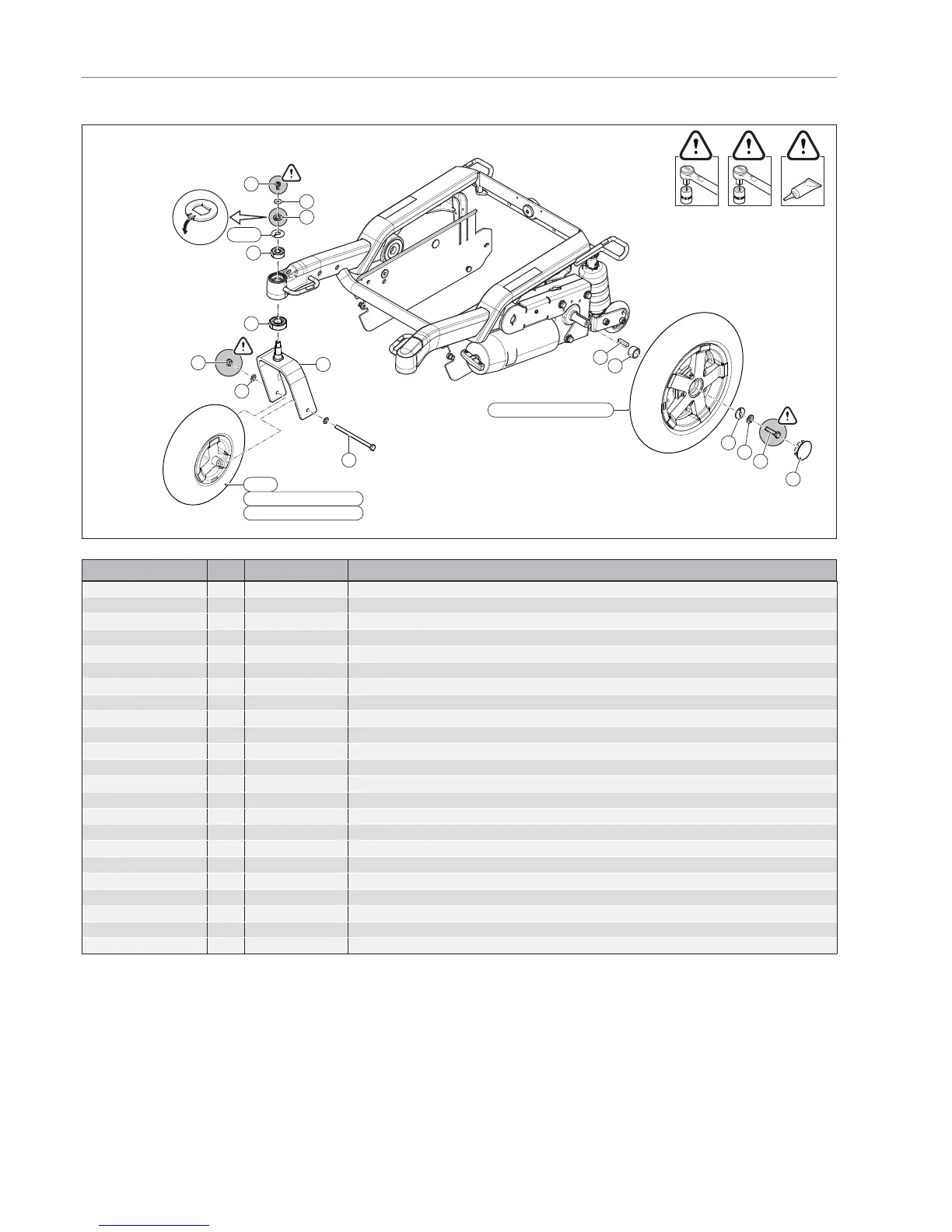

Pos Qty Article number Description
A
Loctite 243
C
7Nm
B
25Nm
A
B,C
A
18
19
10
20
21
22
1
5
8
6
9
3
7
2
23, 24, 25, 26, 27, 28, 29
11, 12
4a, 4b
30
13a, 14a, 15a, 16a, 17a
13b, 14b, 15b, 16b, 17b
1-3,4a,5,6 2 9005934 Anti shimmy + bearings, set, HC
1-3,4b,5,6 2 9008818 Anti shimmy XT + bearings, set, HC
7-10 2 9005932 Castor fork, HC
8-11 2 1016998 Castor wheel indoor 2.80/2.50-4, air, HC
8-10,12 2 1016999 Castor wheel indoor 2.80/2.50-4, punctureproof, HC
8-10,13a 1 1017000 Castor wheel outdoor, 3.00-4, grey air, right, HC
8-10,13b 1 1017001 Castor wheel outdoor 3.00-4, grey air, left, HC
8-10,14a 1 1017002 Castor wheel outdoor, 3.00-4, grey punctureproof, right, HC
8-10,14b 1 1017003 Castor wheel outdoor, 3.00-4, grey punctureproof, left, HC
8-10,15a 1 1017044 Castor wheel silver-grey outdoor 3.00-4, grey puntureproof, All Weather, right, HC
8-10,15b 1 1017045 Castor wheel silver-grey outdoor 3.00-4, grey puntureproof, All Weather, left, HC
8-10,16a 1 1017004 Castor wheel outdoor 3.00-4, black air, right, HC
8-10,16b 1 1017005 Castor wheel outdoor 3.00-4, black air, left, HC
8-10,17a 1 1017006 Castor wheel outdoor 3.00-4, black punctureproof, right, HC
8-10,17b 1 1017007 Castor wheel outdoor 3.00-4, black punctureproof, left, HC
18-22 2 9006008 Drive wheel mounting, set, HC
18,20-23,30 2 1017008 Drive wheel indoor 12 1/2 x 2 1/4, air, HC
18,20-22,24,30 2 1017009 Drive wheel indoor 12 1/2 x 2 1/4, punctureproof, HC
18-22,25,30 2 1017010 Drive wheel outdoor 3.00-8, grey air, HC
18-22,26,30 2 1017011 Drive wheel outdoor 3.00-8, grey punctureproof, HC
18-22,27,30 2 1017046 Drive wheel silver-grey outdoor 3.00-8, grey puntureproof, All Weather, HC
18-22,28,30 2 1017012 Drive wheel outdoor 3.00-8, black air, HC
18-22,29,30 2 1017013 Drive wheel outdoor 3.00-8, black punctureproof, HC
