Puma 20/40 Service instructions | 41

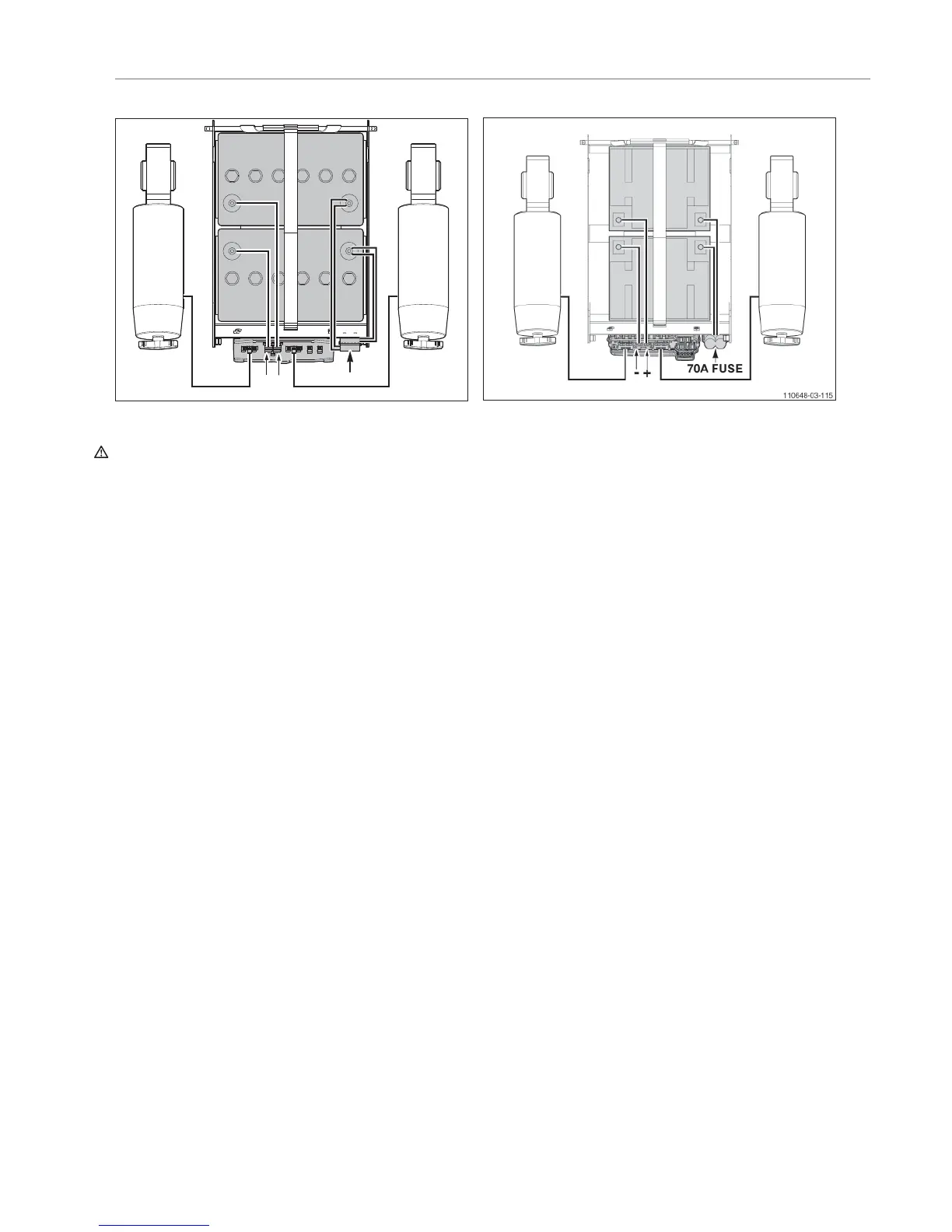

DX2 VR-2
1 x 100A FUSE
-
+
• Make sure that the batteries are always well charged.
• Do not use the wheelchair if the batteries are almost fl at. This may damage the batteries and you run the risk of an unintended
standstill.
• The use of ‘wet’ batteries is not permitted. If the batteries have to be replaced, use only dry batteries.
5.2 Assembly, replacement and adjustment instructions
This chapter covers illustrated assembly, replacement and adjustment instructions.
Every separate visual instruction is prefaced with:
• Preparation instructions
• Relevant article numbers
• Tools used
• Info (suggestions and advice to help you carry out tasks or procedures more easily)
• Notices (extra notes covering information you need when executing the specifi c task)
In the visual instructions illustrate the tools needed for the specifi c task.
5.2.1 Replacing Puma 20 motors
All types of motors on Puma 20 wheelchairs are gradually replaced with motors which have a higher rpm and therefore require
a lower voltage. This has a positive effect on maintaining the wheelchairs maximum driving speed which tends to diminish as
battery levels fall. Puma 20 motors delivered as spare part also have the new specifi cations. When replacing Puma 20 motors,
please note the following:
• New and old motors on the same wheelchair are not compatible. Replace both motors if the motor that needs replacement has
one of the following article numbers (the article number can be found on the ID plate): 9004277, 9004278, 9004279, 9004280,
9004281, 9004282, 9004283, 9004284
• Re-program the controller with the latest drive settings, after replacement. Drive-programs can be obtained through Handicare
Customer Service +31 (0)492 593 888
Following Voltage and Speed settings must be set:
• DX2 Maximum motor Volts (V) = 22 Speed demand scalar = 95
• Shark Maximum motor Volts (V) = 22 Maximum forward speed (%) = 95
• RNET Output Voltage (V) = 22 Maximum forward speed (%) = 95 (in last drive profi le)
• VR2 Output Voltage (dV) = 220 Maximum forward speed (%) = 95
• In case of problems and/or questions contact Handicare Customer Service / Technical Support
