Handicare PUMA 40 - Replacing the Anti-Tip Wheels and Bracket

Puma 20/4086 | Service instructions
Replacing the anti-tip wheels and bracket
Preparation
Switch off the wheelchair via the remote control.
Instructions

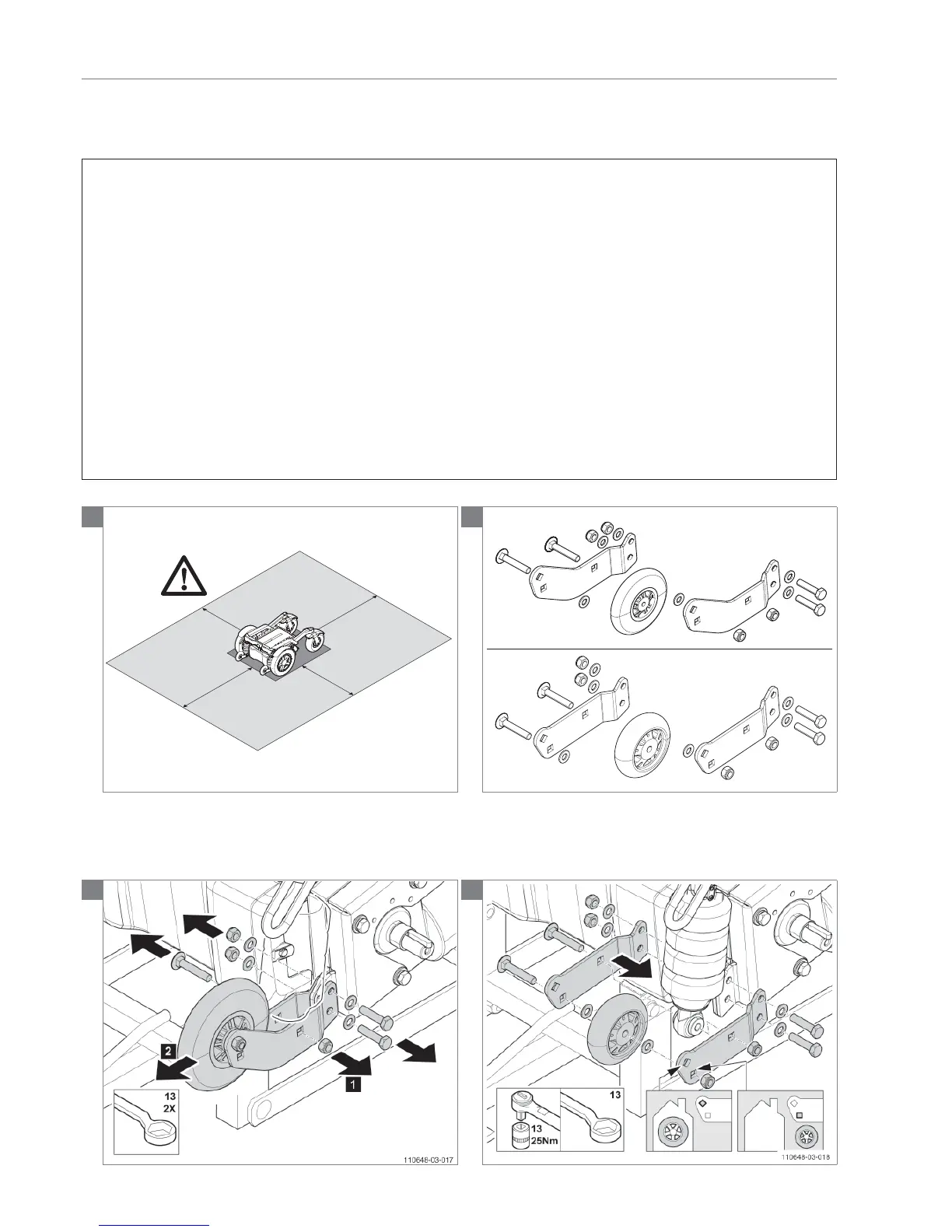

Follow the illustrated instructions for mounting the anti-tip
wheels and bracket
Relevant article numbers
• 9005962 P2040 Anti-Tip RWD Complete Service
• 9005963 P2040 Anti-Tip FWD Complete Service
Tools used
• Open ended or ring spanners, 13 mm, 2x
• Torque wrench, socket, 13 mm
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648 03 001
2
RWD
FWD
3
Note! Replace the anti-tip wheels and brackets!
4
Note! Use top mounting holes for Indoor anti-tip wheel!
Note! Use bottom mounting holes for Outdoor anti-tip wheel!
Note! Tighten the bolts of the anti-tip wheels and brackets with 25 Nm!
