Puma 20/4060 | Service instructions
Replacing the tube and/or tyre of a drive wheel, indoor/outdoor
Preparation
• Be sure that the freewheel switch is in ‘drive’ mode. If
the freewheel switch is in ‘push’ mode this will make
loosening the bolts impossible.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• The following operations are required to replace the tube
and/or tyre of the driving wheel:
• Remove the wheel from the axle. (See instruction:
Replacing the drive wheel, indoor/outdoor)
• Defl ate the tyre (not necessary for replacing the complete
drive wheel!).
• Loosen all Allen bolts and remove the front of the rim half.
• Remove the tyre and the tube, replace a new tube and/
or tyre.
• Replace the tyre and tube on the rim half.
• Mount the front of the rim half.
• Replace the drive wheel on the axle.
• Infl ate the tube to the correct pressure. (See: ‘Technical
specifi cations’)
Notice
• Use a
lifting device to raise the wheelchair / Puma 20/40
carrier.
• Infl ate the tube to the correct pressure! (See ‘Technical
specifi cations’)
Relevant article numbers
Puma 20
• 00000.1703 Lock nut M10 P20
Puma 40
• 9002600 Drive wheel bolt and ring P40
Tools used
• Lifting device
• Screwdriver
• Hammer (plastic)
• Torque wrench, socket, 13 mm
• Allen key, 6 mm

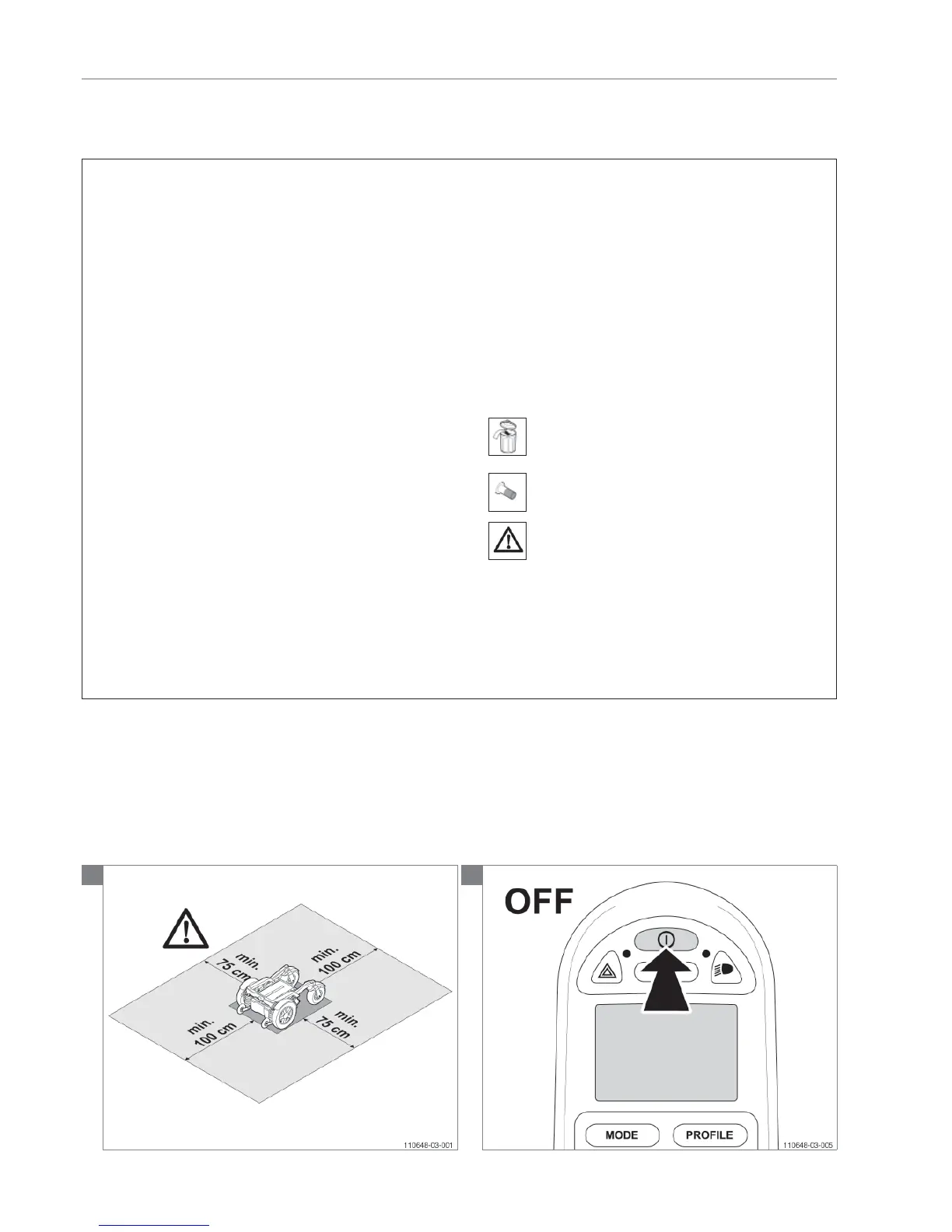

Icons
•
Dispose of waste parts in accordance with local
regulations
•
Bolts are provided with Loctite thread locker!
• Note! Be aware of the issue!
1
Note! Suitable work area required!
2
