Puma 20/4084 | Service instructions
Replacing the coloured covers (only Puma 40)
Ball head cover / Deco ring motor arm / Deco strip suspension bridge cover

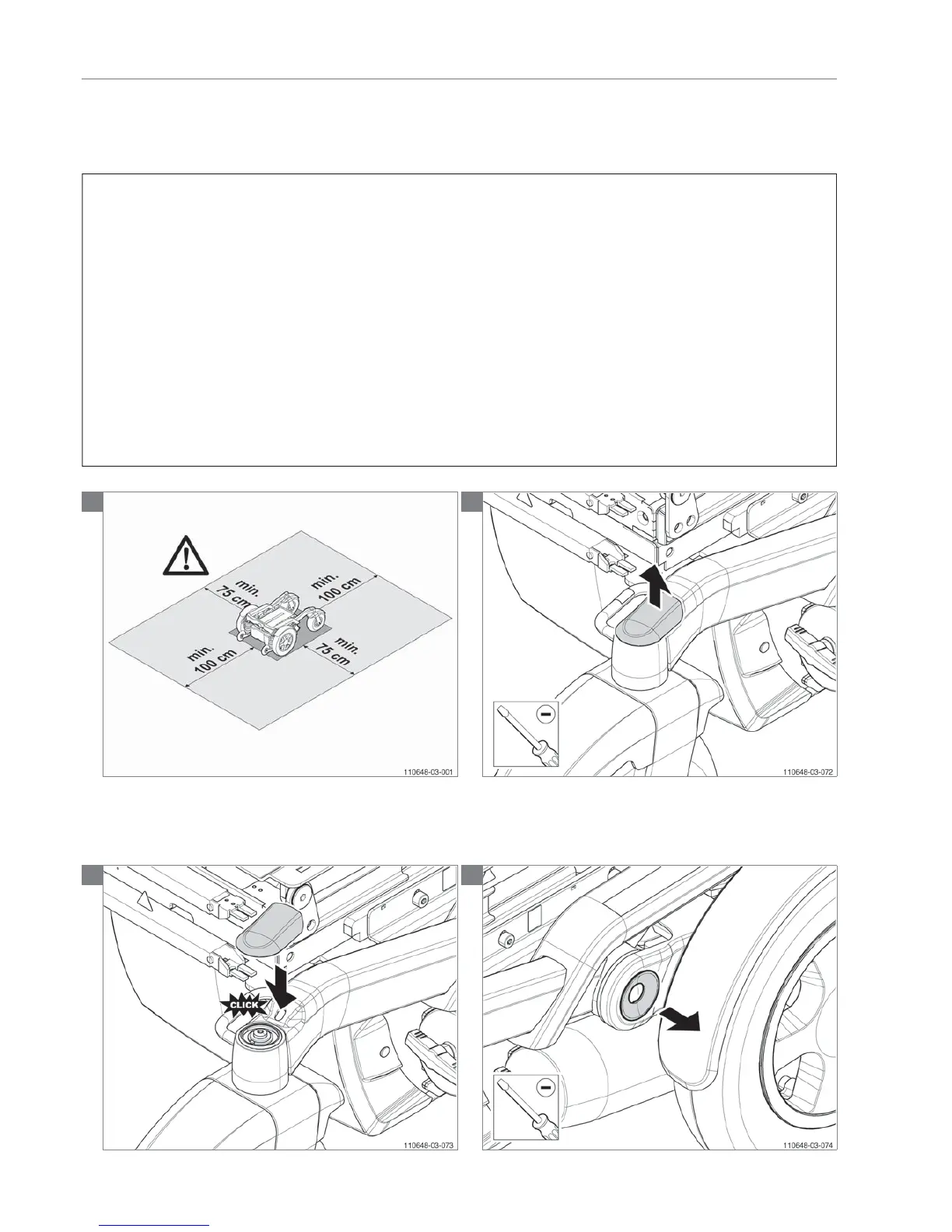

Preparation
Switch off the wheelchair via the remote control.
Instructions
The following operations are required to replace the three
cover sets.
Ball head cover set:
• Take away the old cover and click back the new cover.
Deco ring motor arm set:
• Take away the old cover and click back the new cover.
Deco strip under the suspension bridge cover:
• Take away the old cover
• Click the new cover with turning movement back under
the suspension bridge cover.
Notice
Use a screwdriver in case you can’t get off the covers by
hand.
Relevant article numbers
9005982 Deco covers green
9005983 Deco covers blue
9005984 Deco covers orange
9005985 Deco covers silver
Tools used
• Screwdriver
Icons
• N.a.
1
Note! Suitable work area required!
2
3
4
