Puma 20/40 Service instructions | 97
Adjusting the electrical seat tilt 0 - 45°, the minimum tilt angle (0 – 9°)
With this adjustment the minimum / down limit angle of the
tilt can be set.
On the left rear corner of the tilt module a limit switch is
placed which stops the downward movement. This switch
is triggered by a set screw which moves past. Standard it
is adjusted to stop at 0 degrees. The angle at which the
switch is triggered can be adjusted by turning the set screw.
The more the screw is turned inwards (clockwise), the
earlier the switch is triggered, and the bigger the angle will
be at which the tilt stops.
Preparation
• Switch on the wheelchair via the remote control.
Instructions
The following operations are required to adjust the
minimum angle:
• Tilt the seat backwards about 10 degrees
• Turn the set screw with use of a size 2 Allen key (a
quarter turn equals approx. 1 degree).
• Turning it clockwise will result in a bigger down limit
angle
• Turning it counterclockwise will result in a smaller
down limit angle
• Carefully tilt the seat forward until it stops, and check if
the resulting angle is as desired
Notice
• Minimum angle adjustments of greater than 9 degrees
are not recommended. This is the angle at which the
inhibit switch is activated (for safety reasons), and drive
speed is automatically limited.
Relevant article numbers
• 9006021 Electrical tilt 45°
• 9006020 Electrical lift with electrical tilt 45°
Tools used
• Allen key, size 2 mm

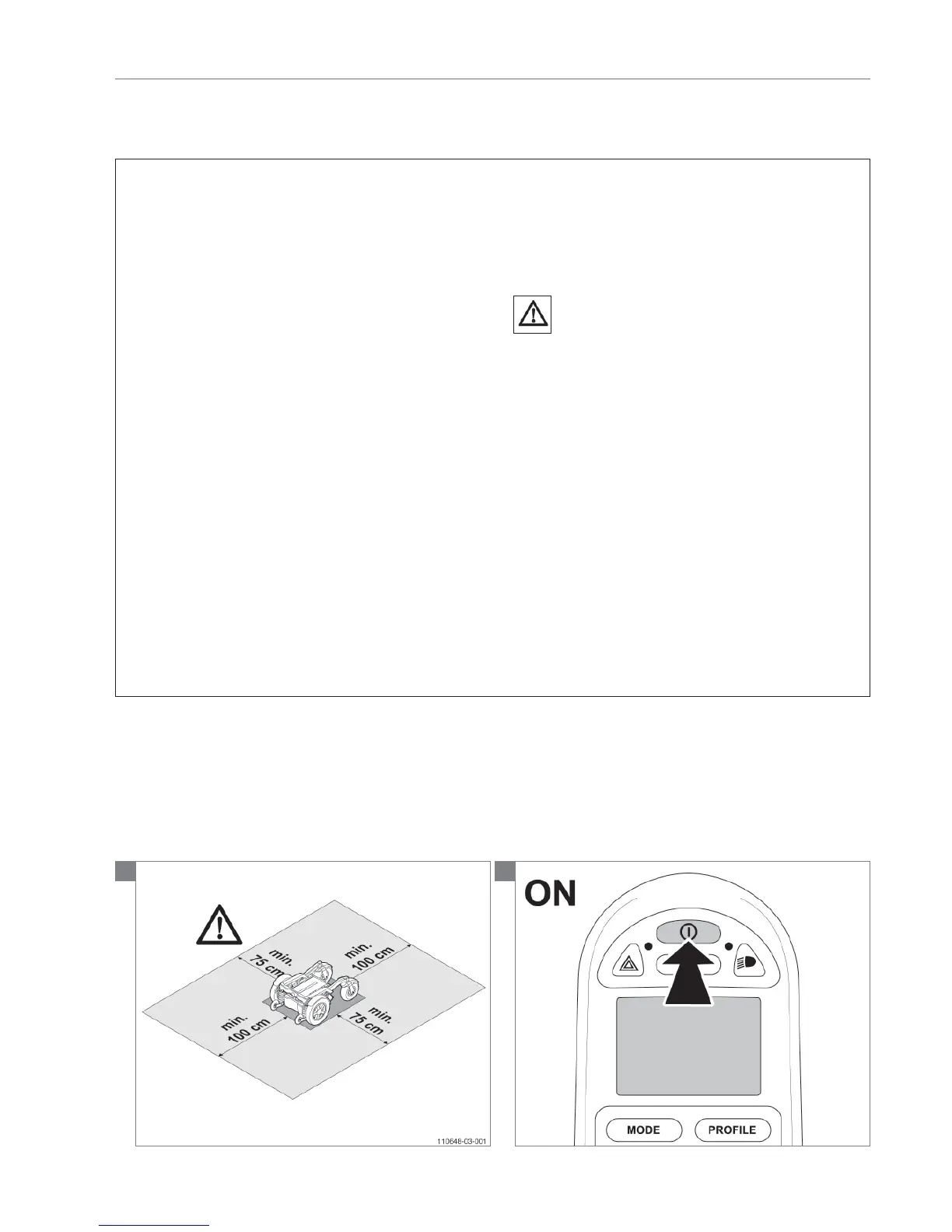

Icons
Note! Be aware of the issue!
1
Note! Suitable work area required!
2
