Puma 20/4096 | Service instructions

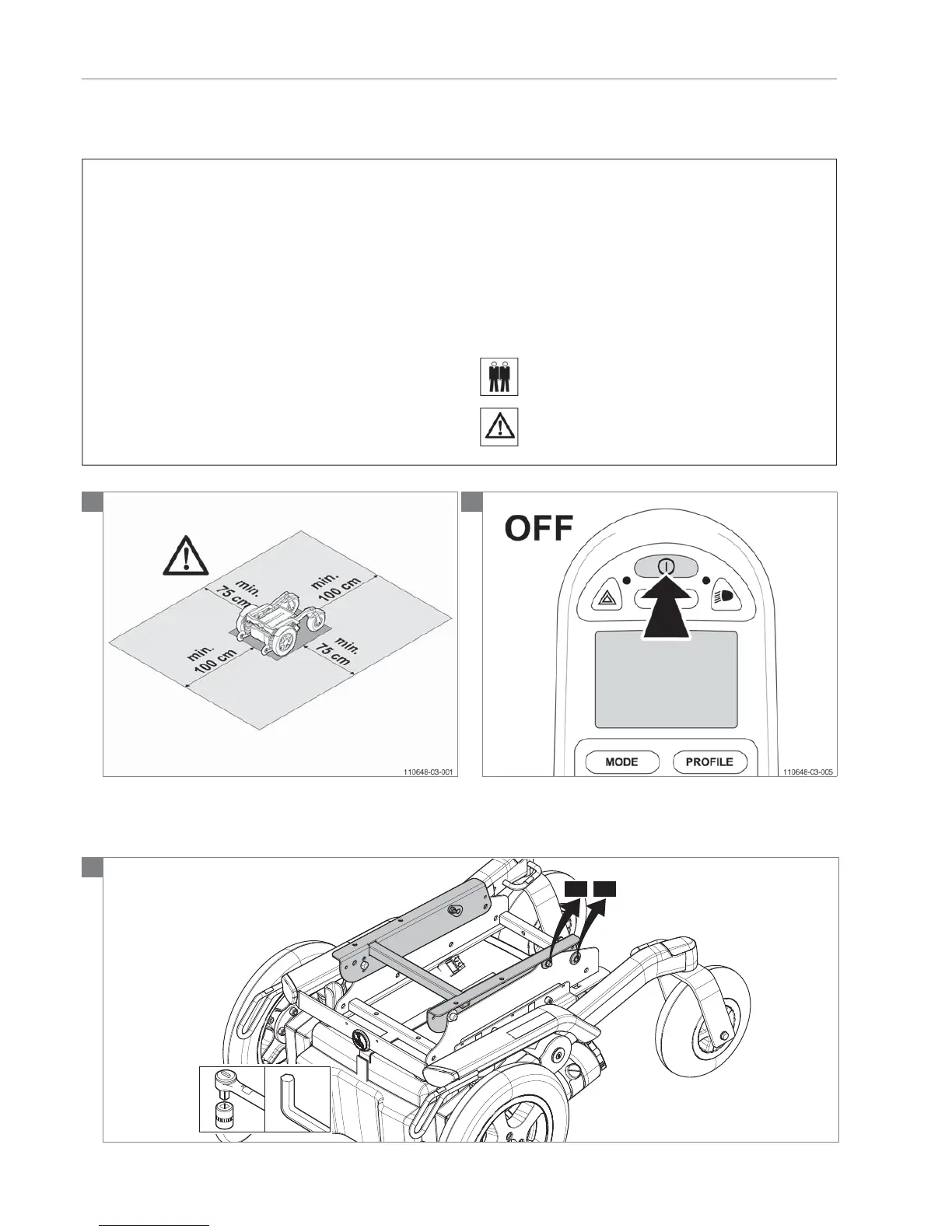

Adjusting the electrical seat tilt 0 - 25°
Preparation
• Switch off the wheelchair via the remote control.
Instructions
The following operations are required to adjust the
mechanical seat tilt:
• Remove the entire seating unit from the carrier. Two
people are needed to carry out this operation.
(See instruction: Converting Puma 20/40 front wheel
drive (FWD) to rear wheel drive (RWD), Step 2 Remove
interface and seating.)
• Loosen the 2 bolts of hinge 1 or hinge 2 in the interface
frame.
• Move the upper part of the interface in the desired
position (hinge point 1 (hp1): 0 - 25°, hinge point 2 (hp2):
0 - 20°).
• Tighten the 2 bolts.
• Replace the seat on the interface.
Notice
• Changing back the wheelchair's tilt position from 20° to
25° may negatively infl uence the wheelchair's driving
characteristics.
Relevant article numbers
• 9006017 Electrical tilt 25°
Tools used
• Open ended or ring spanner 10 mm
Icons
Action must be carried out by two persons!
Note! Be aware of the issue!
1
Note! Suitable work area required!
2
3
6
13
25Nm
hp1 hp2
110648-03-095
Caution! Changing the wheelchair’s tilt position may negatively infl uence the wheelchair’s driving characteristics! Please read the
user manual!
