Puma 20/4092 | Service instructions
Adjusting the centre point of gravity
Preparation
• Switch off the wheelchair via the remote control.
Instructions
The following operations are required to adjust the centre
of gravity:
• Remove the leg rests.
• Loosen the 4 bolts.
• Move the whole chair unit to the correct position.
• Remount the 4 bolts.
• Replace the leg rests.
Notice
• Changing the wheelchair’s centre of gravity may
negatively infl uence the wheelchair's driving
characteristics and/or its dynamic stability! Therefore it
might be sensible to use the RWD hole for a FWD and
vice versa
Relevant article numbers
• 9002592 M8x12 CKS BZK PRECOTE 85
• 00000.2003 Locking ring, fl at M8
Tools used
• Allen key, 6 mm
Icons
•
Dispose of waste parts in accordance with local
regulations.
•

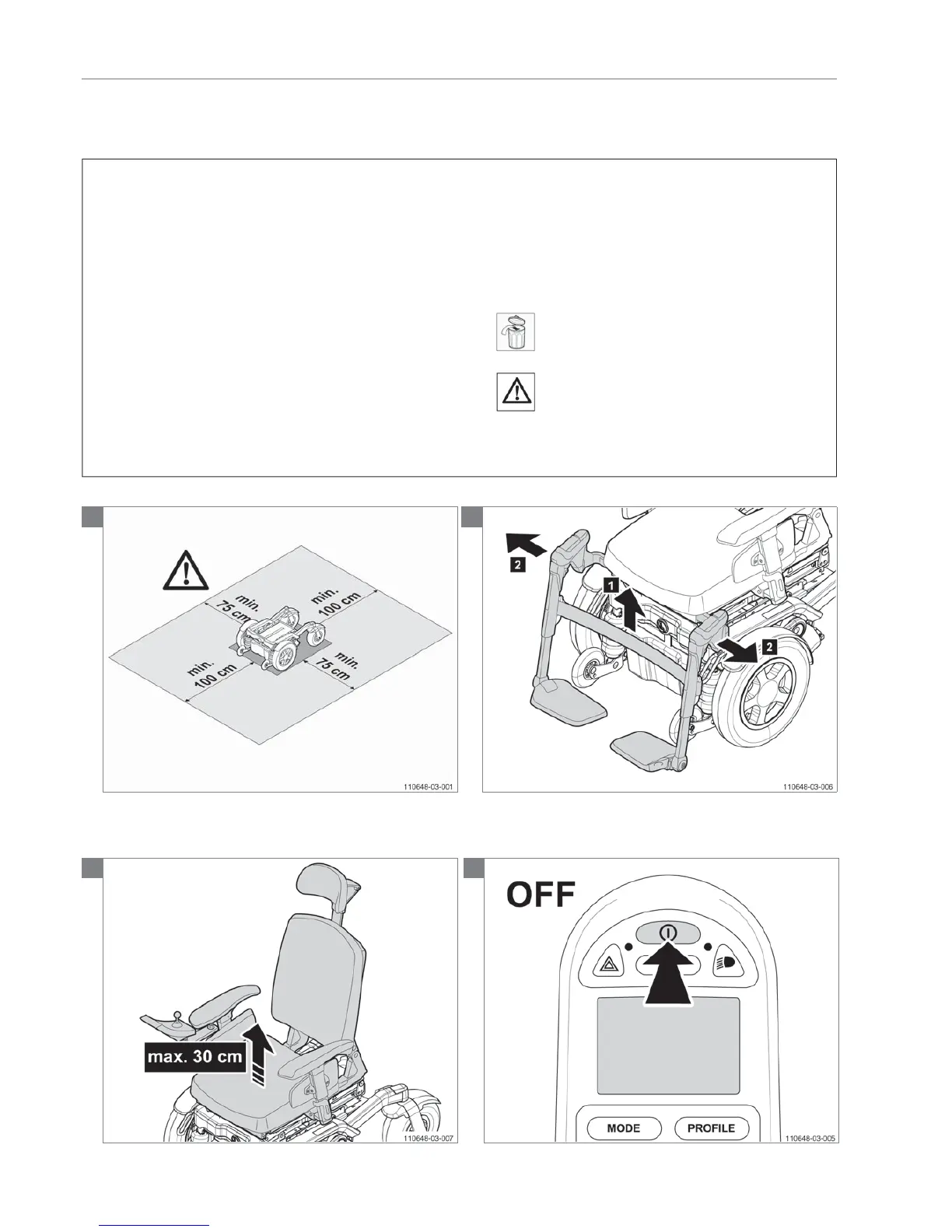

Note! Be aware of the issue!
1
Note! Suitable work area required!
2
3
Note! Lift the chair in case the wheel chair has an electrical lift.
4
