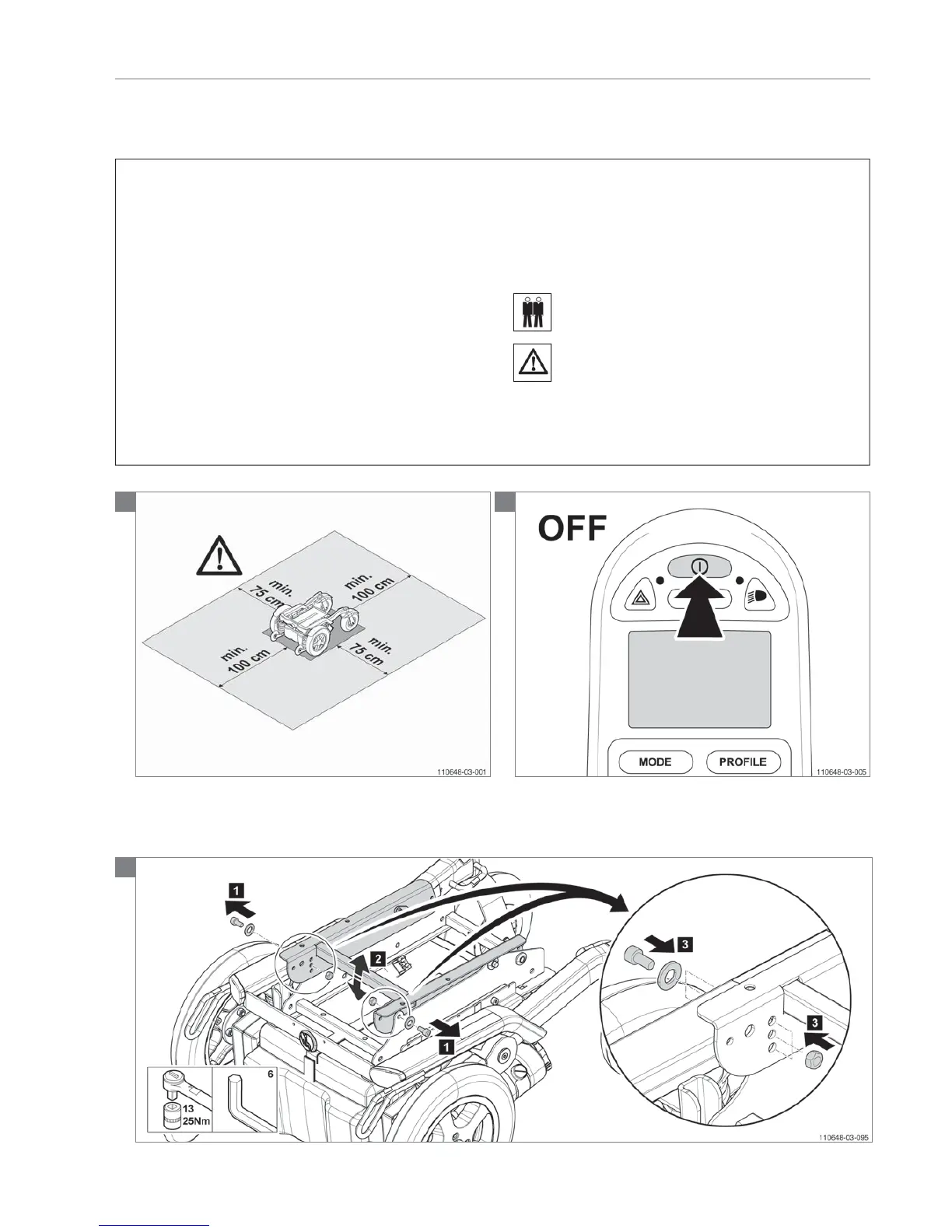

Adjusting the mechanical seat tilt
Preparation
• Switch off the wheelchair via the remote control.
Instructions
The following operations are required to adjust the
mechanical seat tilt:
• Remove the entire seating unit from the carrier. Two
people are needed to carry out this operation.
(See instruction: Converting Puma 20/40 front wheel
drive (FWD) to rear wheel drive (RWD), Step 2 Remove
interface and seating.)
• Loosen the 2 bolts in the interface frame.
• Move the upper part of the interface in the desired
position (two other positions possible!).
• Tighten the 2 bolts.
• Replace the seat on the interface.
Relevant article numbers
• 9006016 Mechanical tilt
Tools used
• Torque wrench, socket, 13 mm
• Allen key, 6 mm
Icons
Action must be carried out by two persons!
Note! Be aware of the issue!
1
Note! Suitable work area required!
2
3
Caution! Changing the wheelchair’s tilt position may negatively infl uence the wheelchair’s driving characteristics! Please read the
user manual!
