Handicare PUMA 40 - 4.4 Wiring and modules R-net

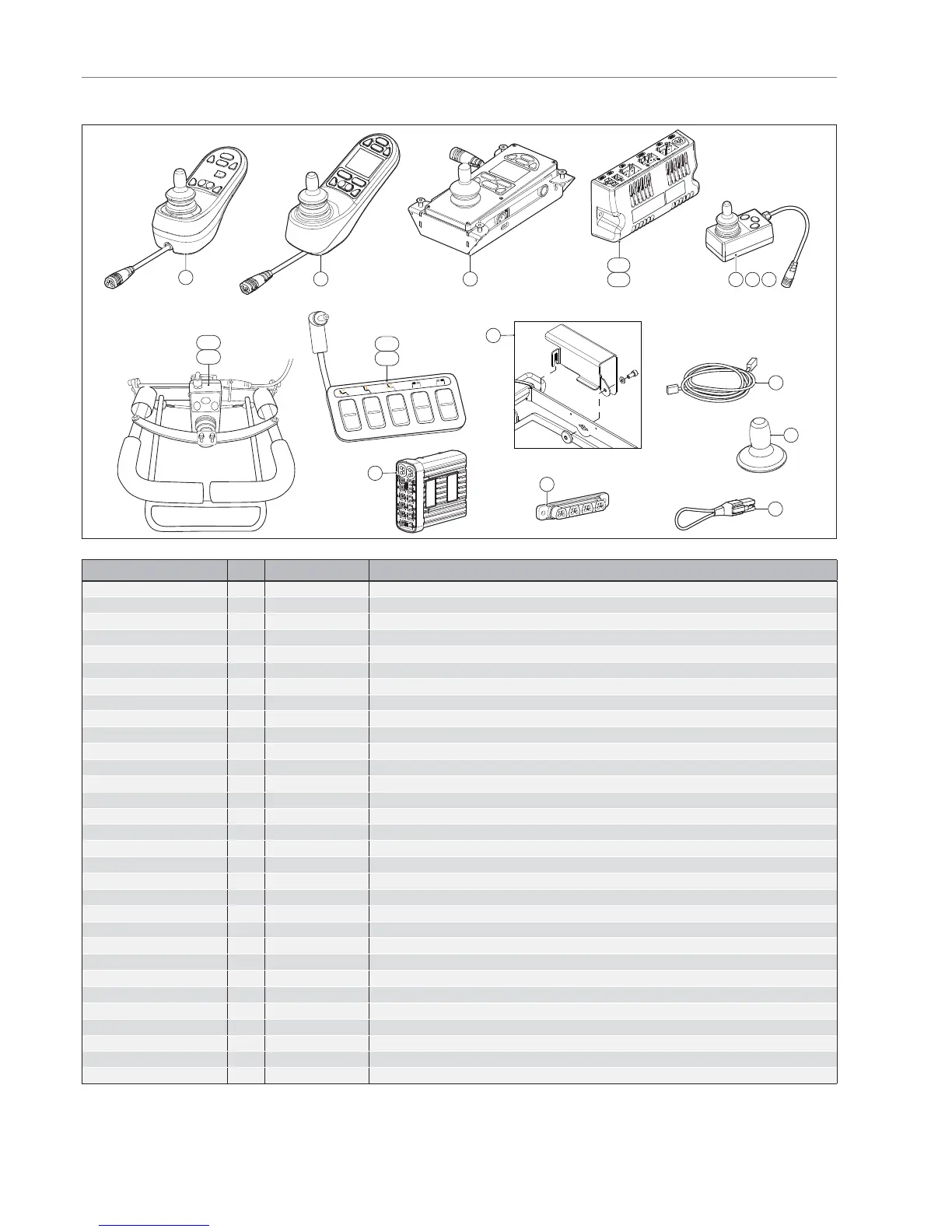

Pos Qty Article number Description
32 | Spare parts
Puma 20/40
1
2 3
5 6 7
10
12
9a
9b
4a
4b
8a
8b
11
13
14
15
1 1 9007156 R-net Joystick Module Lights JSM LED-L service
2 1 9002910 R-net Joystick Module Colour CJSM-L-sw service
3 1 9007165 R-net Joystick Module Colour CJSM-L-sw Worktop service
4a 1 9002918 R-net Power Module 120A service
4b 1 9007158 R-net Power Module 90A service
5 1 9006030 R-net Dual Attendant Module service
6 1 9006034 R-net Dual Attendant Module + bracket service
7 1 1017113 R-net Attendant steering incl. mounting set for EasyFit
8a 1 1017027 R-net Z-steer incl. mounting set for EasyFit
8b 1 1017034 R-net Z-steer incl. mounting set for Sedeo Pro+
9a 1 1016968 R-net direct access keypad joystick side, set
9b 1 1016969 R-net direct access keypad not joystick side, set
10 1 9002912 R-net Seating/Lighting Module ISM-6L (6Act+Lights) service
11 1 1017230 Bracket for R-net ISM module on Puma 20 frame icw EasyFit
12 1 9006238 R-net 4-way Connector Block service
13 1 9002480 R-net extension cable 1.0m
13 1 9002482 R-net Cable 2.0m
13 1 9002484 R-net Cable 1.5m
13 1 9002579 R-net Cable 0.5m
13 1 9006319 P2040 PGDT Cable Act 500mm
13 1 9006320 P2040 PGDT Cable Act 1050mm
13 1 9006323 P2040 PGDT Cable Tilt45 950mm
13 1 9006330 P2040 PGDT Cable Lift 1520mm
13 1 9006331 P2040 R-net Cable Light
13 1 9006332 P2040 R-net Cable Light+Horn
13 1 9006228 PGDT Battery Cable
13 1 9006230 Fuse Cable 100A
13 1 9006229 Fuse Cable 70A
14 1 1010114 R-net/VR2 joystick knob
15 1 9006327 P2040 PGDT Cable Inhibit Loop
16 1 9003607 R-net keypad kit full color + tray remote
4.4 Wiring and modules R-net
